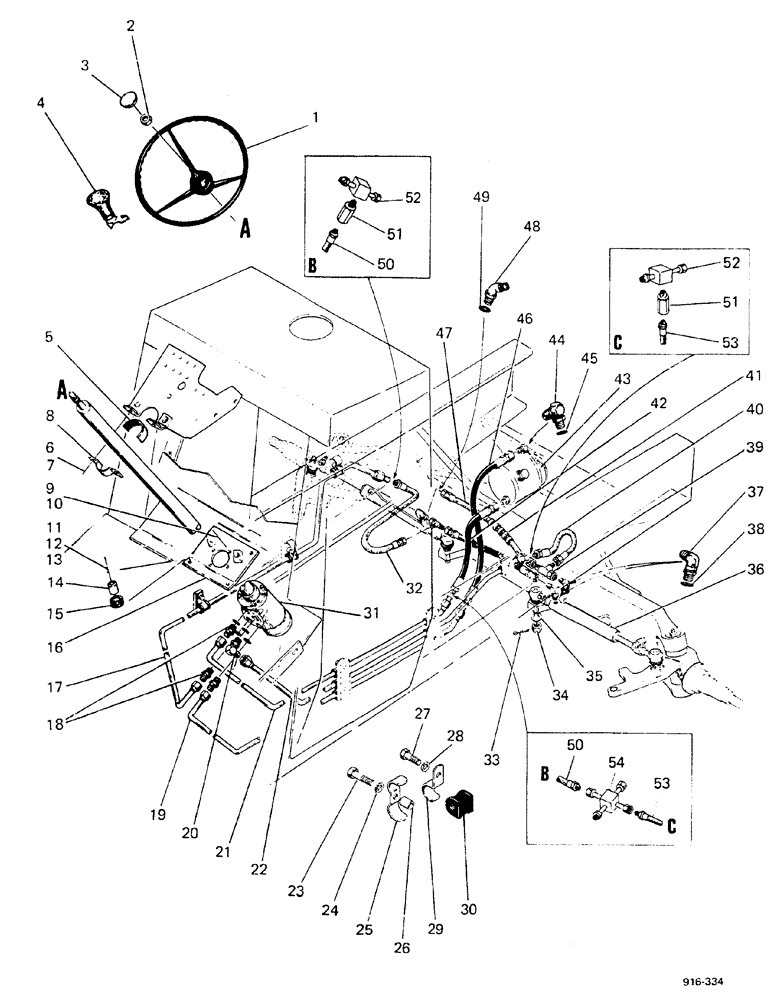

Запчасти Case 580F (138) - POWER STEERING, FOR GERMANY (41) - STEERING

1

E38825

SCREW

1шт.

2

A14567

JAM NUT

1шт.

3

E38474

CAP

1шт.

4

E35132

KNOB

1шт.

5

D66844

PADDING

WRAPPER

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

D66646

CLAMP

STRAP

1шт.

9

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

195-24

WASHER,5/16"

4шт.

14

D73049

BUSHING

4шт.

15

E37561

GROMMET

SPARE PART

4шт.

16

E37559

BRACKET

PLATE

1шт.

17

D76191

TUBE

1шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes O-Ring

3шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

D68897

TUBE

1шт.

20

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes O-Ring

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

D68895

TUBE

SPARE PART

1шт.

22

D76189

TUBE

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

24

92-6

LOCK WASHER,3/8"

5шт.

25

D68646

CLAMP

5шт.

26

D71789

BUSHING

5шт.

27

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

D68638

CLAMP

3шт.

30

D67296

GROMMET

rubber

10шт.

31

REF

INSTRUCTION

PUMP, see Figure 142

1шт.

32

E35744

HOSE

1шт.

33

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

34

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

35

195-2074

WASHER,11/16" x 1 1/4" x .134"

2шт.

36

REF

INSTRUCTION

CYLINDER, see Figure 146

2шт.

37

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg., Includes O-Ring

2шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

40

E35744

HOSE

1шт.

41

K956973

GUARD

2шт.

For 4 wheel drive

1шт.

42

E35143

HOSE

1шт.

43

REF

INSTRUCTION

PUMP, see Figure 140

1шт.

44

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes O-Ring

1шт.

45

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

E35142

HOSE

1шт.

47

E41850

HOSE

up to No. 3.740.846

2шт.

47

E37439

HOSE

starting with No. 3.740.847

2шт.

47

E41850

HOSE

2шт.

For 4 wheel drive

1шт.

48

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg.

2шт.

48

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg.

1шт.

For 4 wheel drive

1шт.

48

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

For 4 wheel drive

1шт.

49

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

50

E34983

HOSE

SPARE PART

1шт.

51

E34982

VALVE

CONNECTOR

2шт.

52

E34798

CONNECTOR, ELEC

CONNECTOR

2шт.

53

E34984

HOSE

1шт.

54

E34797

CONNECTOR, ELEC

CONNECTOR

1шт.

49

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

For 4 wheel drive

1шт.
