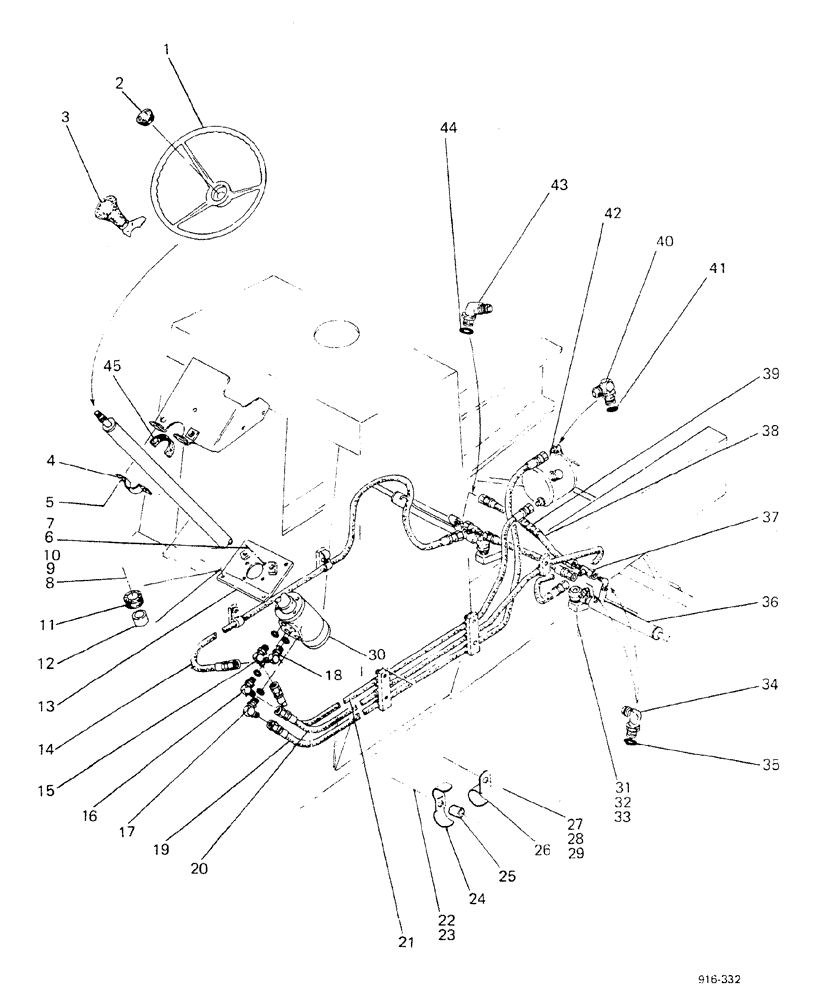

Запчасти Case 580F (136) - POWER STEERING (41) - STEERING

1

E38825

SCREW

1шт.

2

E38474

CAP

1шт.

3

E35132

KNOB

1шт.

4

D66646

CLAMP

STRAP

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

16-622

TAPERED BEARING

SCREW

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

195-24

WASHER,5/16"

4шт.

11

E37561

GROMMET

SPARE PART

4шт.

12

D73049

BUSHING

4шт.

13

E37559

BRACKET

PLATE

1шт.

14

E36963

HOSE

order E42820

1шт.

14

E42820

HOSE

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes O-Ring

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

19

E36905

HOSE

order E42819

1шт.

19

E42819

HOSE

1шт.

20

E36963

HOSE

order E42820

1шт.

20

E42820

HOSE

1шт.

21

E36906

HOSE

SPARE PART

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

D68646

CLAMP

4шт.

25

D71789

BUSHING

4шт.

26

D68638

CLAMP

3шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

For 4 wheel drive

1шт.

29

92-6

LOCK WASHER,3/8"

3шт.

30

REF

INSTRUCTION

PUMP, see Figure 142

1шт.

31

195-2074

WASHER,11/16" x 1 1/4" x .134"

2шт.

32

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

33

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

34

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg., Includes O-Ring

2шт.

35

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

REF

INSTRUCTION

CYLINDER, see Figure 146

2шт.

37

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

38

E37439

HOSE

2шт.

38

E37439

HOSE

up to No. 3.740.069

2шт.

For 4 wheel drive

1шт.

38

E41850

HOSE

starting with 3.740.060 and 3.739.787, 3.739.792, 3.739.795, 3.739.800 and 3.739.816

2шт.

For 4 wheel drive

1шт.

39

K956973

GUARD

2шт.

For 4 wheel drive

1шт.

40

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes O-Ring

1шт.

41

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

REF

INSTRUCTION

PUMP, see Figure 140

1шт.

43

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg.

2шт.

43

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg., Includes O-Ring

1шт.

For 4 wheel drive

1шт.

44

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

For 4 wheel drive

1шт.

45

D66844

PADDING

WRAPPER

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

For 4 wheel drive

1шт.
