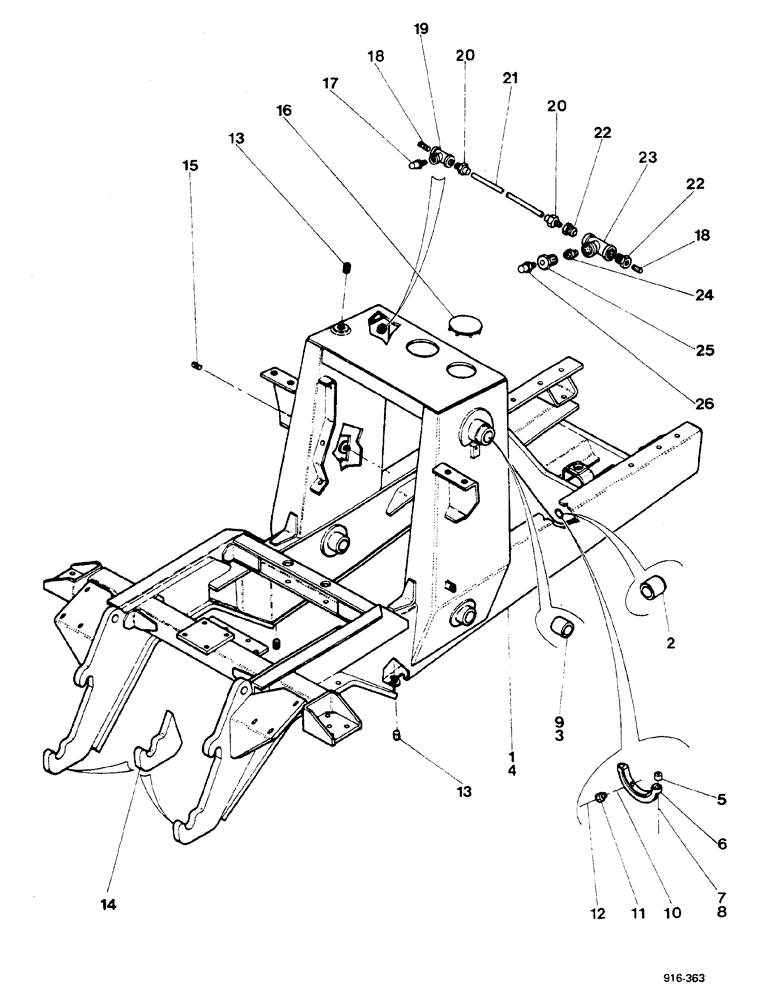

Запчасти Case 580F (320) - CHASSIS (39) - FRAMES AND BALLASTING

1

E38417

CHASSIS Includes: Ref. 2 and 3

1шт.

2

D69221

BUSHING,45.23mm ID x 57.16mm OD x 25mm L

1шт.

3

D65731

BUSHING

2шт.

4

E41644

FRAME

CHASSIS, Includes: Ref. 5-9

1шт.

For 4 wheel drive

1шт.

5

K956979

BUSHING

4шт.

For 4 wheel drive

1шт.

6

NSS

NOT SOLD SEPARAT

CLAMP

2шт.

For 4 wheel drive

1шт.

7

K956990

STUD

4шт.

For 4 wheel drive

1шт.

8

K965427

NUT

4шт.

For 4 wheel drive

1шт.

9

D65731

BUSHING

2шт.

For 4 wheel drive

1шт.

10

892-1012

LOCK WASHER,M12

2шт.

For 4 wheel drive

1шт.

11

K965424

ADAPTER

EXTENSION fitting

2шт.

For 4 wheel drive

1шт.

12

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

2шт.

For 4 wheel drive

1шт.

13

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

3шт.

14

E37545

MOUNTING PARTS

SPARE PART ARM ENDS, for repairs

2шт.

15

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

up to No. 3.739.889

1шт.

15

D63875

PLUG

starting with No. 3.739.890

1шт.

16

205-72

HOLE PLUG BUTTON,3"

1шт.

17

R15536

VALVE

1шт.

18

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

2шт.

19

221-430

TEE,1/4" NPT x 1/4 NPT Br

1шт.

20

220-502

COUPLING, BREAK AWAY

2шт.

21

D72098

HOSE,0.25" ID x 17.00", SAE 30R6 or SAE 30R7

1шт.

22

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING

2шт.

23

221-441

TEE,1/2" NPT x 3/4 NPT Br

1шт.

24

D63543

BREATHER

1шт.

25

D63506

ADAPTER

1шт.

26

R15538

VALVE

inlet

1шт.
