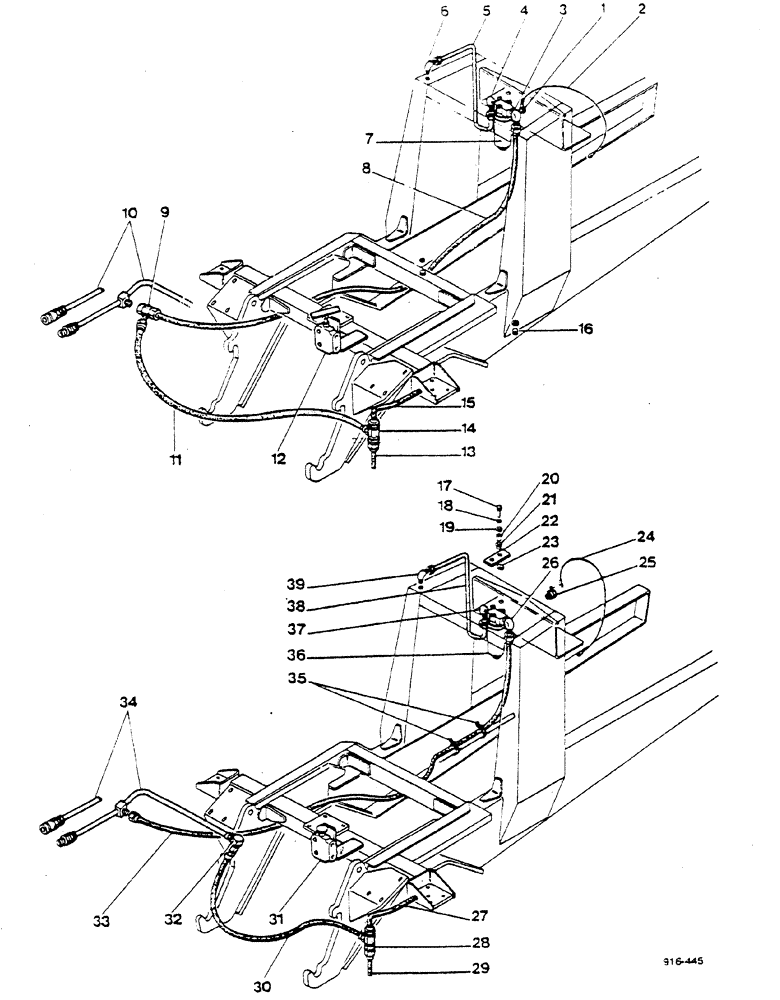

Запчасти Case 580F (440) - HYDRAULIC FOR RETURN CIRCUIT OF THE MONTABERT BRH 125 ROCK BREAKER (35) - HYDRAULIC SYSTEMS

1

D87439

SWITCH

1шт.

2

E42571

ELECTRICAL WIRE

SPARE PART

1шт.

3

D65646

FITTING

1шт.

4

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

1шт.

5

E43569

TUBE

1шт.

6

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

7

REF

INSTRUCTION

FILTER ASSY., see Figure 226

1шт.

8

E42974

HOSE

1шт.

9

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

10

REF

INSTRUCTION

TUBE, see Figure 430

1шт.

11

E17997

HOSE

1шт.

12

REF

INSTRUCTION

VALVE, see Figure 444

1шт.

13

D66506

HOSE

1шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

15

D76619

TUBE

1шт.

16

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

195-36

WASHER

2шт.

20

D65660

BUSHING

SPARE PART

2шт.

21

D67915

GROMMET

CRIMP

2шт.

22

E42355

PLATE

2шт.

23

195-36

WASHER

2шт.

24

E42571

ELECTRICAL WIRE

SPARE PART

1шт.

25

D87439

SWITCH

1шт.

26

D65646

FITTING

1шт.

27

D76619

TUBE

1шт.

28

218-5296

CONNECTOR

1шт.

29

D66506

HOSE

1шт.

30

D30850

HOSE ASSY.

1шт.

31

REF

INSTRUCTION

VALVE, see Figure 444

1шт.

32

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Connector

1шт.

33

E42974

HOSE

1шт.

34

REF

INSTRUCTION

TUBE, see Figure 430

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

36

REF

INSTRUCTION

FILTER ASSY., see Figure 226

1шт.

37

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

1шт.

38

E43569

TUBE

1шт.

39

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.
