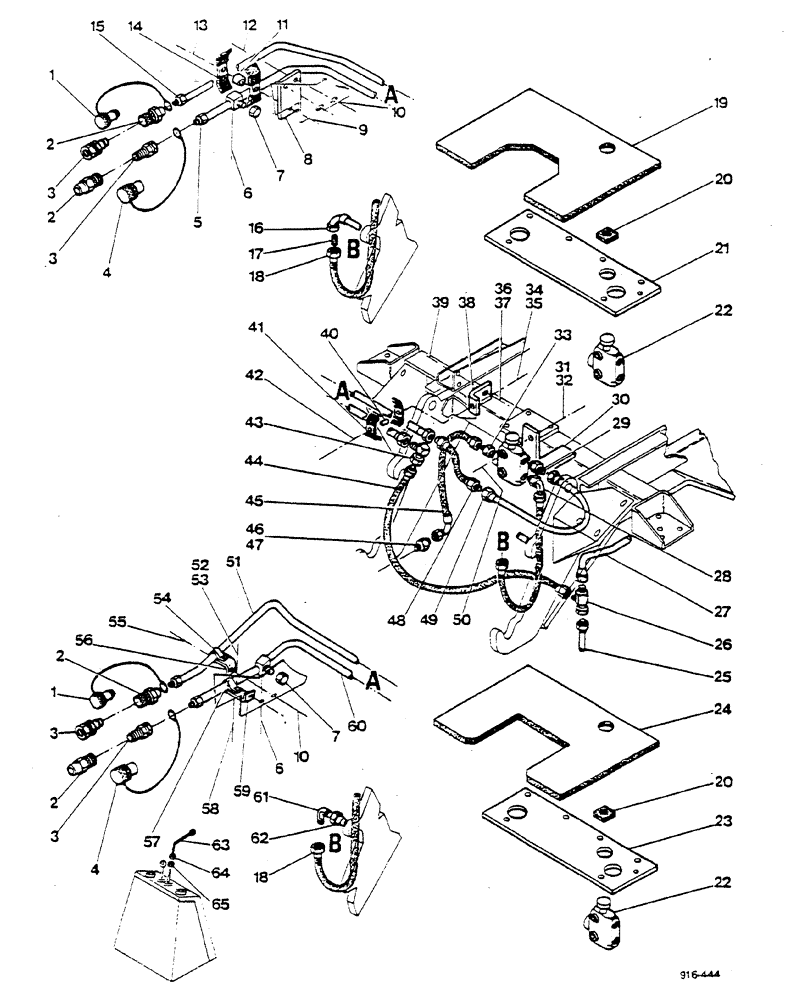

Запчасти Case 580F (436) - REAR HYDRAULIC ATTACHMENTS, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

E42573

PLUG

1шт.

2

D52800

COUPLING, QUICK, FEM

COUPLING

2шт.

3

D52694

QUICK MALE COUPLING

2шт.

4

E42574

PLUG

1шт.

5

E42967

TUBE

1шт.

For axial backhoe

1шт.

s

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

1шт.

8

E42578

BRACKET

1шт.

For axial backhoe

1шт.

9

25-106

NUT,3/8"-16, G5

1шт.

For axial backhoe

1шт.

10

131-1117

LOCK NUT,5/16"-18, GA

2шт.

11

D76175

BUSHING

1шт.

For axial backhoe

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

For axial backhoe

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

For axial backhoe

1шт.

14

E42430

CLAMP

2шт.

For axial backhoe

1шт.

15

E42579

TUBE

1шт.

For axial backhoe

1шт.

16

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

1шт.

For axial backhoe

1шт.

17

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR

1шт.

For axial backhoe

1шт.

18

L51379

HOSE

1шт.

19

REF

INSTRUCTION

MAT, rear, Ref. 22 Figure 388

1шт.

For axial backhoe

1шт.

20

E42575

INSULATION

1шт.

21

E42586

PLATE, rear, Includes: FOIL

1шт.

For axial backhoe

1шт.

21

E42588

FOIL bitumen

1шт.

For axial backhoe

1шт.

22

REF

INSTRUCTION

VALVE, See Figure 444

1шт.

23

E42583

PLATE, rear, Includes: FOIL

1шт.

For S.S. backhoe

1шт.

23

E42585

FOIL bitumen

1шт.

For S.S. backhoe

1шт.

24

REF

INSTRUCTION

MAT, rear, Ref. 24 Figure 388

1шт.

For S.S. backhoe

1шт.

25

D66506

HOSE

1шт.

26

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

27

D76619

TUBE

1шт.

28

E42489

FITTING

SPARE PART Includes: O-Ring

1шт.

28

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

29

E42488

COUPLING, BREAK AWAY

SPARE PART CONNECTOR, Includes: O-Ring

1шт.

29

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

30

E42445

BRACKET

1шт.

31

25-106

NUT,3/8"-16, G5

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

E42488

COUPLING, BREAK AWAY

SPARE PART CONNECTOR, Includes: O-Ring

1шт.

33

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

34

25-106

NUT,3/8"-16, G5

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

E42535

STRAP holding

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

40

D76175

BUSHING

1шт.

41

D40236

CLAMP

2шт.

42

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

43

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Includes: O-Ring

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

D30850

HOSE ASSY.

1шт.

45

D69011

HOSE

1шт.

46

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

For axial backhoe

1шт.

47

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

For S.S. backhoe

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

38546

HOSE

1шт.

49

E42443

TUBE

1шт.

50

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

51

E42538

PIPE CLAMP

1шт.

For S.S. backhoe

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

For S.S. backhoe

1шт.

53

92-6

LOCK WASHER,3/8"

2шт.

For S.S. backhoe

1шт.

54

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

For S.S. backhoe

1шт.

55

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

For S.S. backhoe

1шт.

56

E43005

STRAP holding

1шт.

For S.S. backhoe

1шт.

57

E15757

CLAMP

1шт.

For S.S. backhoe

1шт.

58

25-106

NUT,3/8"-16, G5

2шт.

For S.S. backhoe

1шт.

59

E43004

STRAP holding

1шт.

For S.S. backhoe

1шт.

60

E42963

PIPE CLAMP

1шт.

For S.S. backhoe

1шт.

61

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

For S.S. backhoe

1шт.

62

D70087

TUBE

1шт.

For S.S. backhoe

1шт.

63

E40477

LEVER

1шт.

For S.S. backhoe

1шт.

64

25-118

NUT,1/2"-20, G5

1шт.

For S.S. backhoe

1шт.

65

E43571

RING

1шт.

For S.S. backhoe

1шт.
