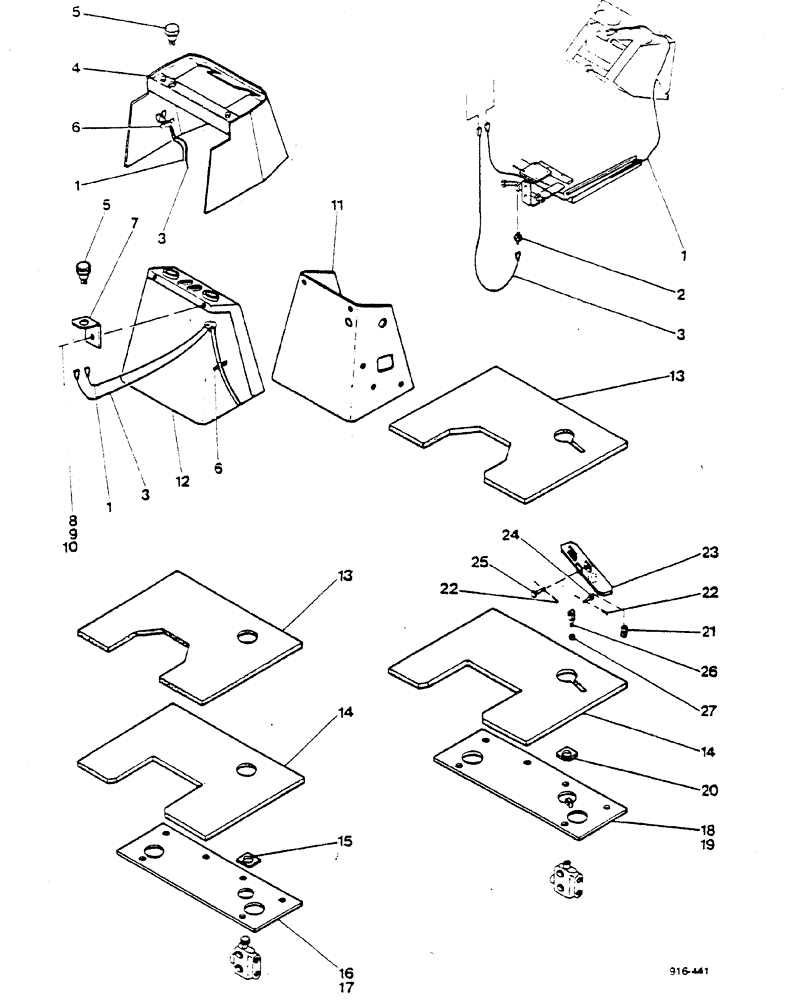

Запчасти Case 580F (434) - REAR HYDRAULIC ATTACHMENTS, ELECTRICAL SYSTEM, FLOOR PLATES (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
E42719
WIRE
1шт.
2
D70163
SWITCH,1/4" - 18 NPT, 230 Degrees F
SENSOR
1шт.
3
E32575
ELECTRICAL WIRE
WIRE
1шт.
4
REF
INSTRUCTION
PANEL, center, Ref. 37-38 Figure 258
1шт.
For axial backhoe
1шт.
5
T641648
SIGHTGLASS
LIGHT warning, Includes: BULB
1шт.
5
E41853
BULB
shuttle, 2 watt
1шт.
6
F93268
CLIP
1шт.
7
E42764
STRAP holding
1шт.
For S.S. backhoe
1шт.
8
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
For S.S. backhoe
1шт.
9
92-4
LOCK WASHER,1/4"
1шт.
For S.S. backhoe
1шт.
10
95- 4
WASHER
1шт.
For S.S. backhoe
1шт.
11
REF
INSTRUCTION
TOWER, Ref. 9 Figure 300
1шт.
For S.S. backhoe
1шт.
12
REF
INSTRUCTION
TOWER, Ref. 10 Figure 300
1шт.
For S.S. backhoe
1шт.
13
REF
INSTRUCTION
MAT, rear, Ref. 22 Figure 388
1шт.
For axial backhoe
1шт.
14
REF
INSTRUCTION
MAT, rear, Ref. 24 Figure 388
1шт.
For S.S. backhoe
1шт.
15
E42575
INSULATION
1шт.
16
E42586
PLATE, rear, Includes: FOIL
1шт.
For axial backhoe
1шт.
16
E42588
FOIL bitumen
1шт.
For axial backhoe
1шт.
17
E42583
PLATE, rear, Includes: FOIL
1шт.
For S.S. backhoe
1шт.
17
E42585
FOIL bitumen
1шт.
For S.S. backhoe
1шт.
18
E42746
PLATE, rear, Includes: FOIL
1шт.
For axial backhoe
1шт.
For a rock breaker
1шт.
18
E42588
FOIL bitumen
1шт.
For axial backhoe
1шт.
For a rock breaker
1шт.
19
E42743
PLATE, rear, Includes: FOIL
1шт.
For S.S. backhoe
1шт.
For a rock breaker
1шт.
19
E42585
FOIL bitumen
1шт.
For S.S. backhoe
1шт.
For a rock breaker
1шт.
20
E42575
INSULATION
1шт.
For a rock breaker
1шт.
21
E42757
SPRING
1шт.
For a rock breaker
1шт.
22
132-26
COTTER PIN
3/32" x 3/4"
2шт.
For a rock breaker
1шт.
23
E42749
PEDAL
1шт.
For a rock breaker
1шт.
24
141-3
CLEVIS PIN,5/16" x .940"
1шт.
For a rock breaker
1шт.
25
141-59
CLEVIS PIN,3/8" x 2 1/4"
1шт.
For a rock breaker
1шт.
26
E42753
YOKE
1шт.
For a rock breaker
1шт.
27
9635082
NUT,5/16" - 18, Gr 5
1шт.
For a rock breaker
1шт.
Выбрано товаров: 61
