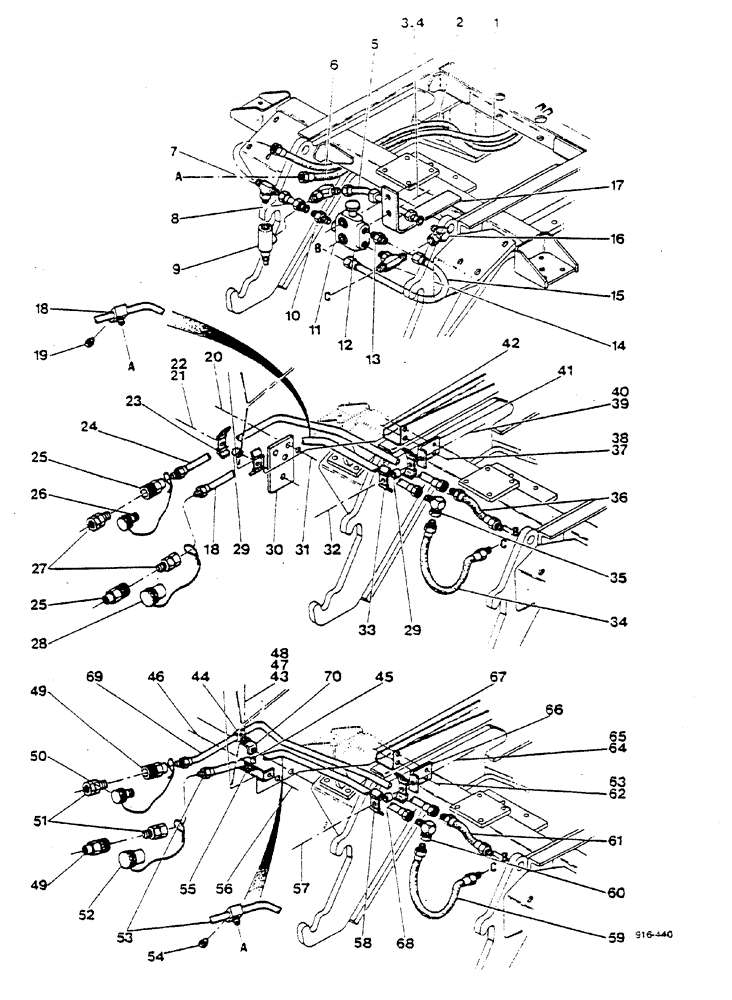

Запчасти Case 580F (430) - REAR HYDRAULIC ATTACHMENTS: HYDRAULIC SYSTEM, SEE FIGURE 428 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
E42974
HOSE
1шт.
2
E42448
HOSE
1шт.
3
92-5
LOCK WASHER,5/16"
2шт.
4
25-106
NUT,3/8"-16, G5
2шт.
5
E42703
TUBE
1шт.
6
E42489
FITTING
SPARE PART Includes: O-Ring
1шт.
6
218-5345
O-RING,9-1, 90 Duro, .706" ID x .097" Thk
1шт.
7
E42528
FITTING
Includes: O-Ring
1шт.
7
218-5345
O-RING,9-1, 90 Duro, .706" ID x .097" Thk
1шт.
8
E42457
TUBE
1шт.
9
REF
INSTRUCTION
VALVE relief, see Figure 444
1шт.
10
E42488
COUPLING, BREAK AWAY
SPARE PART CONNECTOR, Includes: O-Ring
1шт.
10
218-5345
O-RING,9-1, 90 Duro, .706" ID x .097" Thk
1шт.
11
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
12
REF
INSTRUCTION
VALVE, see Figure 444
1шт.
13
E42488
COUPLING, BREAK AWAY
SPARE PART CONNECTOR, Includes: O-Ring
1шт.
13
218-5345
O-RING,9-1, 90 Duro, .706" ID x .097" Thk
1шт.
14
E42528
FITTING
Includes: O-Ring
1шт.
14
218-5345
O-RING,9-1, 90 Duro, .706" ID x .097" Thk
1шт.
15
E42443
TUBE
1шт.
16
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
Includes: O-Ring
1шт.
16
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
17
E42445
BRACKET
1шт.
18
E42967
TUBE
1шт.
19
221-2
DRAIN PLUG,Sq Hd, 1/4"-18 NPTF
1шт.
20
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
21
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
22
92-6
LOCK WASHER,3/8"
1шт.
23
E42430
CLAMP
2шт.
24
E42579
TUBE
1шт.
25
D52800
COUPLING, QUICK, FEM
COUPLING
2шт.
26
E42573
PLUG
1шт.
27
D52694
QUICK MALE COUPLING
2шт.
28
E42574
PLUG
1шт.
29
D76175
BUSHING
2шт.
30
E42578
BRACKET
1шт.
31
131-1117
LOCK NUT,5/16"-18, GA
2шт.
32
13-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
33
D40236
CLAMP
2шт.
34
D30850
HOSE ASSY.
1шт.
35
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
Includes: O-Ring
1шт.
35
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
36
38546
HOSE
1шт.
37
92-6
LOCK WASHER,3/8"
2шт.
38
25-106
NUT,3/8"-16, G5
2шт.
39
92-6
LOCK WASHER,3/8"
1шт.
40
25-106
NUT,3/8"-16, G5
1шт.
41
E42535
STRAP holding
1шт.
42
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
43
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
44
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
1шт.
45
E15757
CLAMP
1шт.
46
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
47
92-6
LOCK WASHER,3/8"
2шт.
48
25-106
NUT,3/8"-16, G5
2шт.
49
D52800
COUPLING, QUICK, FEM
COUPLING
2шт.
50
E42573
PLUG
1шт.
51
D52694
QUICK MALE COUPLING
2шт.
52
E42574
PLUG
1шт.
53
E42963
PIPE CLAMP
1шт.
54
221-2
DRAIN PLUG,Sq Hd, 1/4"-18 NPTF
1шт.
55
E43004
STRAP holding
1шт.
56
131-1117
LOCK NUT,5/16"-18, GA
2шт.
57
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
58
D40236
CLAMP
2шт.
59
D30850
HOSE ASSY.
1шт.
60
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
Includes: O-Ring
1шт.
60
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
61
38546
HOSE
1шт.
62
92-6
LOCK WASHER,3/8"
2шт.
63
25-106
NUT,3/8"-16, G5
2шт.
64
92-6
LOCK WASHER,3/8"
1шт.
65
25-106
NUT,3/8"-16, G5
1шт.
66
E42535
STRAP
1шт.
67
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
68
D76175
BUSHING
1шт.
69
E42538
PIPE CLAMP
1шт.
70
E43005
STRAP holding
1шт.
Выбрано товаров: 78
