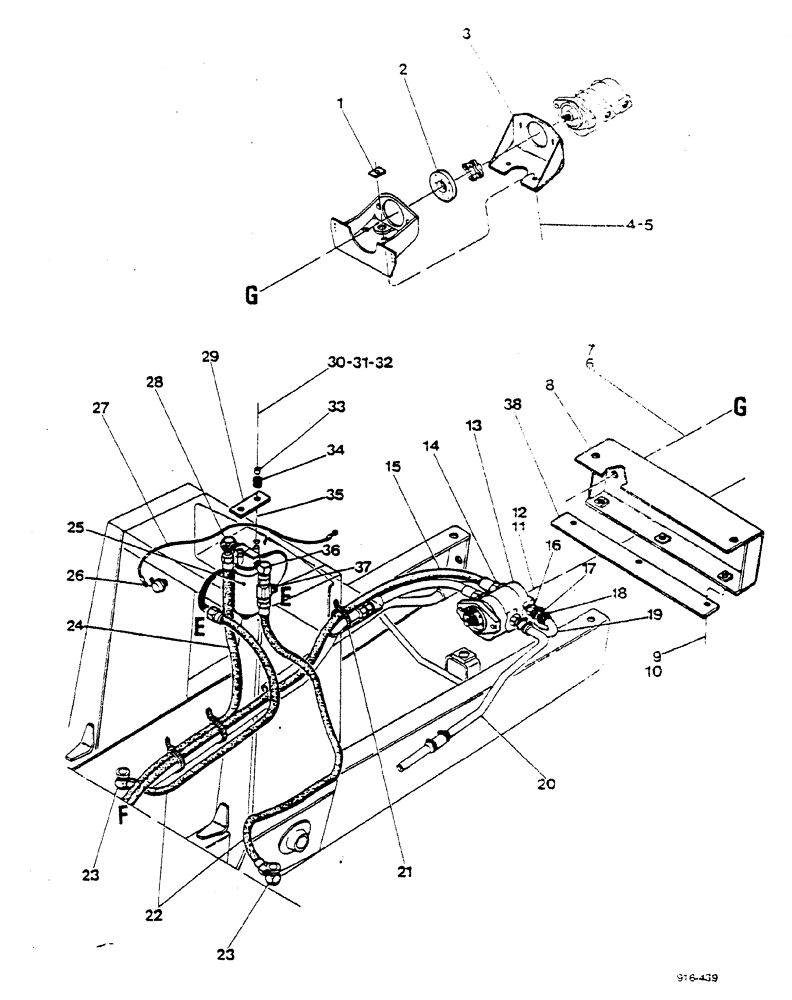

Запчасти Case 580F (428) - REAR HYDRAULIC ATTACHMENTS, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

E42735

BLOCK

2шт.

2

E42714

SPACER

1шт.

3

E43934

BRACKET

1шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

6

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

7

195-45

WASHER,3/4"

2шт.

8

E42377

GUARD

1шт.

9

92-5

LOCK WASHER,5/16"

3шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

13

E42568

PUMP, see Figure 442

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. O-Ring

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

E42448

HOSE

1шт.

16

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. O-Ring

1шт.

16

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

17

D36350

HOSE

1шт.

18

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

19

E42375

TUBE

1шт.

20

E42374

TUBE

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

22

R27800

HOSE

2шт.

23

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

2шт.

24

E42974

HOSE

1шт.

25

REF

INSTRUCTION

FILTER ASSY., see Figure 226

1шт.

26

D87439

SWITCH

1шт.

27

E42571

ELECTRICAL WIRE

SPARE PART

1шт.

28

D55646

SPARE PART CONNECTOR

1шт.

29

E42355

PLATE

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

195-36

WASHER

2шт.

33

D65660

BUSHING

SPARE PART

2шт.

34

D67915

GROMMET

2шт.

35

195-36

WASHER

2шт.

36

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

37

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

CONNECTOR

1шт.

38

E42576

PLAQUE

1шт.
