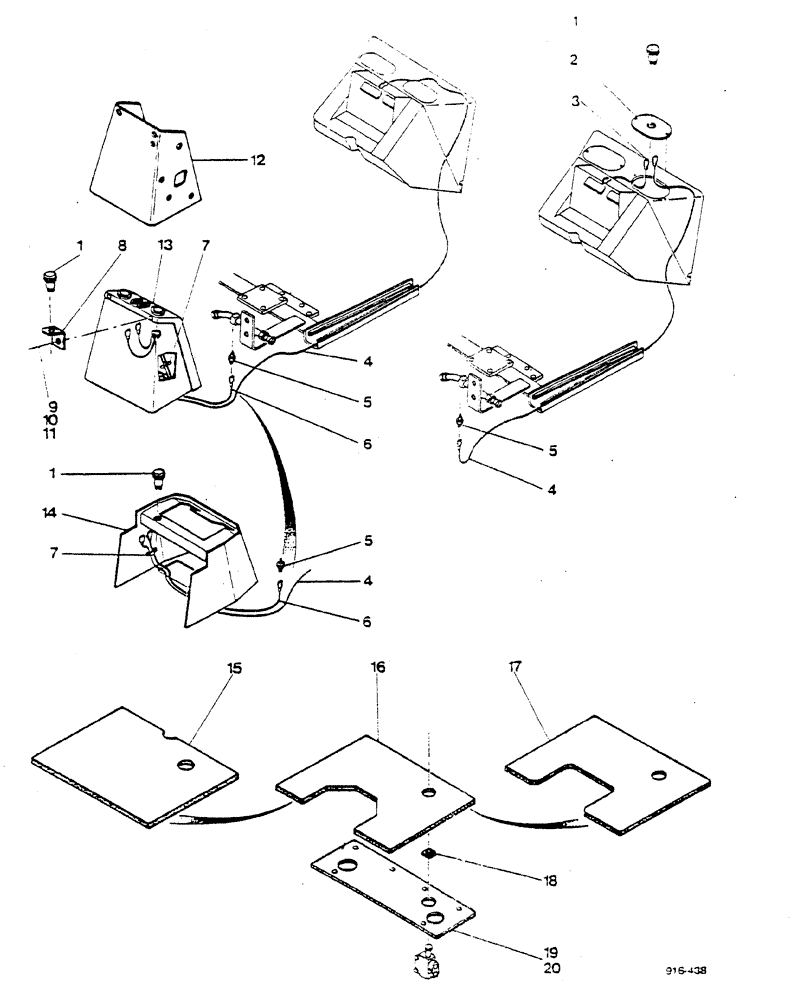

Запчасти Case 580F (426) - FRONT HYDRAULIC ATTACHMENTS, ELECTRICAL SYSTEM, FLOOR PLATES (35) - HYDRAULIC SYSTEMS

1

E41427

LIGHT warning, Includes: BULB

1шт.

1

E41853

BULB

shuttle, 2 watt

1шт.

2

REF

INSTRUCTION

COVER, see Figure 038

1шт.

For loader only

1шт.

3

E41159

ELECTRICAL WIRE

WIRE

1шт.

For loader only

1шт.

4

E42719

WIRE

1шт.

5

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

SENSOR

1шт.

6

E32575

ELECTRICAL WIRE

WIRE

1шт.

7

F93268

CLIP

1шт.

8

E42764

STRAP holding

1шт.

For S.S. backhoe

1шт.

9

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

For S.S. backhoe

1шт.

10

92-4

LOCK WASHER,1/4"

1шт.

For S.S. backhoe

1шт.

11

95-4

WASHER,1/4"

1шт.

For S.S. backhoe

1шт.

12

REF

INSTRUCTION

TOWER, Ref. 9 Figure 300

1шт.

For S.S. backhoe

1шт.

13

REF

INSTRUCTION

TOWER, ref 10 Figure 300

1шт.

For S.S. backhoe

1шт.

14

REF

INSTRUCTION

PANEL center, ref. 37-38 Figure 268

1шт.

For axial backhoe

1шт.

15

REF

INSTRUCTION

MAT, rear, ref. 19 Figure 388

1шт.

For loader only

1шт.

16

REF

INSTRUCTION

MAT, rear, ref. 22 Figure 388

1шт.

For axial backhoe

1шт.

17

REF

INSTRUCTION

MAT, rear, ref. 24 Figure 388

1шт.

For S.S. backhoe

1шт.

18

E42575

INSULATION

1шт.

19

E42586

PLATE, rear, Includes: FOIL

1шт.

For axial backhoe

1шт.

19

E42588

FOIL bitumen

1шт.

For axial backhoe

1шт.

20

E42583

PLATE, rear, Includes: FOIL

1шт.

For S.S. backhoe

1шт.

For loader only

1шт.

20

E42585

FOIL bitumen

1шт.

For S.S. backhoe

1шт.

For loader only

1шт.
