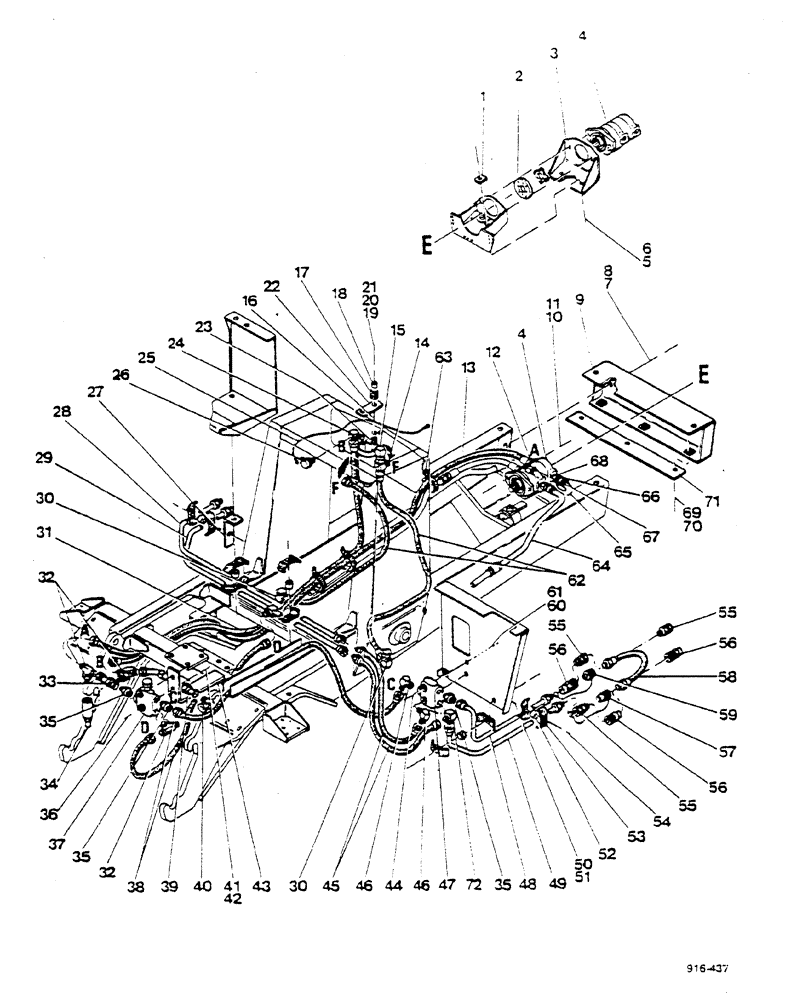

Запчасти Case 580F (422) - FRONT HYDRAULIC ATTACHMENTS: HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

E42735

BLOCK

1шт.

2

E42714

SPACER

1шт.

3

E15934

BRACKET

1шт.

4

E42640

PUMP, see Figure 442

1шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

7

195-45

WASHER,3/4"

2шт.

3

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

9

E42377

GUARD

1шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

26-328

CAPSCREW

2шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. O-Ring

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

E42448

HOSE

1шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

15

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

16

195-36

WASHER

2шт.

17

D67915

GROMMET

CRIMP

2шт.

18

D65660

BUSHING

SPARE PART

2шт.

19

195-36

WASHER

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

13-324

CAPSCREW

2шт.

22

E42355

PLATE

1шт.

23

REF

INSTRUCTION

FILTER ASSY., see Figure 226

1шт.

24

D65646

FITTING

1шт.

25

E42571

ELECTRICAL WIRE

SPARE PART

1шт.

26

D87439

SWITCH

1шт.

27

E42463

STRAP holding

1шт.

28

E42524

TUBE

1шт.

29

E42522

TUBE

1шт.

30

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

2шт.

31

E42446

HOSE

1шт.

32

E42528

FITTING

Includes: O-Ring

3шт.

32

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

33

E42457

TUBE

1шт.

34

REF

INSTRUCTION

VALVE relief, see Figure 444

1шт.

35

E42488

COUPLING, BREAK AWAY

SPARE PART Includes: O-Ring

3шт.

35

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

36

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

37

REF

INSTRUCTION

VALVE, see Figure 444

1шт.

38

D73935

HOSE

SPARE PART

2шт.

39

E42703

TUBE

1шт.

40

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Includes: O-Ring

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

25-106

NUT,3/8"-16, G5

2шт.

43

E42445

BRACKET

1шт.

44

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

45

L17544

HOSE

2шт.

46

E42489

FITTING

SPARE PART Includes: O-Ring

2шт.

46

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

1шт.

47

REF

INSTRUCTION

DIVIDER, see Figure 444

1шт.

48

E42600

TUBE

1шт.

49

E42602

TUBE

1шт.

50

25-106

NUT,3/8"-16, G5

5шт.

51

92-6

LOCK WASHER,3/8"

5шт.

52

D76175

BUSHING

5шт.

53

D40236

CLAMP

10шт.

54

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5шт.

55

T41332

COUPLING, BREAK AWAY

5шт.

56

T40265

COUPLING, BREAK AWAY

5шт.

57

T40759

PLUG

2шт.

58

E42464

HOSE

SPARE PART

1шт.

59

T40274

CAP

2шт.

60

92-6

LOCK WASHER,3/8"

2шт.

61

25-106

NUT,3/8"-16, G5

2шт.

62

R27800

HOSE

2шт.

63

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

64

E42374

TUBE

1шт.

65

E42375

TUBE

1шт.

66

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

67

D36350

HOSE

1шт.

68

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. O-Ring

1шт.

68

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

69

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

70

92-6

LOCK WASHER,3/8"

3шт.

71

E42576

PLATE

1шт.

72

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

1шт.

321-4875

DECAL, not shown

2шт.
