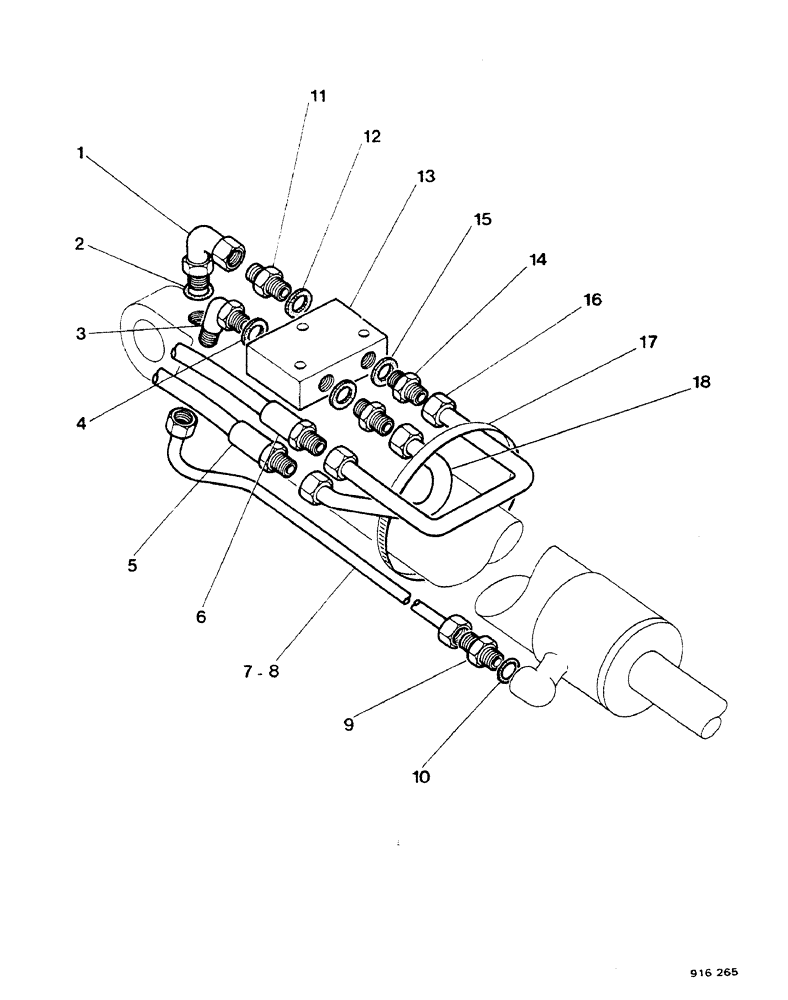

Запчасти Case 580F (400) - AXIAL BACKHOE, SAFETY VALVE, STABILIZER CYLINDER, FOR SWEDEN ONLY (35) - HYDRAULIC SYSTEMS

1

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 2

1шт.

2

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

E37281

ELBOW UNION

Union Elbow Includes: Ref. 4

1шт.

4

E41983

GASKET

1шт.

5

D65652

HOSE,9.53mm ID x 990.6mm L, SAE 100R2

1шт.

6

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

1шт.

7

E41283

TUBE

R.H.

1шт.

8

E41285

TUBE

L.H.

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 10

1шт.

10

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

E37282

HYD CONNECTOR

Includes: Ref. 12

1шт.

12

E41983

GASKET

1шт.

13

E37283

LOCK VALVE

see Figure 404

1шт.

14

E37132

CONNECTOR, ELEC

CONNECTOR Includes: Ref. 15

2шт.

15

E41983

GASKET

1шт.

16

E37284

TUBE

1шт.

17

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

1шт.

18

E41281

TUBE

1шт.
