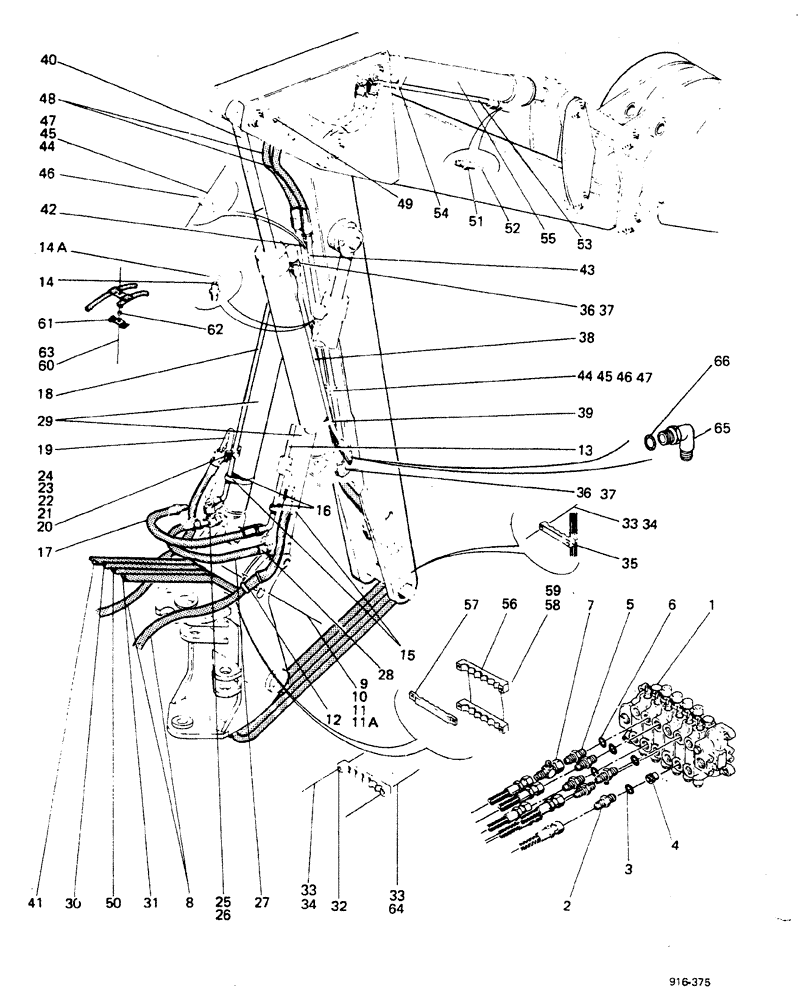

Запчасти Case 580F (286) - SIDE SHIFT BACKHOE, BOOM AND DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 236

1шт.

2

L55143

FITTING

CONNECTOR Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

D56252

FITTING

RESTRICTOR

1шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 6

5шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

1шт.

8

D70372

HOSE

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

D72284

SLEEVE

2шт.

11

195-25

WASHER,3/8"

4шт.

11a

131-6521

NUT

2шт.

12

E42827

COLLAR

CLAMP

2шт.

13

D69237

TUBE

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 14A

2шт.

14a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

16

D38648

BLOCK

SPACER

2шт.

17

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

1шт.

18

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

1шт.

19

D69421

HYD TUBE,0.75" OD

1шт.

20

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

D40236

CLAMP

2шт.

22

D34244

SPACER

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

1шт.

25

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

D65491

HOSE,12.7mm ID x 558.8mm L, SAE 100R2

22"

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

REF

INSTRUCTION

CYLINDER, see Figure 218

2шт.

30

D75812

HOSE

1шт.

31

D67590

HOSE

1шт.

32

D69610

CLAMP

1шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

35

D50388

CLAMP

2шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 37

1шт.

37

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

D50379

TUBE

1шт.

39

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

40

REF

INSTRUCTION

CYLINDER, see Figure 220

1шт.

41

D70323

HOSE

1шт.

42

D84597

HYD TUBE,0.75" OD x 70, 2.58" L

1шт.

43

D87421

HYD TUBE,0.75" OD x 4.65, 73.4" L

1шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

D40236

CLAMP

2шт.

47

D36040

BUSHING

2шт.

48

D50372

HOSE

2шт.

49

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

50

D67588

HOSE

1шт.

51

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 52

2шт.

52

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

53

D58609

TUBE

1шт.

54

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

55

REF

INSTRUCTION

CYLINDER, see Figure 222

1шт.

56

D75206

CLAMP

STRAP

1шт.

57

D69609

CLIP

STRAP

1шт.

58

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

59

92-8

LOCK WASHER,1/2"

4шт.

60

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

61

D42833

CLAMP

2шт.

62

D67696

BUSHING

1шт.

63

131-666

LOCK NUT,3/8"-16, GB

1шт.

64

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

65

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 66

1шт.

66

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
