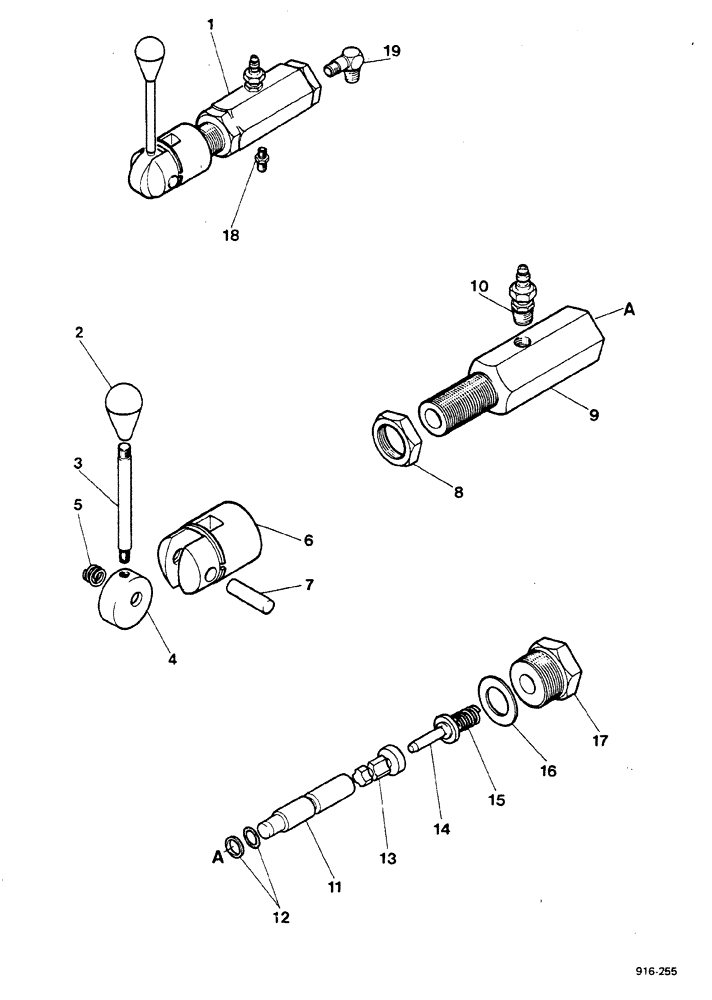

Запчасти Case 580F (284) - SIDE SHIFT BACKHOE, LOCKING VALVE (35) - HYDRAULIC SYSTEMS

1

E76046

LOCK

VALVE, MICO, Includes: Ref. 2-17

1шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSY., order E76047, Includes: Ref. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

KNOB, order E76047

1шт.

3

NSS

NOT SOLD SEPARAT

HANDLE, order E76047

1шт.

4

NSS

NOT SOLD SEPARAT

CAM, order E76047

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING, order E76047

1шт.

6

NSS

NOT SOLD SEPARAT

CLEVIS, order E76047

1шт.

7

NSS

NOT SOLD SEPARAT

PIN, order E76047

1шт.

8

NSS

NOT SOLD SEPARAT

NUT, order E76046

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING, order E76046

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG, order E76046

1шт.

11

NSS

NOT SOLD SEPARAT

ROD, order E76047

1шт.

12

NSS

NOT SOLD SEPARAT

SET of SEAL, order E76047

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE, order E76046

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE, order E76046

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING, order E76046

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET, order E76046

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG, order E76046

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR

1шт.

19

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ELBOW

1шт.

E76047

KIT

repair

1шт.
