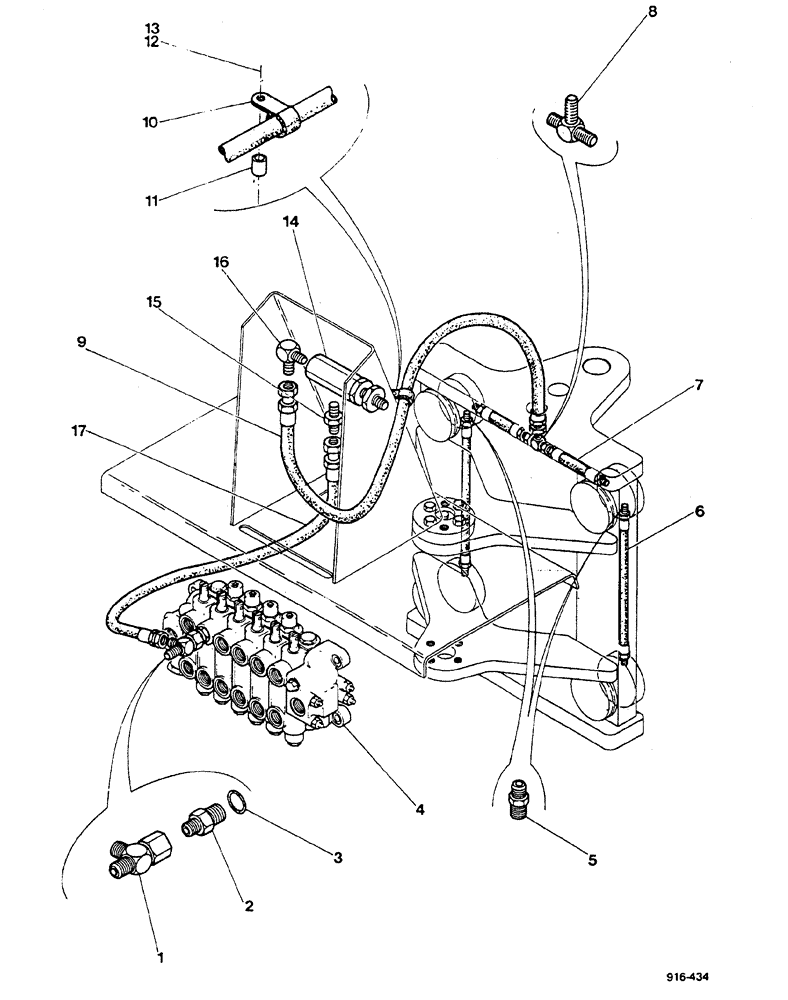

Запчасти Case 580F (282) - SIDE SHIFT BACKHOE, LOCKING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

REF

INSTRUCTION

VALVE, see Figure 236

1шт.

5

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

2шт.

6

D68000

HOSE

2шт.

7

D68001

HOSE

2шт.

8

218-591

TEE,7/16"-20, 37 Degree

1шт.

9

D67998

HOSE

1шт.

10

D34174

CLAMP,5/8", 1/2" Bolt

1шт.

11

E35340

BUSHING

1шт.

12

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

REF

INSTRUCTION

VALVE, see Figure 284

1шт.

15

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

1шт.

16

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

1шт.

17

D67999

HOSE

1шт.
