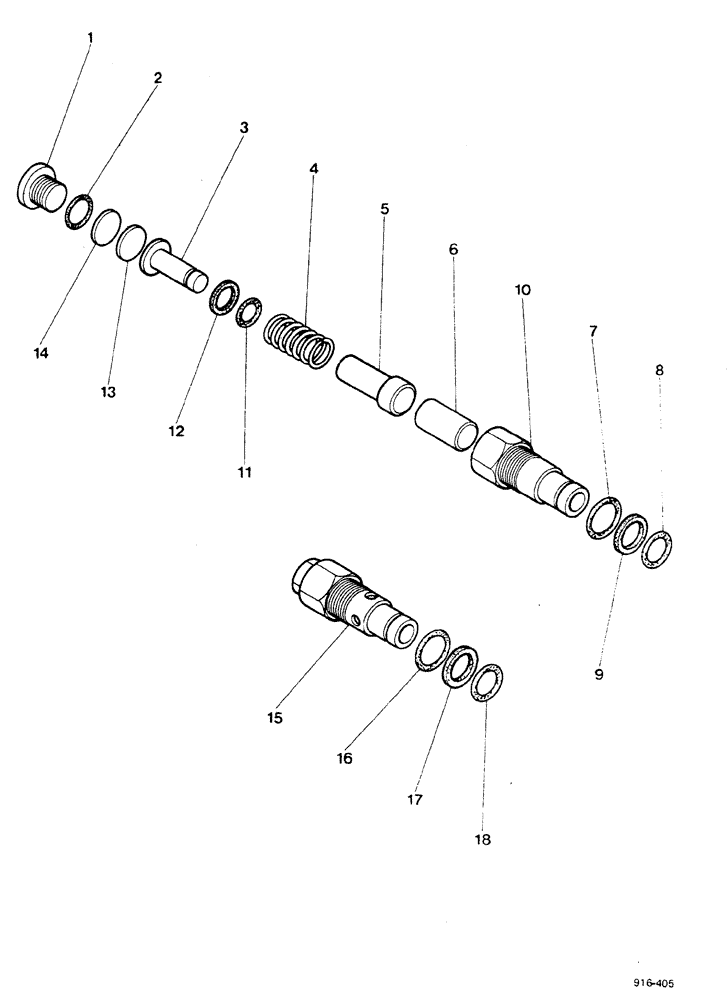

Запчасти Case 580F (280) - RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D47557

VALVE

Allen head, Includes: Ref. 1-14

1шт.

1

D40354

PLUG

1шт.

3

D37150

GUIDE

SEAT

1шт.

4

D37148

SPRING

1шт.

5

D37151

PLUNGER

1шт.

6

D37075

SEAT

1шт.

7

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

D37071

RING

1шт.

10

D47667

CAP

BODY

1шт.

11

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

12

D37147

RING

1шт.

13

16917

SHIM

1шт.

14

D40355

SHIM,.005" Thk

1шт.

D55017

VALVE

hex head, Includes: Ref. 15, 16, 17 and 18

1шт.

15

NSS

NOT SOLD SEPARAT

BODY

1шт.

16

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

D37071

RING

backup

1шт.

18

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
