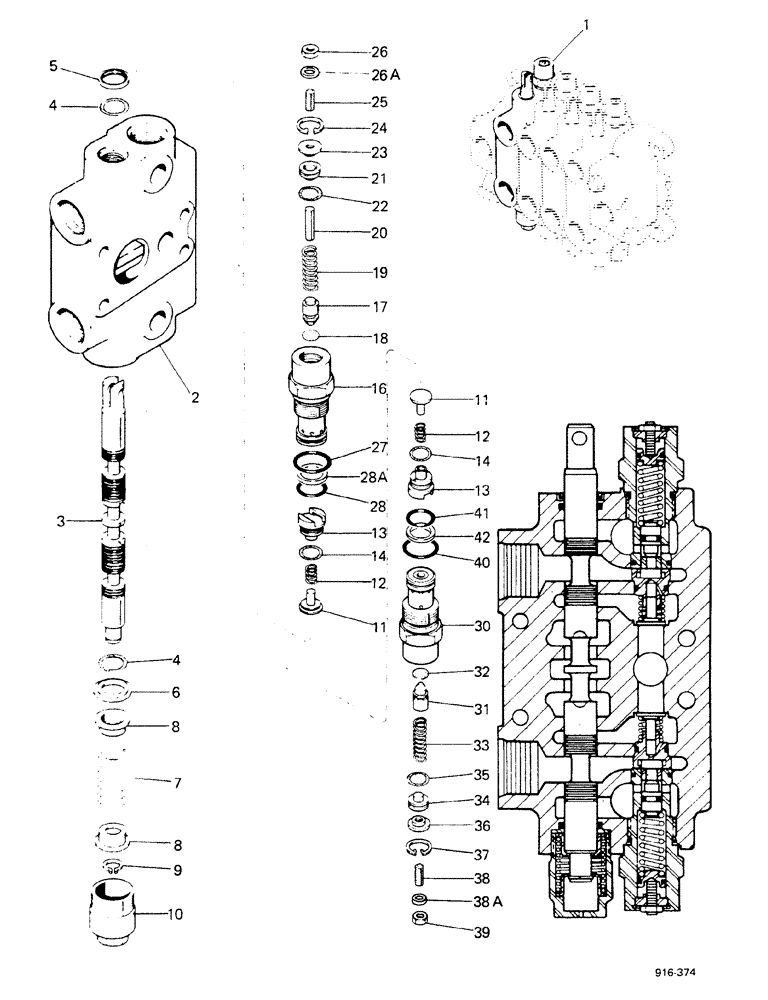

Запчасти Case 580F (242) - BOOM VALVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
G35445
VALVE
complete, Includes: Ref. 2-42
1шт.
1
G102480
VALVE
complete, Includes: Ref. 2-42
1шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
4
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
2шт.
5
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
1шт.
6
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
1шт.
7
G34463
SPRING
1шт.
8
G33075
RETAINER,12.2mm ID, 27.9mm OD
2шт.
9
G33077
SNAP RING,#47, Ext
#47, Ext
1шт.
10
G33080
CAP
1шт.
11
G33081
VALVE POPPET
2шт.
12
G33573
SPRING
2шт.
13
G33084
PLUG
2шт.
14
G33686
O-RING,0.07" Thk x 0.61" ID
2шт.
G33100
KIT
VALVE, complete, for service order G34862 service kit, Includes: Ref. 16-28A
1шт.
16
NSS
NOT SOLD SEPARAT
BODY
1шт.
17
NSS
NOT SOLD SEPARAT
POPPET
1шт.
18
G102844
O-RING
1шт.
19
G33090
SPRING
1шт.
20
G33241
PIN
1шт.
21
G33091
PISTON
1шт.
22
G102845
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
23
G33092
RETAINER
1шт.
24
G46150
SNAP RING,0.75", Int, #75
0.75", Int, #75
1шт.
25
G102782
SET SCREW,1/4" - 20 x 1"
1шт.
26
25-144
JAM NUT,Jam, 1/4"-20, G5
1шт.
26a
G102781
WASHER
if used
1шт.
27
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
28
G100959
O-RING,0.744" ID x 0.879" OD
1шт.
28a
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
if used
1шт.
G34043
KIT
VALVE, complete, for service order G34862 service kit, Includes: Ref. 30-42
1шт.
30
NSS
NOT SOLD SEPARAT
BODY
1шт.
31
NSS
NOT SOLD SEPARAT
POPPET
1шт.
32
G102844
O-RING
1шт.
33
G33090
SPRING
1шт.
34
G33091
PISTON
1шт.
35
G102845
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
36
G33092
RETAINER
1шт.
37
G46150
SNAP RING,0.75", Int, #75
0.75", Int, #75
1шт.
38
G102782
SET SCREW,1/4" - 20 x 1"
1шт.
38a
G102781
WASHER
if used
1шт.
39
25-144
JAM NUT,Jam, 1/4"-20, G5
1шт.
40
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
41
G100959
O-RING,0.744" ID x 0.879" OD
1шт.
42
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
if used
1шт.
Выбрано товаров: 46
