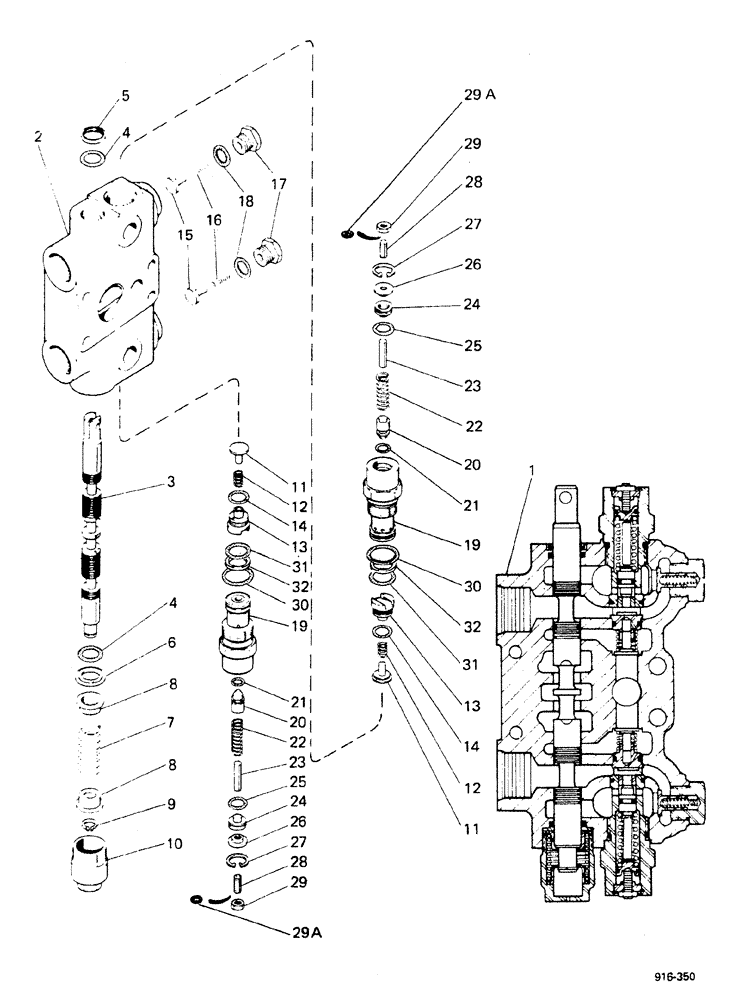

Запчасти Case 580F (240) - SWING VALVE (35) - HYDRAULIC SYSTEMS

1

G100192

ELEMENT

VALVE, complete, Includes: Ref. 2-32

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

7

G34463

SPRING

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

9

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

10

P0033080G

SCREW

1шт.

11

G33081

VALVE POPPET

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

15

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

2шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

2шт.

17

G34937

PLUG

2шт.

18

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

G34657

VALVE

complete, for service order G34862, Includes: Ref. 19-32

2шт.

19

NSS

NOT SOLD SEPARAT

BODY

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET

1шт.

21

G102844

O-RING

1шт.

22

G33090

SPRING

1шт.

23

G34455

PIN

1шт.

24

G33091

PISTON

1шт.

25

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

G33092

RETAINER

1шт.

27

G46150

SNAP RING,0.75", Int, #75

0.75", Int, #75

1шт.

28

G102782

SET SCREW,1/4" - 20 x 1"

1шт.

29

25-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

29a

G102781

WASHER

if used

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

G100959

O-RING,0.744" ID x 0.879" OD

1шт.

32

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

if used

1шт.
