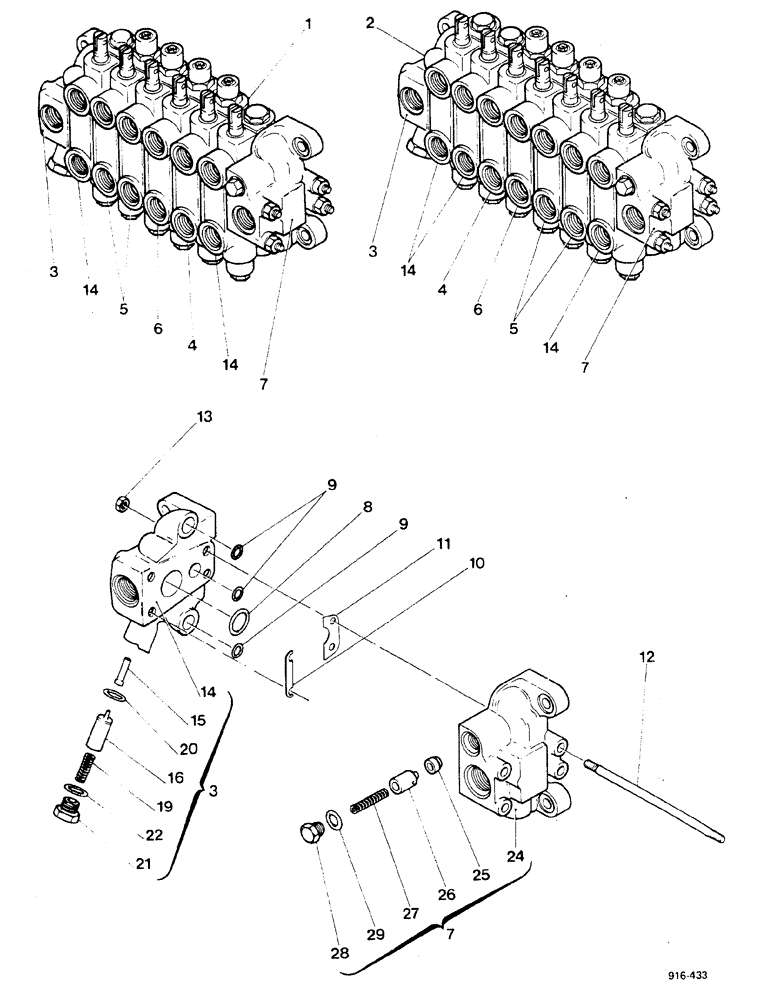

Запчасти Case 580F (236) - SIDE SHIFT BACKHOE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

G102481

VALVE

ASSY., 6 spool, 5 levers, without extendahoe

1шт.

1

G102482

VALVE

ASSY., 6 spool, 2 levers, without extendahoe

1шт.

1

E37850

VALVE ASSY., 6 spool, 2 levers, without extendahoe, for Sweden only

1шт.

2

G102483

LOCK VALVE

ASSY., 7 spool, 5 levers, with extendahoe

1шт.

2

G102484

VALVE

ASSY., 7 spool, 2 levers, with extendahoe

1шт.

2

E37851

VALVE ASSY., 7 spool, 2 levers, with extendahoe, for Sweden only, Includes: Ref. 3-14

1шт.

3

G33108

MANIFOLD

VALVE outlet, see Figure 234

1шт.

4

G102480

VALVE

boom, see Figure 242

1шт.

5

G35444

VALVE

bucket and dipper, see Figure 238

2шт.

6

G100192

ELEMENT

SWING SECTION, see Figure 240

1шт.

7

G33102

MANIFOLD

VALVE inlet, see Figure 234

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

quantity is 7 to 8

1шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

quantity is 21 to 24

1шт.

10

G33964

SHIM,.002" Thk

(0.05 mm)

1шт.

quantity is 7 to 8

1шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

1шт.

quantity is 7 to 8

1шт.

12

G34466

TIE-ROD

ROD, with extendahoe

4шт.

12

G33124

BOLT

ROD, without extendahoe

4шт.

13

25-106

NUT,3/8"-16, G5

8шт.

14

G100193

VALVE

stabilizer and extendahoe dipper, see Figure 244

1шт.

quantity is 2 or 3

1шт.
