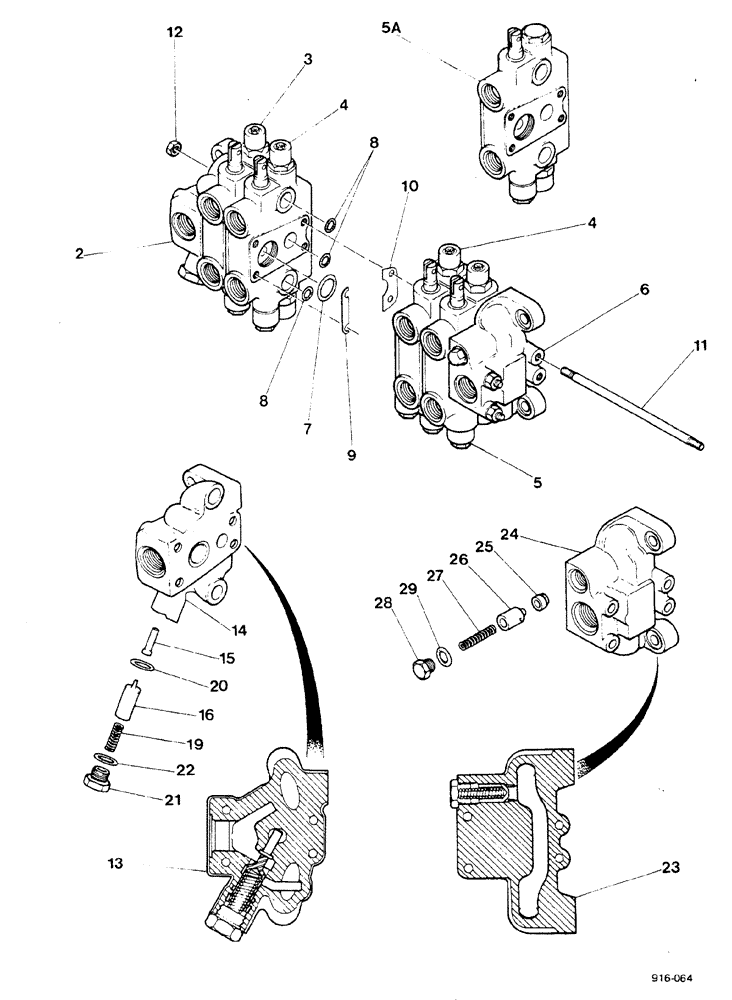

Запчасти Case 580F (234) - BACKHOE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

G100244

VALVE

ASSY., without extendahoe

1шт.

E35885

VALVE complete, without extendahoe, for Sweden only

1шт.

G100196

LOCK VALVE

complete, with extendahoe, Includes: Ref. 2-12

1шт.

E35886

VALVE complete, with extendahoe, for Sweden only, Includes: Ref. 2-12

1шт.

2

G33108

MANIFOLD

VALVE outlet

1шт.

3

G35445

VALVE

boom, see Figure 242

1шт.

4

G35444

VALVE

bucket and dipper, see Figure 238

2шт.

5

G100192

ELEMENT

SWING SECTION, see Figure 240

1шт.

5a

G100193

VALVE

dipper ext., used in G100196 only, see Figure 244

1шт.

6

G33102

MANIFOLD

INLET

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

quantity is 5 to 6

1шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

quantity is 15 to 18

1шт.

9

G33964

SHIM,.002" Thk

(0.05 mm)

1шт.

quantity is 5 to 6

1шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

1шт.

quantity is 5 to 6

1шт.

11

G34675

TIE-ROD

with extendahoe

4шт.

11

G34942

TIE-ROD

BOLT, without extendahoe

4шт.

12

25-106

NUT,3/8"-16, G5

4шт.

13

G33108

MANIFOLD

VALVE ASSY., outlet, Includes: Ref. 14-22

1шт.

14

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

15

G33110

PISTON

1шт.

16

G34586

SPOOL,22mm OD x 59.87mm L

1шт.

19

G33112

SPRING

1шт.

20

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

21

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

23

G33102

MANIFOLD

INLET ASSY., Includes: Ref. 24-29

1шт.

24

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

25

G33104

SEAT

1шт.

26

G33105

VALVE POPPET

1шт.

27

G33106

SPRING

1шт.

28

A39586

PLUG

1шт.

29

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
