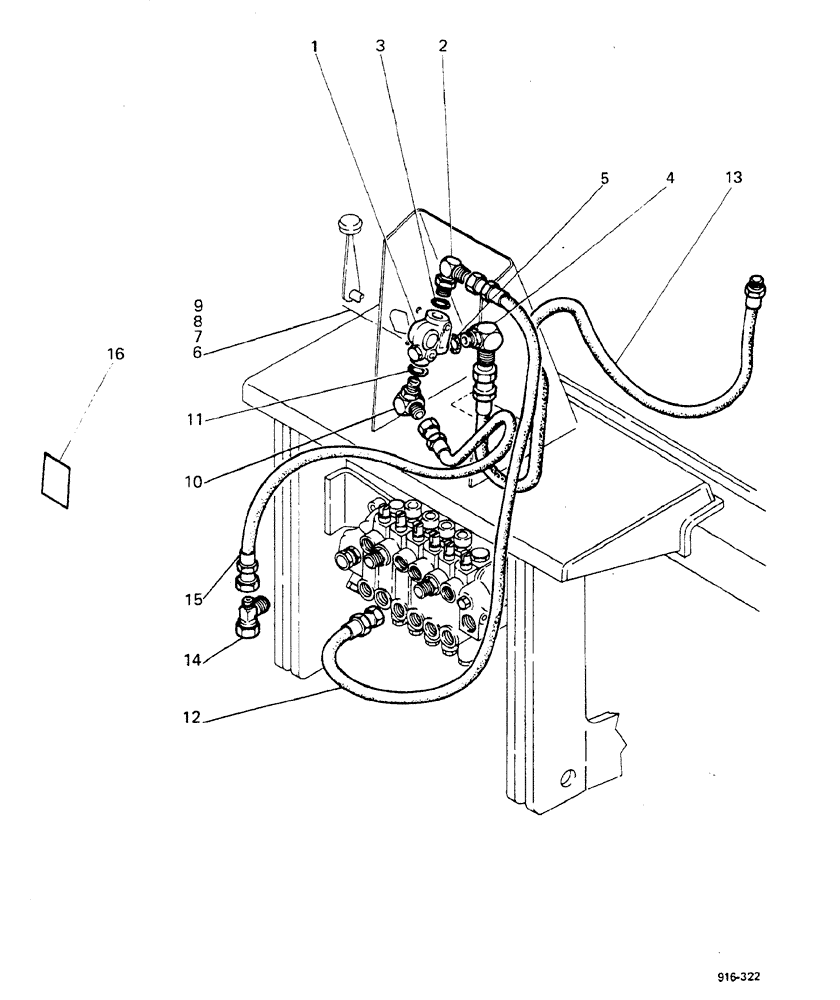

Запчасти Case 580F (232) - SIDE SHIFT BACKHOE, BOOM LOCK HYDRAULICS SYSTEM (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 230

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

7

195-25

WASHER,3/8"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 11

1шт.

12

D73935

HOSE

SPARE PART

1шт.

13

D73947

HOSE

SPARE PART

1шт.

14

218-5489

FITTING

1шт.

15

D73948

HOSE

SPARE PART

1шт.

16

321-3348

DECAL

English

1шт.

16

321-3616

DECAL French

1шт.

16

321-3672

DECAL German

1шт.

16

321-3629

DECAL Spanish

1шт.

16

321-3684

DECAL Swedish

1шт.

16

321-3667

DECAL Japanese

1шт.

16

321-3642

DECAL Italian

1шт.

16

321-3666

DECAL Arabic

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
