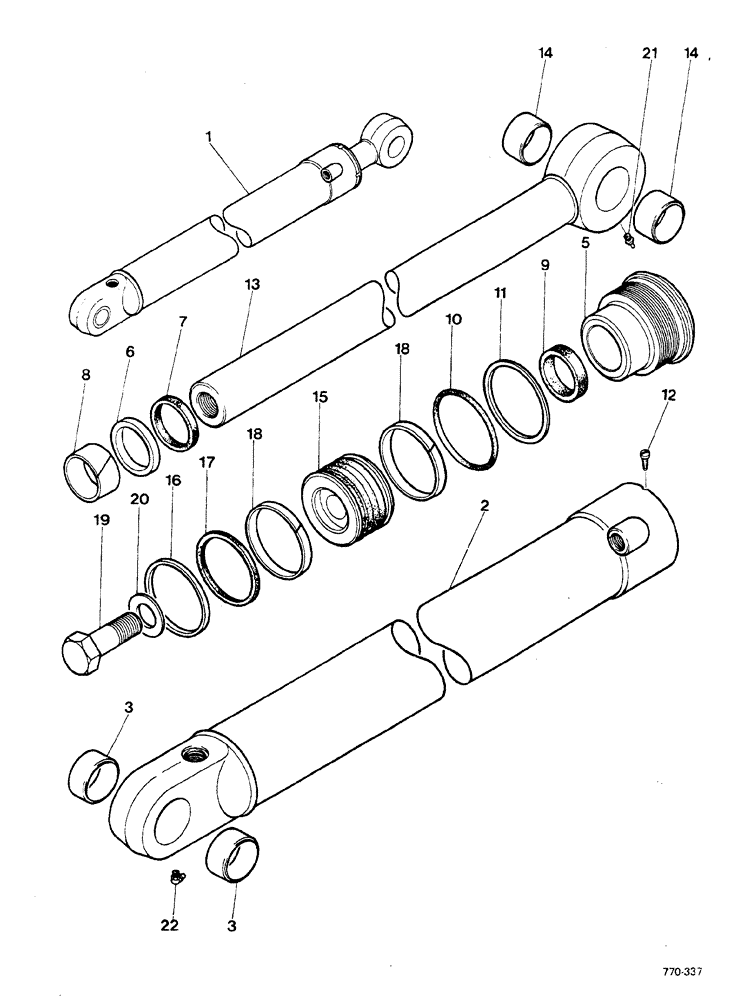

Запчасти Case 580F (222) - BACKHOE, BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

G101176

CYLINDER

ASSY., Includes: Ref. 2-22

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G32399

CYLINDER

TUBE ASSY., Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34629

GLAND

ASSY., Includes: Ref. 5-11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of SET P/N G102402

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of SET P/N G102402

1шт.

9

D36971

RING

see G100778

1шт.

Part of SET P/N G102402

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of SET P/N G102402

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102402

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

13

G33162

ROD

ASSY., Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

2шт.

15

G100694

PISTON

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102402

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

Part of SET P/N G102402

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of SET P/N G102402

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G102402

SEAL

SET of, Includes: Ref. 7, 8, 9, 10, 11, 16, 17 and 18

1шт.

G100778

SEAL

special seal for extreme heat or cold, see D36971

1шт.
