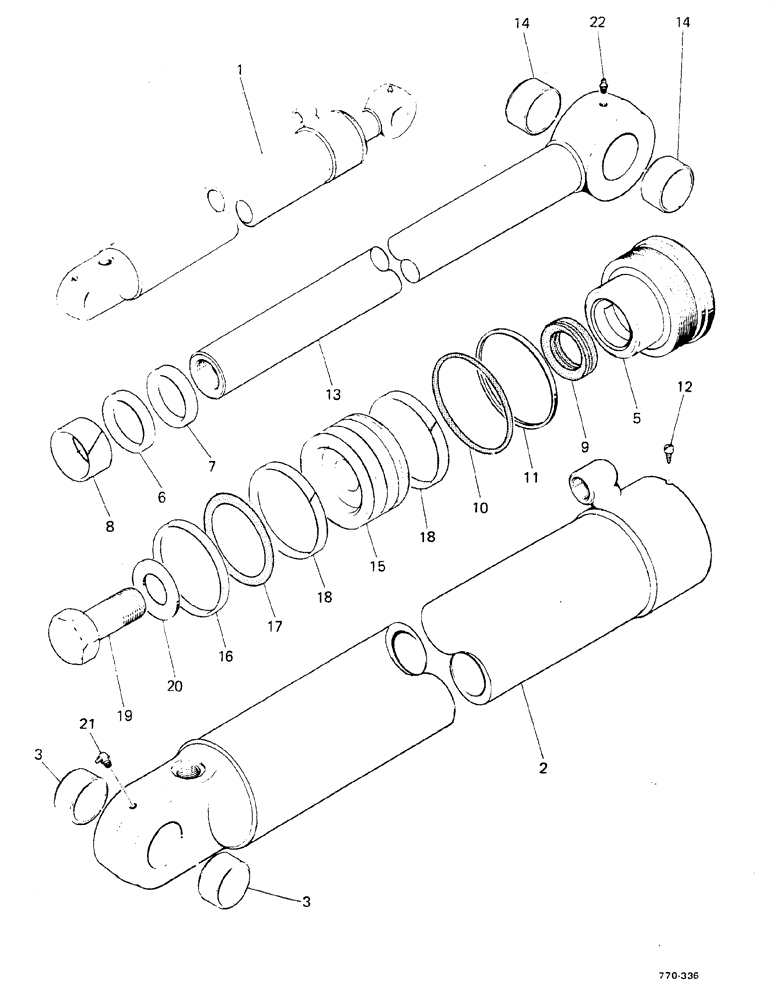

Запчасти Case 580F (220) - BACKHOE, DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS

1

G101175

CYLINDER

ASSY., Includes: Ref. 2-22

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G101516

SLEEVE CYLINDER,1120.64 mm L

TUBE ASSY., Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34331

GLAND

ASSY., Includes: Ref. 5-11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of SET P/N G102401

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of SET P/N G102401

1шт.

9

D36971

RING

see G100778

1шт.

Part of SET P/N G102401

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of SET P/N G102401

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102401

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

13

G33154

ROD

ASSY., Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

15

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102401

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

Part of SET P/N G102401

1шт.

18

G100448

RING,101.6mm OD, Ext

2шт.

Part of SET P/N G102401

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

20

G32351

WASHER

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G102401

SEAL

SET of, Includes: Ref. 7, 8, 9, 10, 11, 16, 17 and 18

1шт.

G100778

SEAL

special seal for extreme heat or cold, see D36971

1шт.
