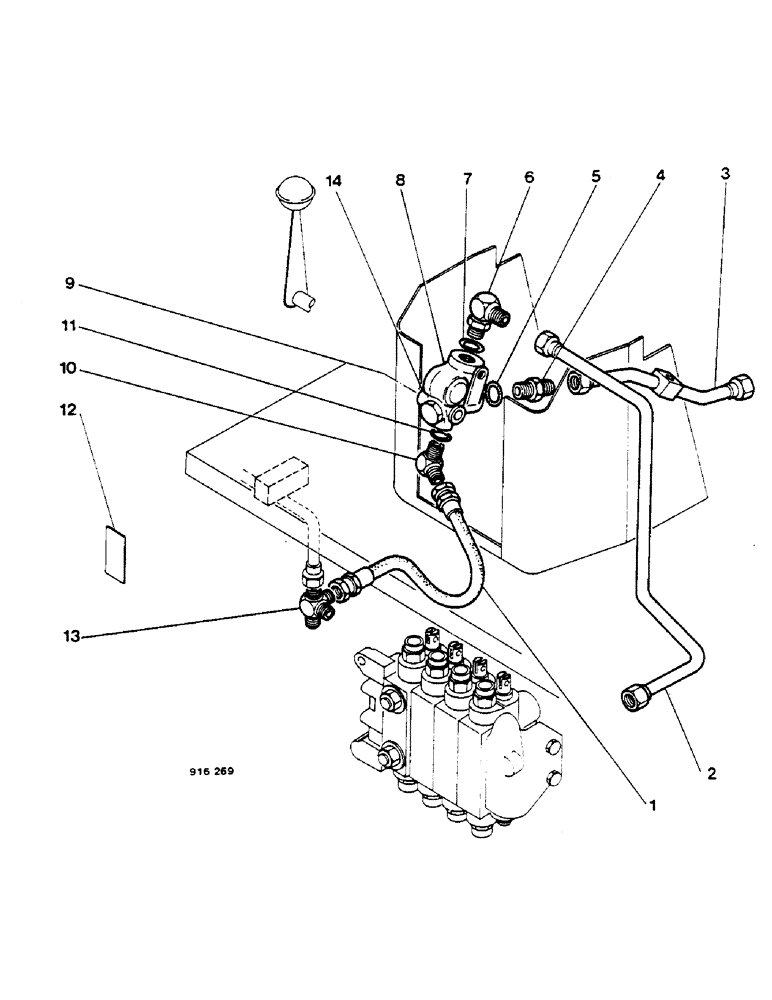

Запчасти Case 580F (18) - AXIAL BACKHOE - HYDRAULIC SYSTEM - BOOM LOCK UP TO NO. 3.826.343.

1

D69650

HOSE

1шт.

2

D74247

TUBE

1шт.

3

E41476

TUBE

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D56102

VALVE

See 580F basic catalog for composition of D56102

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

2шт.

10

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

1шт.

12

321-3616

DECAL French

1шт.

13

D69651

TEE

1шт.

14

D95557

SPACER

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
