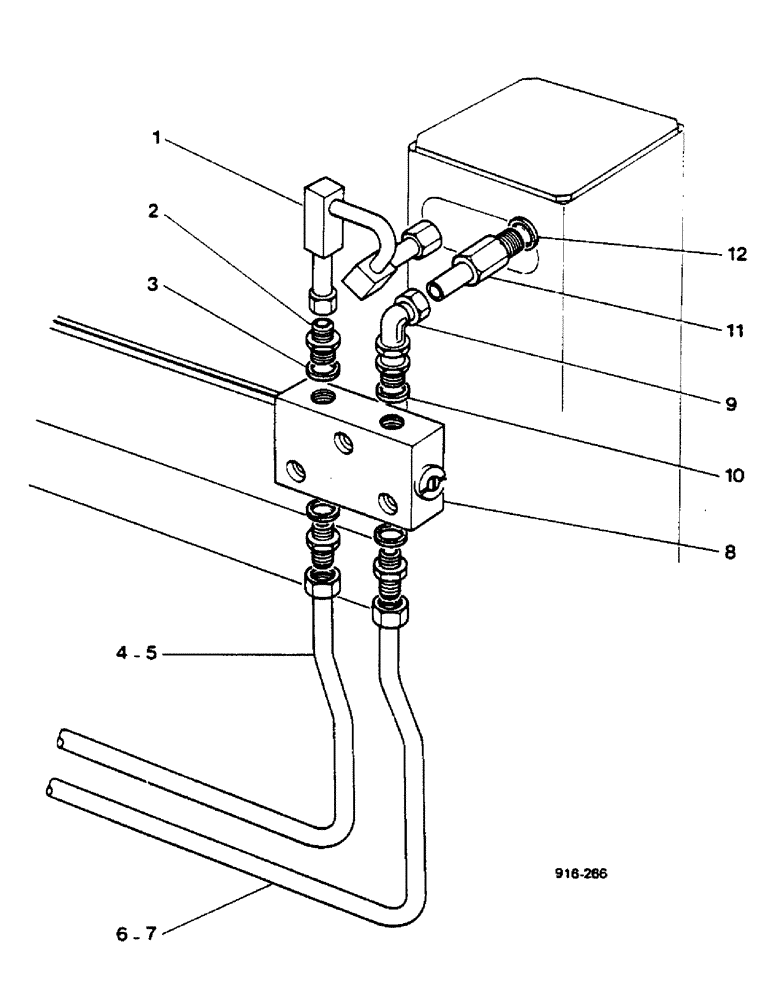

Запчасти Case 580F (12) - SIDE-SHIFT BACKHOE - SAFETY VALVE - STABILIZER CYLINDER

1

E41262

CONNECTOR, ELEC

CONNECTOR Tube - RH

1шт.

E41263

CONNECTOR, ELEC

CONNECTOR Tube - LH

1шт.

2

E37132

CONNECTOR, ELEC

CONNECTOR

3шт.

3

E41983

GASKET

1шт.

4

E41272

TUBE

RH

1шт.

5

E41274

TUBE

LH

1шт.

6

E41268

TUBE

RH

1шт.

7

E41270

TUBE

LH

1шт.

8

E37283

LOCK VALVE

See Figure 32

1шт.

9

E37149

ELBOW UNION

Union Elbow

1шт.

10

E41984

GASKET

1шт.

11

E37130

CONNECTOR, ELEC

CONNECTOR

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
