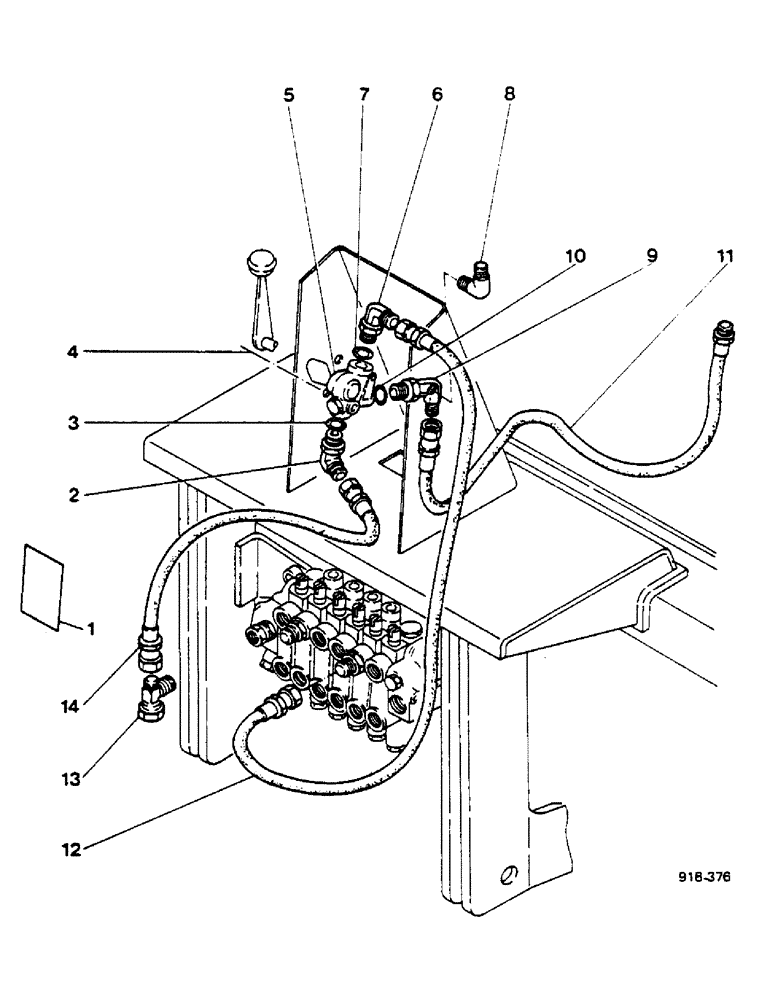

Запчасти Case 580F (24) - SIDE SHIFT - BOOM LOCK HYDRAULICS STARTING FROM NO. 3.826.344

1

321-3616

DECAL French

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

4

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

195-25

WASHER,3/8"

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

2шт.

5

D56102

VALVE

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

9

E41893

ELBOW UNION

Union Elbow

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

D73947

HOSE

SPARE PART

1шт.

12

D73935

HOSE

SPARE PART

1шт.

13

218-5489

FITTING

1шт.

14

D73948

HOSE

SPARE PART

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
