Запчасти Case 580F (02) - SAFETY DEVICE UP TO NO. 3.826.343

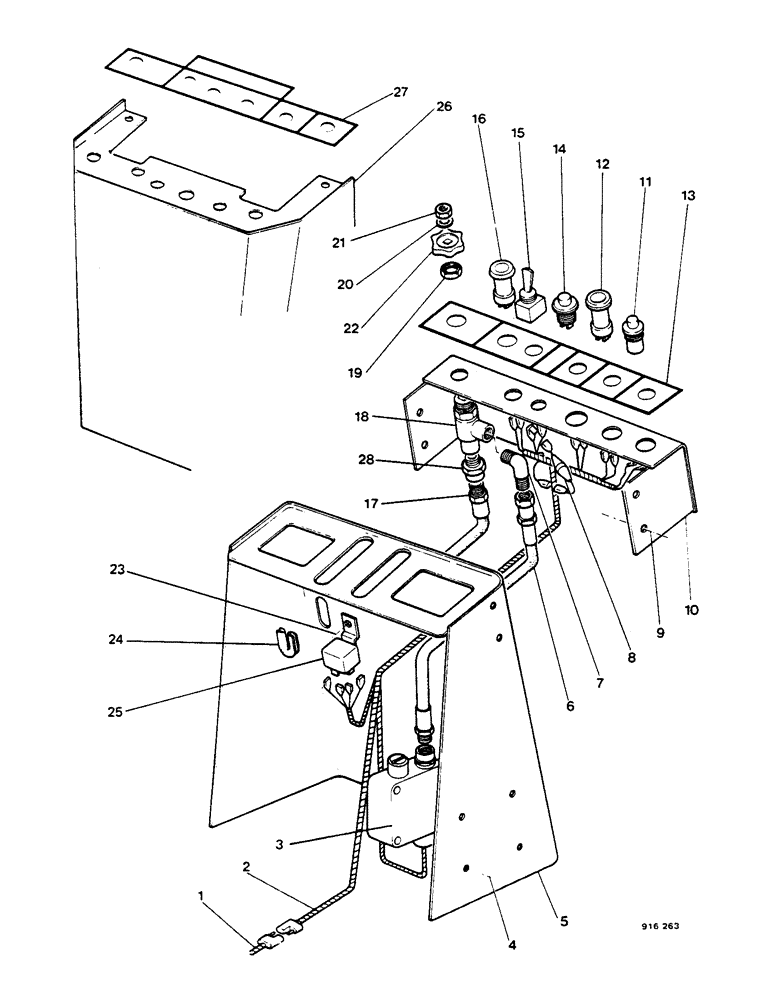

Схема запчастей Case 580F - (02) - SAFETY DEVICE UP TO NO. 3.826.343
4
12
5
16
2
24
10
21
19
6
15
7
27
11
26
17
1
23
25
22
18
3
8
28
14
20
13
9

Артикул

Название

Примечание

Количество

1

E41529

HARNESS

1шт.

2

E41467

HARNESS

1шт.

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

3

E41469

SOLENOID SWITCH

pressure, See Figure 34

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

5

E41851

PANEL, (5 levers) For Sideshift

1шт.

5

E41917

PANEL, (2 levers) For Sideshift

1шт.

6

E41481

HOSE ASSY.

For Sideshift

1шт.

E41480

HOSE ASSY.

For Axial

1шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

For Sideshift

1шт.

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

For Axial

1шт.

8

E37772

FUSE

HOLDER

1шт.

E37773

FUSE

10A

1шт.

9

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

10

E41416

PANEL instrument For Sideshift

1шт.

11

D72965

BUTTON

1шт.

12

T641648

SIGHTGLASS

1шт.

E41853

BULB

2 W

1шт.

13

321-4862

DECAL, For Sideshift

1шт.

14

E15246

IGNITION SWITCH

1шт.

15

D67251

SWITCH

1шт.

16

E41426

LIGHT

1шт.

E41853

BULB

2 W

1шт.

17

E41482

HOSE ASSY.

1шт.

E41480

HOSE ASSY.

For Axial

1шт.

18

E41460

LOCK VALVE

See Figure 30

1шт.

19

REF

INSTRUCTION

NUT, See Figure 30

1шт.

20

REF

INSTRUCTION

WASHER, See Figure 30

1шт.

21

REF

INSTRUCTION

NUT, See Figure 30

1шт.

22

E41459

WHEEL (STEERING)

KNOB

1шт.

23

814-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

892-1105

LOCK WASHER,M5

1шт.

825-1105

NUT,M5, Cl 8

1шт.

24

E40631

GUARD, For Sideshift

1шт.

25

E41428

RELAY

1шт.

26

E41852

PANEL, For Axial

1шт.

27

3214848

DECAL, For Axial

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

For Axial

1шт.

Выбрано товаров: 39
