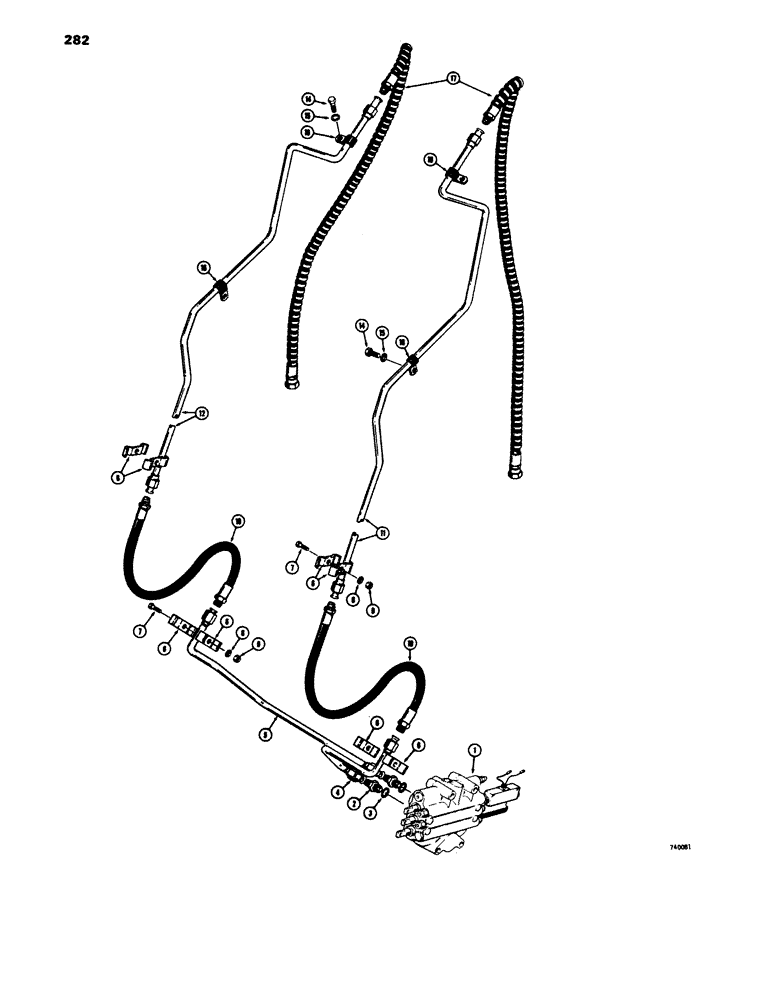

Запчасти Case 680E (282) - LOADER HYDRAULICS, CONTROL VALVE TO CLAM CYLINDERS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader, 3 spool, see figures 298 and 300 (1)

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L58406

TUBE,0.625" OD

- valve to R.H. lift arm tube, at valve

1шт.

5

L54808

TUBE - valve to L.H. lift arm tube, at valve

1шт.

6

A12032

CLAMP

- tube

8шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

4шт.

10

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - valve to arm lift tubes, 37" (940 mm) long

2шт.

11

L58402

TUBE ASSY.,0.625" OD x 70.2, 5.9" L

TUBE - valve to clam cylinder, at R.H. lift arm

1шт.

12

L58404

TUBE,0.625" OD

- valve to clam cylinder, at L.H. lift arm

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

49771

CLAMP

- tube to tapped block

4шт.

17

L50629

HOSE ASSY.

HOSE - lift arm tubes to clam cylinders, 50" (1270 mm) long

2шт.

18

218-776

PLUG,7/8"-14, 37 Degree

- hex. head, 5/8", used when bucket is removed to plug clam cylinder hoses, not shown

2шт.
