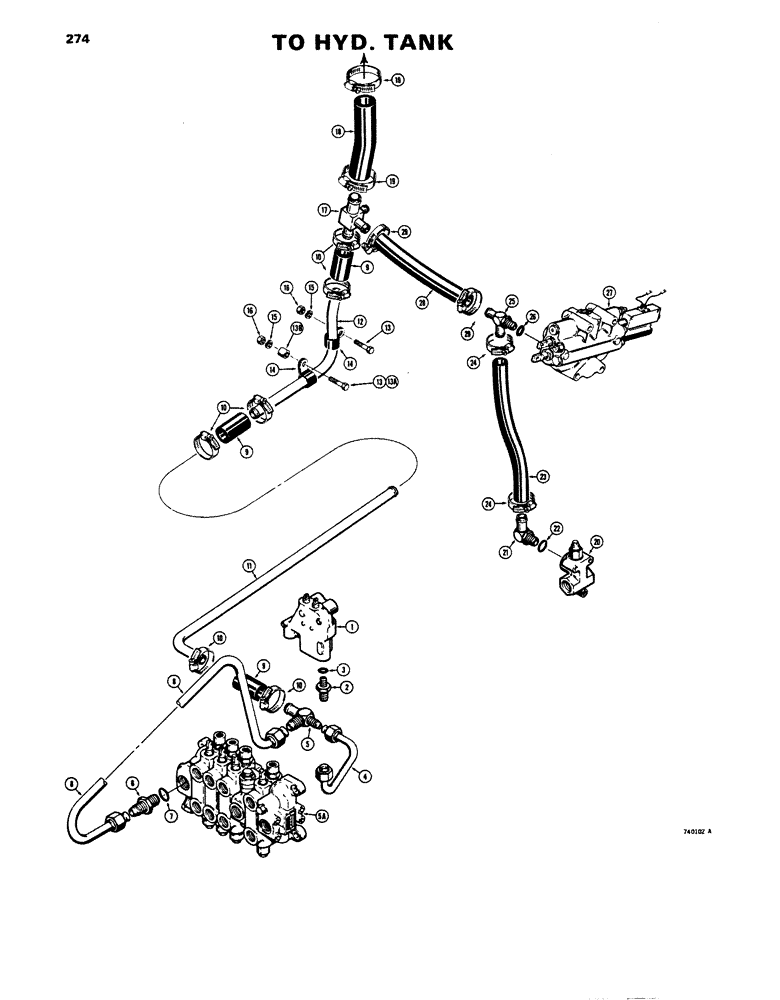

Запчасти Case 680E (274) - EQUIPMENT HYDRAULIC CIRCUIT, RETURN LINES, BEFORE TRACTOR SN (35) - HYDRAULIC SYSTEMS

1

D62348

VALVE

- control, stabilizer, figure 312

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

L55818

TUBE ASSY.

TUBE - return, from stabilizer control valve

1шт.

5

L55918

TEE

FITTING - valve return, 3-way

1шт.

5a

REF

INSTRUCTION

VALVE - backhoe control, see figure 314

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male, Straight, Incl. Ref. 7 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

L55820

TUBE ASSY.

TUBE - return, from backhoe control valve

1шт.

9

L70343

HOSE

- return, low pressure

3шт.

10

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

6шт.

11

L55824

TUBE,1.25" OD x 38.45, 5.22" L

- return, backhoe valve, rear

1шт.

12

L55825

TUBE,1.85" OD

- return, backhoe valve, front

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13a

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13b

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - clamp

1шт.

14

R17416

CLAMP

- tube

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

17

L55399

BLOCK

- junction, return hose

1шт.

18

L55951

HOSE,1.25" ID x 9.00", SAE 100R3

Return, Block to Hydraulic Tank 1.25" ID x 9.00", SAE 100R3

1шт.

19

214-351

CLAMP,#40, 2.12"-2.44", T-Bolt

- hose

2шт.

20

REF

INSTRUCTION

VALVE - relief, hydraulic, see page 332 for proper valve

1шт.

21

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Includes Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

23

L71137

HOSE,1.00" ID x 26.00"

1.00" ID x 16.00", Return, Relief Valve, If Used

1шт.

23

L59001

HOSE ASSY.

HOSE - return, relief valve, 14" (355 mm) long, used with Gresen relief valve

1шт.

23

L70287

HOSE,1.00" ID x 22.00"

Return, Relief Valve, Used With Parker Hannifin Relief Valve 1.00" ID x 22.00"

1шт.

24

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

25

L58992

TEE

FITTING - special, return, at loader valve, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

27

REF

INSTRUCTION

VALVE - hydraulic, loader, see pages 299 and 301 for proper valve

1шт.

28

L70286

HOSE,1.00" ID x 18.00"

Return, Loader Valve to Junction Block 1.00" ID x 18.00"

1шт.

29

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.
