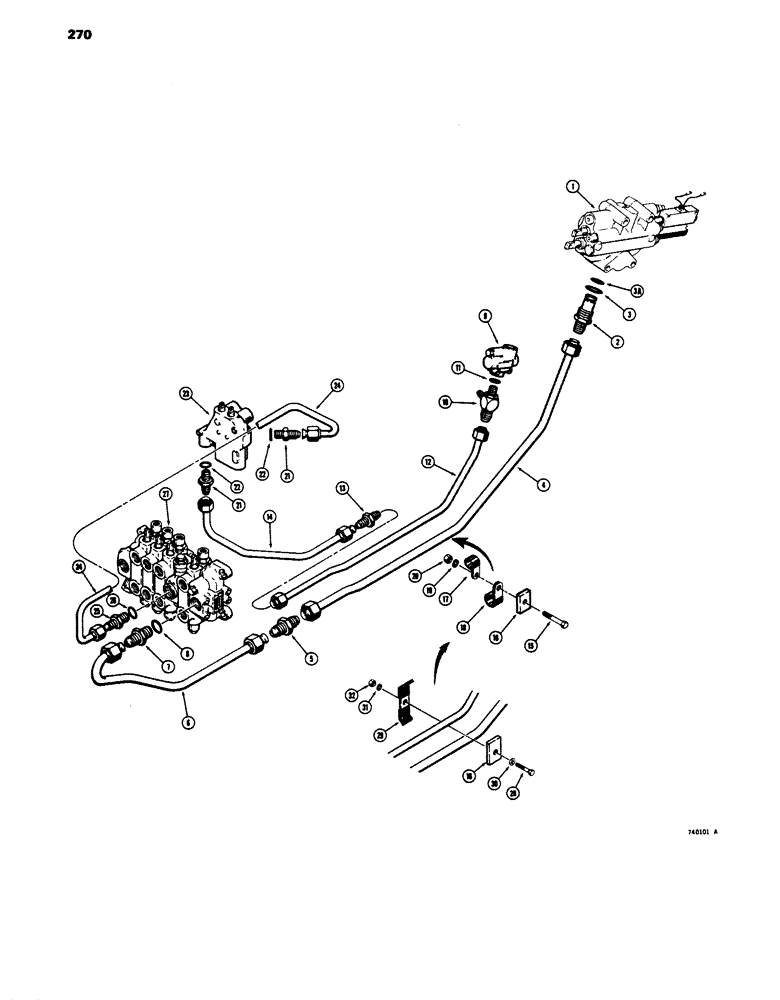

Запчасти Case 680E (270) - EQUIPMENT HYDRAULIC CIRCUIT, TO BACKHOE CONTROL VALVE, EARLY PRODUCTION (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader, see figure 298 for proper valve, Includes: Ref. 2 - 3A

1шт.

2

L30446

FITTING

- straight, special

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

3a

L32680

RING

O-RING - small

1шт.

4

L55810

TUBE

- loader valve to backhoe valve, end inlet, front

1шт.

5

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - tube

1шт.

6

L55814

TUBE ASSY.,1" OD

TUBE - loader valve to backhoe valve, end inlet, rear

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male, Straight, Incl. Ref. 8 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

9

L54770

LOCK VALVE

VALVE - flow divider, parts list figure 330

1шт.

See figures 221 and 223 for the backhoe and steering hydraulic circuit from the pump to flow divider valve.

1шт.

10

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

FITTING - adjustable tee, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

12

L55812

TUBE,0.75" OD

- flow divider valve to stabilizer control valve, front

1шт.

13

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FITTING - tube

1шт.

14

L55816

TUBE - flow divider valve to stabilizer control valve, rear 0.75" OD

1шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

D37116

SPACER - tube clamp (Replaces L55306)

1шт.

17

NLS

NO LONGER SERVICED

CLAMP - tube

1шт.

18

49891

CLAMP

- tube

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

20

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

23

D62348

VALVE

- control, stabilizer, parts list figure 312

1шт.

24

L55822

TUBE - stabilizer valve to backhoe control valve 0.75" OD

1шт.

25

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

27

G34669

VALVE

- backhoe control, parts list figure 314

1шт.

28

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

29

D40236

CLAMP

- tube mounting

1шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.
