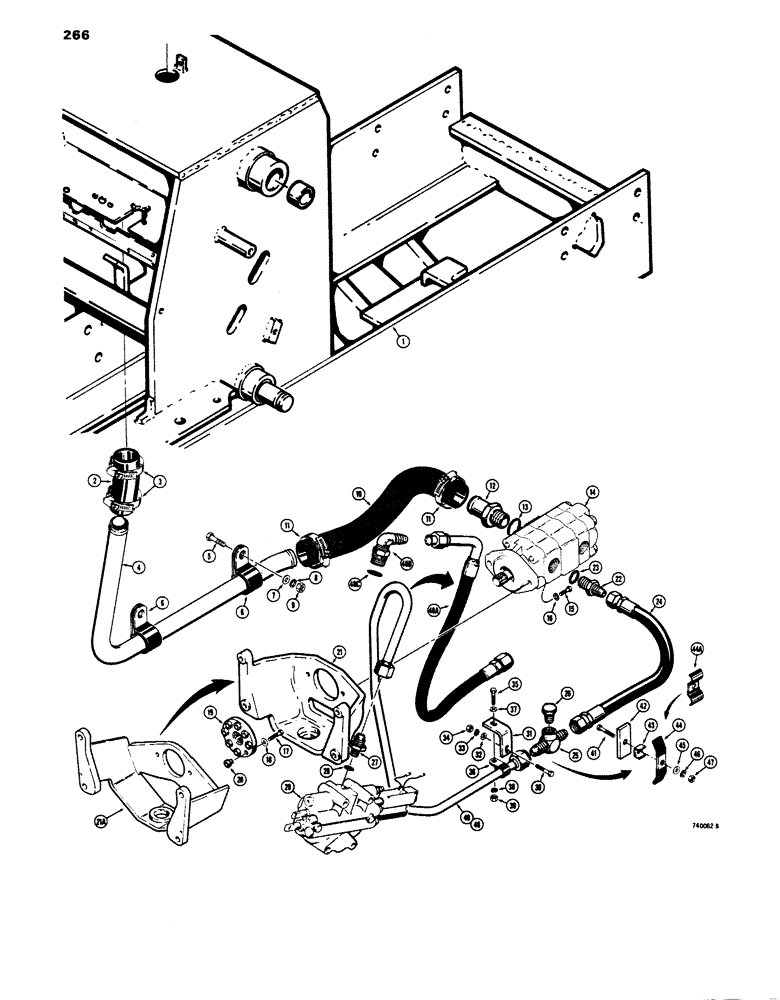

Запчасти Case 680E (266) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO LOADER VALVE, USED (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TANK - hydraulic oil reservoir, seefigure 422 for complete chassis

1шт.

2

L55950

LARGE HOSE

HOSE - suction, at tank, 2" (51 mm) I.D. x 5" (127 mm) long

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

4

L55826

TUBE,2" OD

- suction, rear

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

R14097

CLAMP

-, Serial Range: tube-chassis

2шт.

7

95-8

WASHER,1/2"

flat 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

95

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

2шт.

10

L55953

FLEXIBLE HOSE,2.00" ID x 23.00"

HOSE, , Suction, At Pump 2.00" ID x 23.00"

1шт.

L55953 suction hose - Now subs to slightly longer hose (L105300). Refer CE Service Bulletin 5-81 for alternative solution if failures are still a problem due to bend radius.

1шт.

This is part nbr F35196 cap.

1шт.

11

214-351

CLAMP,#40, 2.12"-2.44", T-Bolt

- hose

2шт.

12

L57792

FITTING

- adapter, (At pump outlet), Includes: Ref. 13

1шт.

13

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- fitting

1шт.

14

L55247

PUMP

- hydraulic, equipment, parts list figure 334

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

113-2611

PREV TORQUE BOLT,Locking, 7/16"-14 x 1 1/2", G5

BOLT - special, coupling mounting

8шт.

18

195-29

WASHER,7/16"

- flat, 7/16"

8шт.

L16692

COUPLING, BREAK AWAY

COUPLING - pump to crankshaft pulley, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

20

G36905

BLOCK

BUSHING - hub

8шт.

21

L50435

BRACKET

- pump and engine mounting, order L72189, Includes: Ref. 22 - 28

1шт.

21a

L72189

BRACKET

- pump and engine mounting, Includes: Ref. 22 - 28

1шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

Should be o-ring 237-6016 to fit ref. no. 22

1шт.

24

L55955

HOSE ASSY.

HOSE - pump to loader valve, 26-1/2" (673 mm) long

1шт.

25

218-583

TEE,1 5/16"-12 x 1 1/16"-12, 37 Degree, 3/4"-14, NPTF Fem Br

FITTING - pressure check, loader valve

1шт.

26

221-655

PLUG,Hex Hd, 3/4"-14

- pressure check, 3/4" NPT

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

29

REF

INSTRUCTION

VALVE - hydraulic, loader control, see figure 298 and 300 for proper valve

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", used with 90 clamp bracket

1шт.

31

L55882

BRACKET - support, tube clamp, used with 90 bracket

1шт.

32

95-8

WASHER,1/2"

flat, used with 90 clamp bracket 1/2"

1шт.

33

92-8

LOCK WASHER,1/2"

used with 90 clamp bracket 1/2"

1шт.

34

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC, used with 90 clamp bracket

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used with 90 clamp bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

36

R14668

CLAMP

- tube, used with 90 bracket

1шт.

37

95-6

WASHER,3/8"

- flat, , used with 90 clamp bracket 3/8"

1шт.

38

92-6

LOCK WASHER,3/8"

used with 90 clamp bracket 3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC, used with 90 clamp bracket

1шт.

40

L55800

TUBE,1" OD

- pressure, at loader valve, used with 90 clamp bracket

1шт.

41

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3", used with flat clamp block

1шт.

42

D37116

BLOCK - spacer, tube mounting, used with flat clamp block

1шт.

43

L59801

CHANNEL - tube mounting, if used, used with flat clamp block

1шт.

44

L17788

CLAMP

- tube mounting, used with flat clamp block

1шт.

44a

L78057

CLAMP

- tube, not used with Ref. 43, if used, used with flat clamp block

1шт.

45

95-6

WASHER,3/8"

- flat, , used with flat clamp block 3/8"

1шт.

46

92-6

LOCK WASHER,3/8"

used with flat clamp block 3/8"

1шт.

47

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC, used with flat clamp block

1шт.

48

L70340

TUBE,1" OD

- pressure, at loader valve, used with 2 spool valve only , used with flat clamp block, Serial Range: -9124952

1шт.

48

L59816

TUBE

- pressure at loader valve, used with 3 spool valve only , used with flat clamp block, Serial Range: -9125074

1шт.

48

L77020

TUBE,1" OD

- pressure, at loader valve, used with 2 spool valve only , used with flat clamp block, Start Serial: 9124952

1шт.

48

L77011

TUBE,1" OD

- pressure, at loader valve, used with 3 spool valve only , used with flat clamp block, Start Serial: 9125074

1шт.

48a

L71568

HOSE ASSY.

HOSE - pressure, at loader valve, used in place of tube on some models, used with flat clamp block

1шт.

L59126

CLAMP - used with L71568 hose only, not shown, used with flat clamp block

1шт.

48b

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

at valve, Used with hose, used with flat clamp block 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

48c

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting, used with flat clamp block

1шт.
