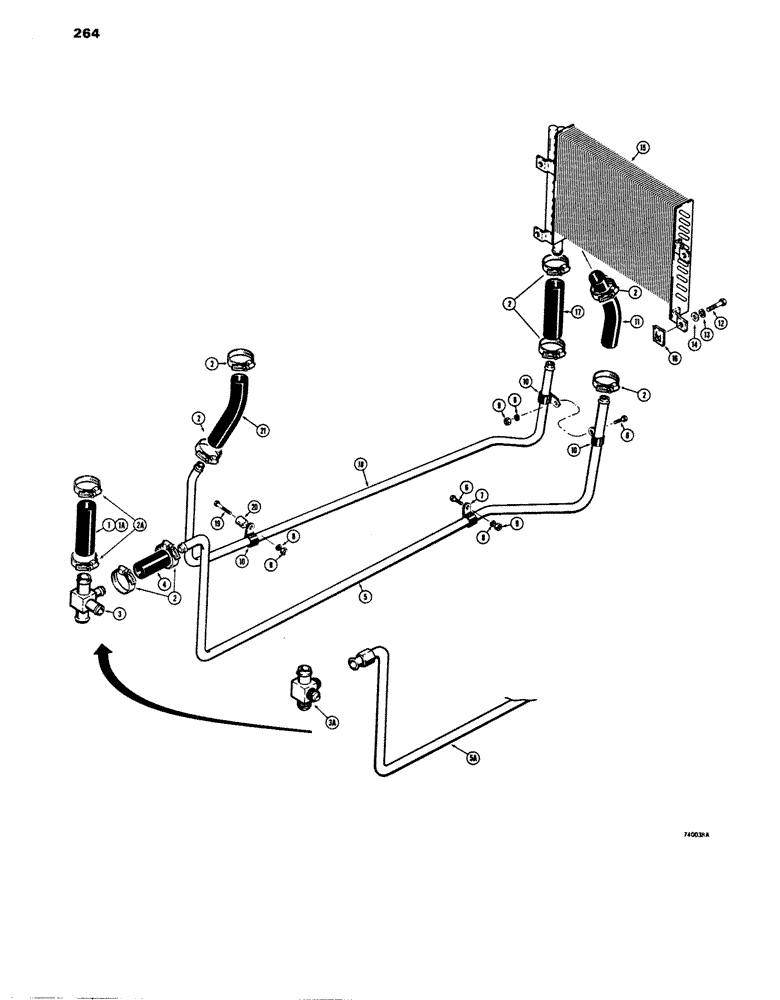

Запчасти Case 680E (264) - EQUIPMENT HYDRAULIC CIRCUIT, OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

TANK - hydraulic oil, see page 421 for complete chassis and related parts

1шт.

1

L55951

HOSE,1.25" ID x 9.00", SAE 100R3

Return, Hydraulic Oil, Used Before Tractor SN. 9124781 1.25" ID x 9.00", SAE 100R3

1шт.

1a

L77084

HOSE ASSY.

HOSE - return, hydraulic oil, 1-1/4" (32 mm) I.D. x 11-1/2" (292 mm) long, used on tractor sn. 9124781 and after

1шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6-8шт.

2a

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

3

L55399

BLOCK

- junction, used before tractor sn. 9124781

1шт.

3a

L77083

BLOCK

- junction, used on tractor sn. 9124781 and after

1шт.

4

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Block to Cooler Tube 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

5

L57656

TUBE,0.75" OD

- junction block to cooler, used before tractor sn. 9124781

1шт.

5a

L77086

TUBE,0.75" OD

- junction block to cooler, used on tractor sn. 9124781 and after

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

51200329

CLIP

CLAMP - oil cooler tubes

1шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

3шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube mounting

3шт.

11

R21518

LARGE HOSE

HOSE - oil cooler, 3/4" (19 mm) I.D. x 12" (305 mm) long

1шт.

12

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

15

L43582

COOLER

- hydraulic oil

1шт.

16

131-607

NUT

- "J" type, 5/16" - 24 NF

4шт.

17

D95231

LARGE HOSE

HOSE - oil cooler, 3/4" (19 mm) I.D. x 8" (203 mm) long

1шт.

18

L57652

TUBE,0.75" OD

- cooler to reservoir

1шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

20

A19774

BUSHING

SPACER - tube clamp

1шт.

21

L13707

HOSE,0.75" ID x 1.25" OD

0.75" ID x 5.00", SAE 100R2, Return, Cooler to Reservoir

1шт.
