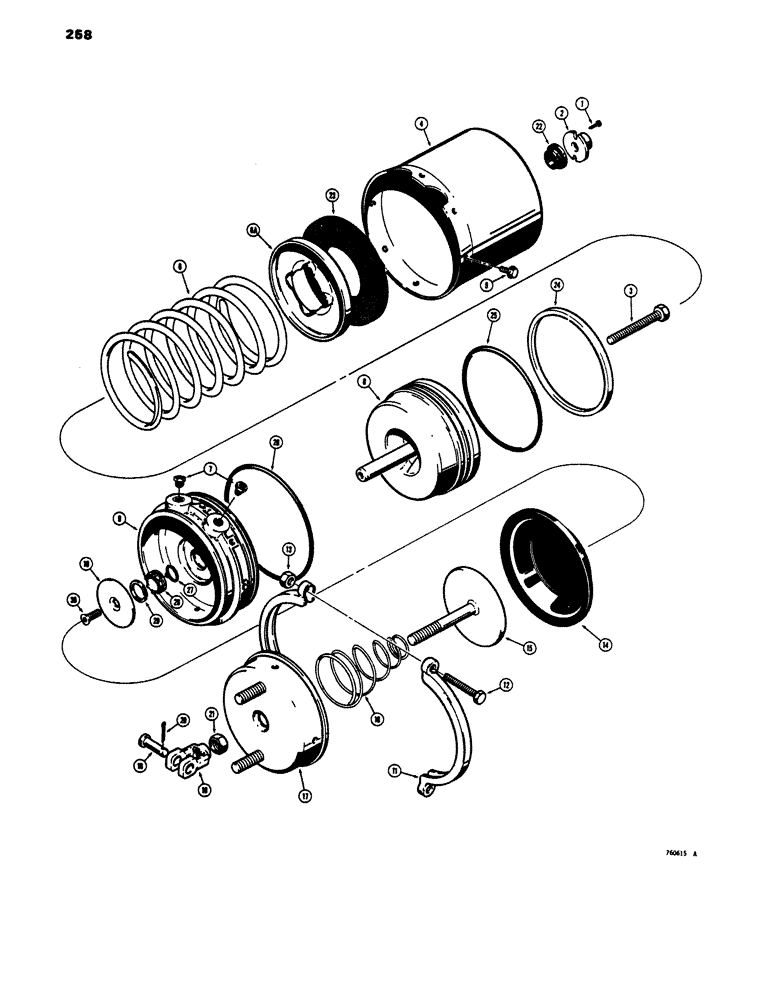

Запчасти Case 680E (258) - BRAKE SYSTEM, L73081 BRAKE CHAMBER (33) - BRAKES & CONTROLS

L73081

CYLINDER BLOCK

CHAMBER ASSEMBLY - brake, Includes: Ref. 1 - 31

2шт.

1

187-835

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, #10-32 NC x 5/8"

2шт.

2

L35621

WASHER

- stop

1шт.

3

113-361

HHCS - 7/16" - 14 NC x 3-3/4" (Replaces 113-330) Hex, 7/16"-14 x 3 3/4", G5, Full Thd

1шт.

4

D72838

CYLINDER

- brake chamber

1шт.

5

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

- flange head type

8шт.

6

L35620

VALVE SPRING

SPRING - brake chamber

1шт.

6a

L35623

VALVE SPRING

LOCATOR - spring

1шт.

7

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

FITTING - 3/8" to 1/4"

2шт.

8

D72839

PISTON

ASSEMBLY - brake

1шт.

9

D72840

BULKHEAD - brake chamber

1шт.

10

L35609

WASHER

FOLLOWER - piston rod

1шт.

L35605

CLAMP

ASSEMBLY - brake chamber, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CLAMP - brake chamber

2шт.

12

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

13

25-176

NUT,3/8"-24, G5, Hvy

- hex., heavy, 3/8" - 24 NF

2шт.

14

L35610

DIAPHRAGM

- brake chamber

1шт.

15

L35626

ROD

PUSH ROD - brake chamber

1шт.

16

L35615

VALVE SPRING

SCREW - return, push rod

1шт.

17

L35614

PLATE ASSY.

PLATE - non-pressure

1шт.

L35613

YOKE

ASSEMBLY - brake connecting

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE - brake

1шт.

19

L33649

AXLE PIN

PIN - yoke

1шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex., lock, 5/8" - 18 NF

1шт.

L35612

KIT

- repair, brake chamber, contains components to service two complete chambers, Includes: Ref. 22 - 31

1шт.

22

L35622

PLUG

- snap

2шт.

23

L35618

FILTER CARTRIDGE

FILTER - air

2шт.

24

L35606

RING

- wiper, felt

2шт.

25

T29460

O-RING,6.225" ID x 6.775" OD x 0.275"

RING - piston seal

2шт.

26

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

SEAL - ring, bulkhead

2шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING - seal, rod

2шт.

28

L35608

BUSHING

- nylon, rod

2шт.

29

A36277

SNAP RING,1.125", Int, #112

nylon bushing 1.125", Int, #112

2шт.

30

164-99

SCREW - machine, hex. socket head, 5/16" - 18 NC x 5/8"

2шт.

31

NSS

NOT SOLD SEPARAT

LUBRICANT - TR3, 8 oz. (236.5 ml) tube, not shown

1шт.
