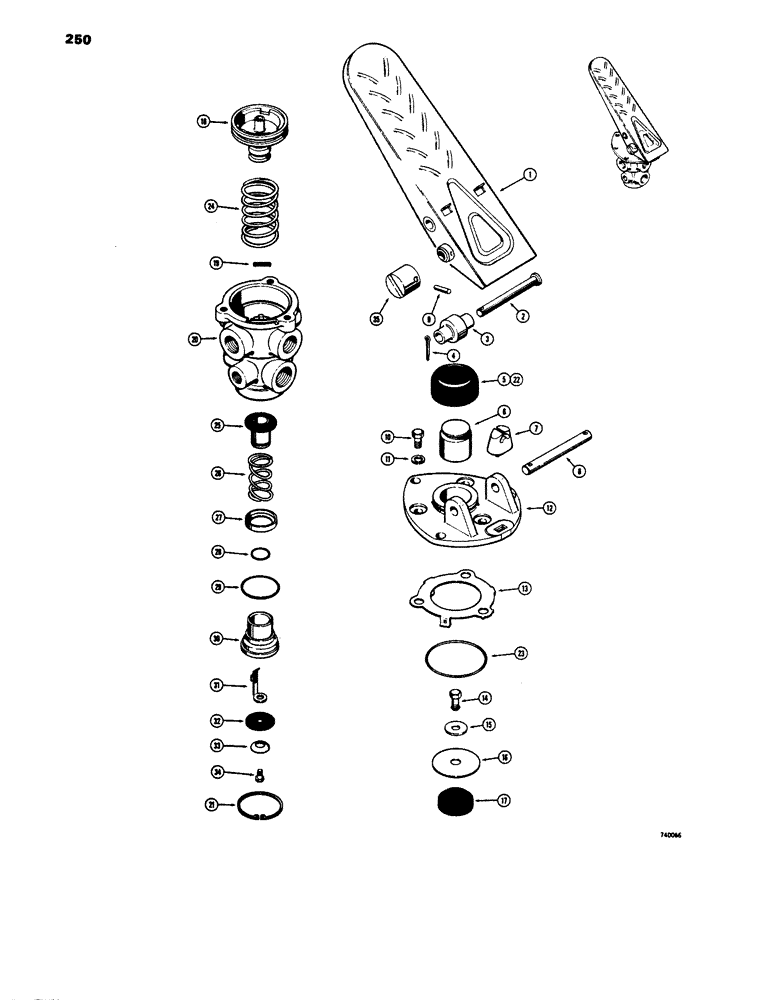

Запчасти Case 680E (250) - BRAKE SYSTEM, L53600 AND L53601 TREADLE AND BRAKE VALVES (33) - BRAKES & CONTROLS

L53600

TREADLE AND VALVE ASSEMBLY - brake, L.H., before tractor sn. 9118497, Includes: Ref. 1 - 34

1шт.

L53601

VALVE

TREADLE AND VALVE ASSEMBLY - brake, R.H., before tractor sn. 9118497, Includes: Ref. 1 - 34

1шт.

L71274

VALVE

TREADLE AND VALVE ASSEMBLY - brake, R.H., tractor sn. 9118497 and after, order L73042 treadle for service, Includes: Ref. 1 - 34

1шт.

L71275

VALVE

TREADLE AND VALVE ASSEMBLY - brake, L.H., tractor sn. 9118497 and after, order L73042 treadle, Includes: Ref. 1 - 34

1шт.

L73042

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, R.H. and L.H., Includes: Ref. 1 - 34

2шт.

1

L32927

PEDAL

TREADLE - brake valve, also order L53639 boss for service of L53600 or L53601 only

1шт.

1

D73635

VALVE

TREADLE - brake valve, used with L73042 treadle only

1шт.

2

L31367

PIN

- roller, treadle valve

1шт.

3

L32676

ROLLER

- treadle valve

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L31364

BOOT

COVER - treadle, brake (Included in L31806 repair kit)

1шт.

6

L32925

PLUNGER

- treadle, brake

1шт.

7

L31362

BUTTON

- stop, treadle

1шт.

8

L31465

PIN

- fulcrum, treadle

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Fulcrum pin 1/8" x 7/8", Slotted

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

12

L32924

PLATE ASSY.

PLATE - mounting, brake treadle

1шт.

L31360

VALVE

ASSEMBLY - brake

1шт.

13

L31382

- valve

1шт.

L31380

PISTON

ASSEMBLY - valve, Includes: Ref. 14 - 18

1шт.

14

L31384

LOCK BOLT,Hex, 1/4" - 20 x 5/8"

BOLT - locking, special

1шт.

15

L31387

WASHER

- compression, spring

1шт.

16

L31386

SEAT

- spring, piston

1шт.

17

L31385

SPRING

- rubber piston

1шт.

18

L31383

PISTON

- valve

1шт.

19

L31459

FILTER

- vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , washer 1.625", Int, #162

1шт.

L31806

KIT

- repair, valve (also includes Ref. 5 above), Includes: Ref. 23 - 34

1шт.

23

L31381

O-RING,2 1/8" ID x 2 3/8" OD x 1/8"

- piston

1шт.

24

L31385

SPRING

- return, piston (Replaces L31379)

1шт.

Must now order complete brake valve assy.

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

28

L31376

RETAINER

O-RING - valve

1шт.

28

L31377

O-RING,5/8" ID x 3/4" OD x 1/16"

- exhaust check valve

1шт.

30

L31370

SEAT

- check valve, exhaust

1шт.

31

L31371

SPRING

- preload, inlet valve

1шт.

32

L31372

DIAPHRAGM

- valve

1шт.

33

L31373

WASHER

- diaphragm, valve

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, slotted head, #8-32 NC x 3/8"

1шт.

35

L53639

BOSS

- slotted, treadle locking, if used

1шт.
