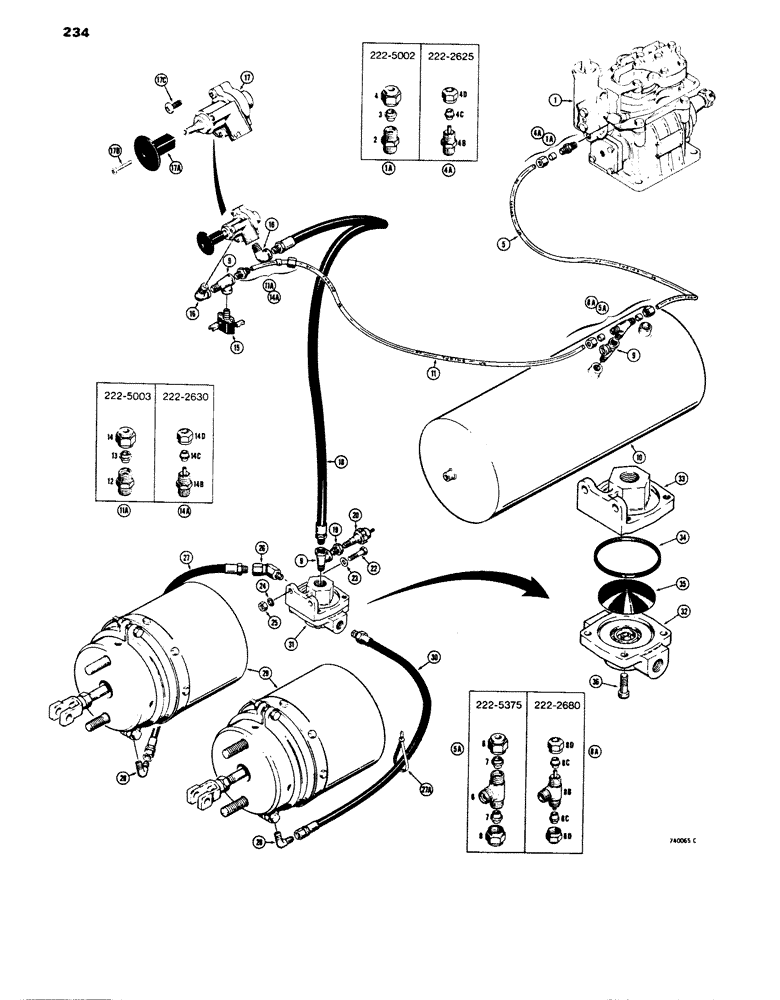

Запчасти Case 680E (234) - BRAKE SYSTEM, PARKING BRAKE CONTROLS AND QUICK RELEASE VALVE (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

COMPRESSOR - air, see figure 238-246

1шт.

1a

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - straight, order ref. 4A, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

3

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

4

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

4a

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - straight, if used, Includes: Ref. 4B - 4D

1шт.

4b

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

4c

222-2610

SLEEVE

- fitting

1шт.

4d

222-2600

NUT

NUT - fitting

1шт.

5

L48192

TUBE,0.25" OD

- governor to reservoir, before tractor sn. 9121647

1шт.

5

L46110

TUBE,17" L

- governor to reservoir, tractor sn. 9121647 and after

1шт.

5a

222-5375

FITTING ASSEMBLY - tee, reservoir, order Ref. 8A, Includes: Ref. 6 - 8 1/2"-20 x 1/4" NPT Br

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

7

222-5047

SLEEVE,1/4" Tube

- fitting

2шт.

8

222-5060

NUT,1/2"-20

NUT - fitting

2шт.

8a

222-2680

TEE,7/16"-14 x 1/4" NPT Br

FITTING ASSEMBLY - tee, reservoir, if used, Includes: Ref. 8B - 8D

1шт.

8b

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

8c

222-2610

SLEEVE

- fitting

2шт.

8d

222-2600

NUT

NUT - fitting

2шт.

9

221-1691

TEE,Street, 1/4" NPT

FITTING - tee, Street, 1/4" NPT

3шт.

10

L57152

RESERVOIR ASSY.

RESERVOIR - air

1шт.

11

L48191

TUBE,0.25" OD

- reservoir to parking brake valve

1шт.

11a

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

FITTING ASSEMBLY - straight, order Ref. 14A, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

13

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

14

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

14a

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - straight, if used, Includes: Ref. 14B - 14D

1шт.

14b

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

14c

222-2610

SLEEVE

- fitting

1шт.

14d

222-2600

NUT

NUT - fitting

1шт.

15

L48480

SWITCH

- buzzer

1шт.

16

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

2шт.

L57682

VALVE

- parking brake, Includes: Ref. 17 - 17C

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

17a

L36025

KNOB

- valve

1шт.

17b

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- machine, Phillips head, #8-32 NC x 3/8"

1шт.

17c

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- 1/4" - 20 NC x 1/2"

2шт.

17d

D80516

KIT

- repair, parking brake valve, not shown

1шт.

#17D- PICTURED IN W36 BOOK D1267 - PG 7-371- KIT INCLUDES VALVE SPRING, STEM O-RING, SEAL O-RING, VALVE POPPET, POPPET SCREW ALL NSS 10-14-96 PJD

1шт.

18

L57165

HOSE ASSY.

HOSE - parking brake, 44" (1117 mm) long

1шт.

19

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - 1/4" NPT to 1/8" NPT

1шт.

20

L57937

SWITCH

- brake warning light

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

26

218-936

ELBOW,45 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

ADAPTER - swivel union, 45 deg.

1шт.

27

L58459

HOSE ASSY.

HOSE - to L.H. brake chamber, 24" (610 mm) long, Serial Range: -9124666

1шт.

27

L53615

HOSE ASSY.

HOSE - to L.H. brake chamber, 21" (533 mm) long, Start Serial: 9124666

1шт.

27a

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, hoses, if used

2шт.

28

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 1/4" NPT to 9/16" JIC

2шт.

29

REF

INSTRUCTION

CHAMBER - air brakes, see figure 256 and 258

2шт.

30

L53615

HOSE ASSY.

HOSE - to R.H. brake chamber, 21" (533 mm) long

1шт.

31

L71758

VALVE

- quick release, brake, Includes: Ref. 32 - 36

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

33

D72740

COVER

- valve

1шт.

34

D73718

SEAL ASSY.

SEAL - cover

1шт.

35

D72741

DIAPHRAGM

- valve

1шт.

36

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" - 20 NC x 3/4"

4шт.
