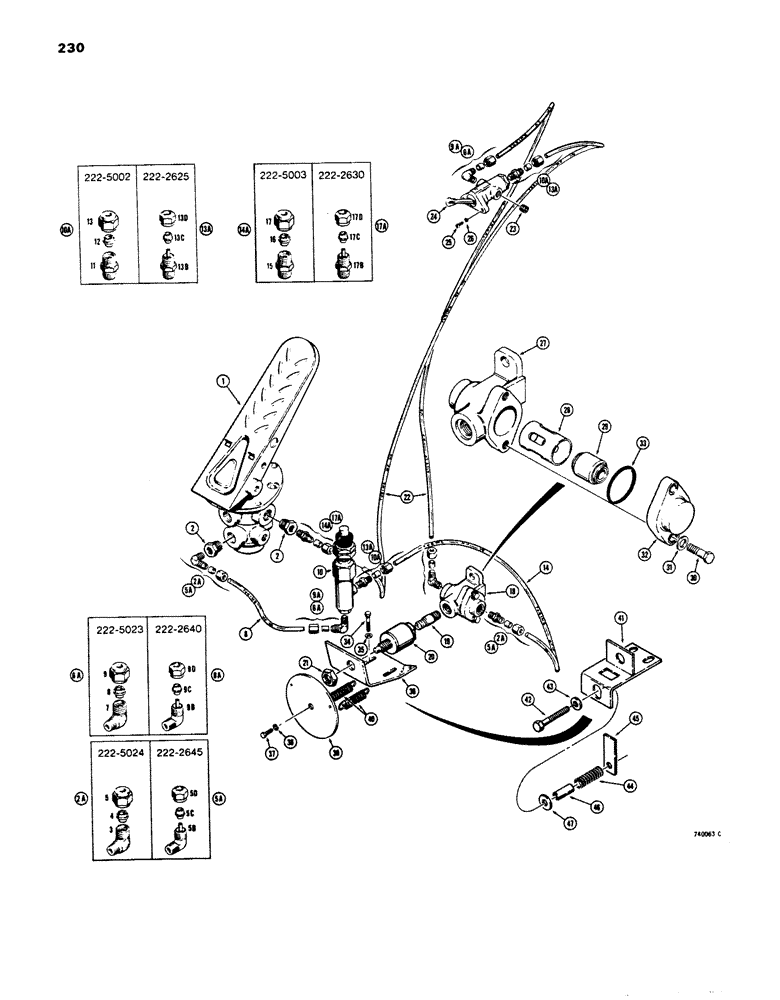

Запчасти Case 680E (230) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

TREADLE - brake valve, R.H., parts list figure 166

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - 1/2" to 1/4" NPT

2шт.

2a

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

FITTING ASSEMBLY - 90 deg., male, order Ref. 5A, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

4

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

5

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

5a

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING ASSEMBLY - 90 deg., male, if used (Replaces 222-2695), Includes: Ref. 5B - 5D

2шт.

5b

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

5c

222-2610

SLEEVE

- fitting

1шт.

5d

222-2600

NUT

NUT - fitting

1шт.

6

L16536

TUBE,0.25" OD x 8" L

- treadle to floor mounted clutch cutout valve

1шт.

6a

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - 90 deg., male, order Ref. 9A, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

8

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

9

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

9a

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING ASSEMBLY - 90 deg., male, if used

2шт.

9b

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

9c

222-2610

SLEEVE

- fitting

1шт.

9d

222-2600

NUT

NUT - fitting

1шт.

10

L14818

VALVE

- clutch cut-out, parts list figure 252

1шт.

10a

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - straight, order Ref. 13A, Includes: Ref. 11 - 13

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

12

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

13

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

13a

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - straight, if used

2шт.

13b

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

13c

222-2610

SLEEVE

- fitting

1шт.

13d

222-2600

NUT

NUT - fitting

1шт.

14

L55262

TUBE,0.25" OD x 16" L

- clutch cutout valve to cutout cylinder

1шт.

14a

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

FITTING ASSEMBLY - straight, order Ref.17A, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

16

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

17

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

17a

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - straight, if used, Includes: Ref. 17B - 17D

1шт.

17b

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

17c

222-2610

SLEEVE

- straight fitting

1шт.

17d

222-2600

NUT

NUT - fitting

1шт.

18

L55059

LOCK VALVE

VALVE - double check

1шт.

19

221-1133

PIPE,Nipple, 1/4" NPT x 1 3/8"

NIPPLE - 1/4" NPT x 1-3/8", early production

1шт.

20

L12627

CYLINDER

- clutch cutout

1шт.

L12627 clutch cutout cylinder - Make sure that the L31030 adapter plug is in place in the control valve prior to installing the new clutch cutout cylinder. Quite often this plug freezes to cylinder and comes out along with it when removing old cylinder. If this happens it will appear that new cylinder has wrong size thread to fit into the transmission control valve.

1шт.

Also if new cylinder will not fit into L72956 bracket, you may have to slot the hole in the bracket to accomodate the mounting shaft of the cylinder.

1шт.

21

L54140

NUT

- lock, cutout cylinder mounting

1шт.

22

L54114

TUBE - cylinder to manual cutout valve 0.25" OD x 38" L

2шт.

23

221-1849

PLUG

- 1/8" NPT, hex. socket head

1шт.

24

L12630

LOCK VALVE

VALVE - clutch cutout, manual, parts list figure 254

1шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head, #10 x 1/2"

2шт.

L55059

LOCK VALVE

VALUE - double check, Includes: Ref. 27 - 33

1шт.

27

L35711

BODY

- valve

1шт.

28

L31497

GUIDE

- shuttle

1шт.

29

L31498

ROD

SHUTTLE - check

1шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

L33702

COVER

CAP - valve

1шт.

33

L31499

O-RING,1" ID x 40546" OD x 3"

- cap to body

1шт.

34

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

36

L55881

BRACKET - mounting, clutch cutout cylinder, before tractor serial number 9118513

1шт.

37

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Before tractor S/N 9118513 Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

38

92-5

LOCK WASHER,5/16"

before tractor serial number 9118513 5/16"

1шт.

39

L70250

DISC

- clutch cutout, before tractor serial number 9118513

1шт.

40

L48104

SPRING

- return, clutch cutout, before tractor serial number 9118513

2шт.

L73098

KIT

- clutch cutout repair, Includes: Ref. 41 - 47, tractor serial number 9118513 and after

1шт.

41

L72956

BRACKET

- clutch cutout cylinder mounting, tractor serial number 9118513 and after

1шт.

L72956 bracket - If new clutch cutout

1шт.

Cylinder will not fit into this bracket, you may have to slot the hole in the bracket to accomodate the mounting shaft of the cylinder.

1шт.

42

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2", tractor serial number 9118513 and after

1шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", tractor serial number 9118513 and after

1шт.

44

L72882

SPRING

- return, clutch cutout, tractor serial number 9118513 and after

1шт.

45

L72895

LEVER

- clutch cutout, tractor serial number 9118513 and after

1шт.

46

L72896

SPACER

- clutch cutout lever, tractor serial number 9118513 and after

1шт.

47

A26381

WASHER

- flat, special, tractor serial number 9118513 and after

1шт.
