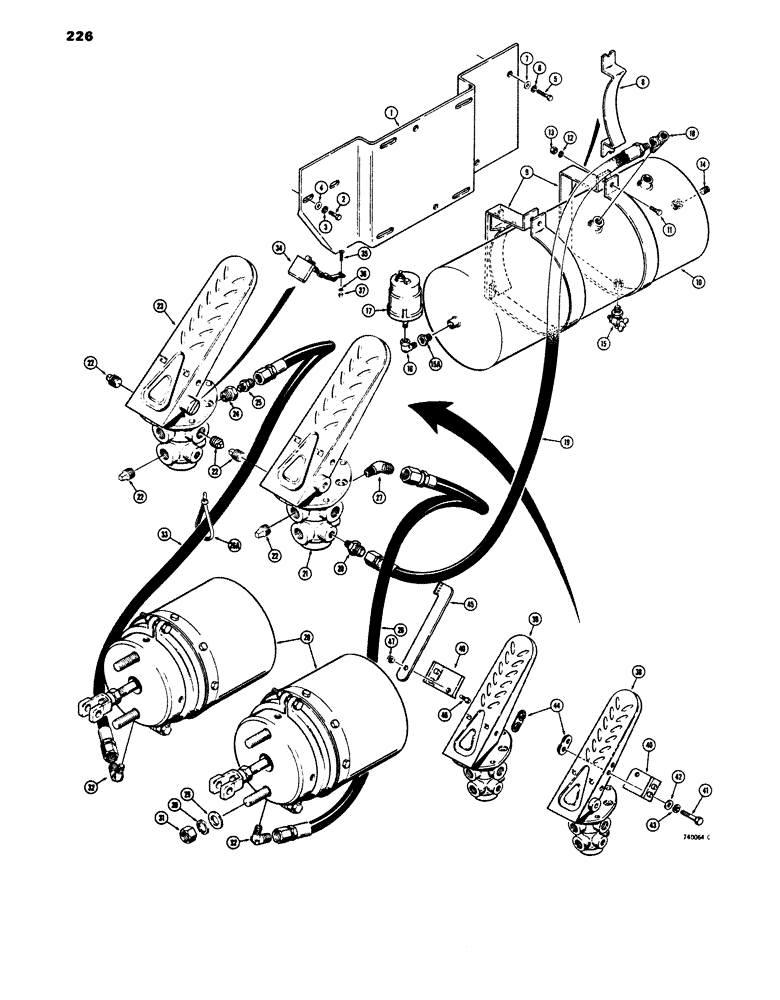

Запчасти Case 680E (226) - BRAKE SYSTEM, RESERVOIR TO BRAKE TREADLES AND BRAKE CHAMBER (33) - BRAKES & CONTROLS

1

L70056

BRACKET

PLATE - reservoir mounting

1шт.

2

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

HHCS - 5/16" - 18 NC x 3/4", grade 8

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

5

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

HHCS - 3/8" x 16 NC x 7/8", grade 8

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

8

L57146

BRACKET

- reservoir mounting

2шт.

9

L57979

STRAP

- reservoir mounting

2шт.

10

L57152

RESERVOIR ASSY.

RESERVOIR - air

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

221-1662

PLUG

- hex. head, 1/4" NPT

1шт.

15

217-109

COCK

VALVE - drain

1шт.

15a

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITING - adapter, 1/4" to 1/8" NPT

1шт.

16

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 deg., street, 1/8" NPT

1шт.

17

L57176

SENDER UNIT

SENDING UNIT - air pressure

1шт.

18

221-1691

TEE,Street, 1/4" NPT

FITTING - street, tee, 1/4" NPT

1шт.

19

L57163

HOSE ASSY.

HOSE - reservoir to treadle, 50" (1270 mm) long

1шт.

20

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 3/8" tube to 1/4" NPT

1шт.

21

L53601

VALVE

TREADLE - R.H., brake valve, figure 250, early production

1шт.

22

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

5шт.

23

L53600

TREADLE - L.H., brake valve, figure 250, early production

1шт.

24

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - adapter, 1/2" NPR to 1/4" NPT

1шт.

25

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - adapter, 3/8" tube to 1/4" NPT

1шт.

26

L53613

HOSE

- treadle to R.H. brake chamber, 41" (1041 mm) long, Serial Range: -9124666

1шт.

26

L53612

HOSE

- treadle to R.H. brake chamber, 35" (889 mm) long, Start Serial: 9124666

1шт.

26a

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, hoses, if used

2шт.

27

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

FITTING - adapter, 45 deg., 1/2" NPT to 9/16" JIC

1шт.

28

REF

INSTRUCTION

CHAMBER ASSEMBLY - brake, see figure 256 and 258

2шт.

29

95-10

WASHER,5/8"

- flat, 5/8"

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

4шт.

32

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 deg., 1/4" NPT to 9/16" JIC

2шт.

33

L53612

HOSE

- L.H. brake chamber to treadle, 35" (889 mm) long

1шт.

34

L53599

PIN - brake lock, used with L53600 and L53601 treadles

1шт.

35

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- machine, #8 x 1/2", zinc plated, if used

1шт.

36

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , If used #8

1шт.

37

129-16

NUT,#8-32

If used #8-32

1шт.

38

REF

INSTRUCTION

TREADLE - R.H. brake valve, parts list see figure 250, late production

1шт.

39

REF

INSTRUCTION

TREADLE - L.H. brake valve, parts list see figure 250, late production

1шт.

40

L71273

BRACKET

- locking bar

2шт.

41

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

42

95-4

WASHER,1/4"

- flat, , if used 1/4"

4шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

4шт.

44

129-724

NUT

- weld, if used

2шт.

45

L71180

BAR

- locking, if used

1шт.

46

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

47

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., self lock, 5/16" - 18 NC, if used

1шт.
