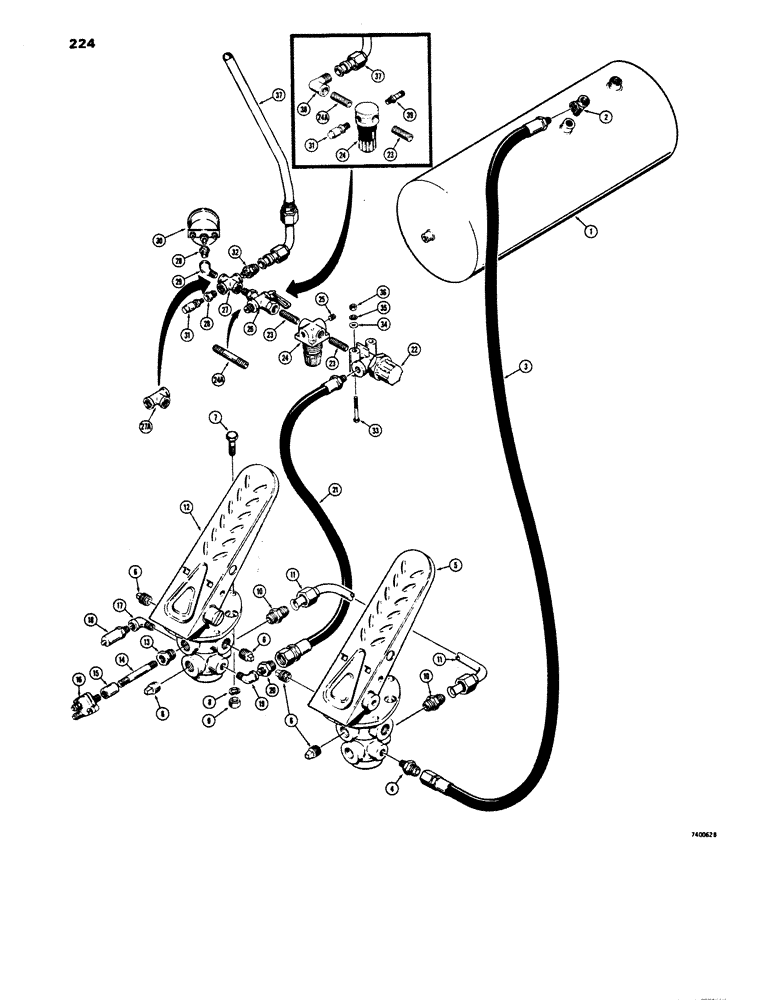

Запчасти Case 680E (224) - BRAKE SYSTEM, RESERVOIR TO PROTECTION VALVES AND TREADLES (33) - BRAKES & CONTROLS

1

L57152

RESERVOIR ASSY.

RESERVOIR - air tank

1шт.

2

221-1691

TEE,Street, 1/4" NPT

FITTING - tee, 1/4" NPT

1шт.

3

L57163

HOSE ASSY.

HOSE - reservoir, 50" (1270 mm) long

1шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - adapter, 3/8" tube to 1/4" NPT

1шт.

5

REF

INSTRUCTION

TREADLE - R.H. valve, parts list figure 250

1шт.

6

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" NPT, square head

5шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

8

92-5

LOCK WASHER,5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

6шт.

10

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - 1/2" NPT x 9/16" JIC

2шт.

11

L57157

TUBE,0.375" OD x 2.75, 5" L

- brake valve connecting

1шт.

12

REF

INSTRUCTION

TREADLE - L.H. valve, parts list figure 250

1шт.

13

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - 1/2" NPT x 1/4" NPT

1шт.

14

221-1139

NIPPLE, LUBE

NIPPLE - 1/4" NPT x 3"

1шт.

15

221-1327

X

FITTING - 1/4" NPT

1шт.

16

L47989

SWITCH

- stop light

1шт.

17

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

18

L48992

VALVE,1/4"

- safety

1шт.

19

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

20

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 3/8" tube to 1/4" NPT

1шт.

21

L57160

HOSE ASSY.

HOSE - L.H. treadle, 21" (533 mm) long

1шт.

22

L13530

VALVE

- pressure protection, figure 254

1шт.

23

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1", if used

1шт.

24

L72409

LOCK VALVE

VALVE - pressure reduction, if used

1шт.

24a

221-1138

PIPE,Nipple, 1/4" NPT x 2 1/2"

NIPPLE - 1/4" NPT x 2-1/2", if used

1шт.

25

221-1849

PLUG

- hex. socket head, 1/8" NPT, if used

1шт.

26

L53739

VALVE

- air, shut-off, if used

1шт.

27

221-1502

CROSS

FITTING - 4-way, 1/4" NPT, if used

1шт.

27a

221-1422

TEE,Pipe, 1/4" NPT

FITTING - tee, 1/4" NPT, if used

1шт.

28

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - adapter, 1/4" NPT to 1/8" NPT

2шт.

29

221-1402

ELBOW

FITTING - street, 45 deg., 1/4" NPT

1шт.

30

L13271

ELECTRICAL GAUGE

GAUGE pressure, hydraulic tank, if used

1шт.

31

D38663

VENT

VALVE - relief, pressure

1шт.

32

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 3/8" tube to 1/4" NPT

1шт.

33

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

34

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-104

NUT,1/4"-20, G5

2шт.

37

L58388

TUBE,0.375" OD x 16.4, 2.7" L

ASSEMBLY - air vent

1шт.

38

221-1375

ELBOW

FITTING - 90 deg., 1/4" NPT, if used

1шт.

39

L51311

LOCK VALVE

VALVE - tank, if used

1шт.
