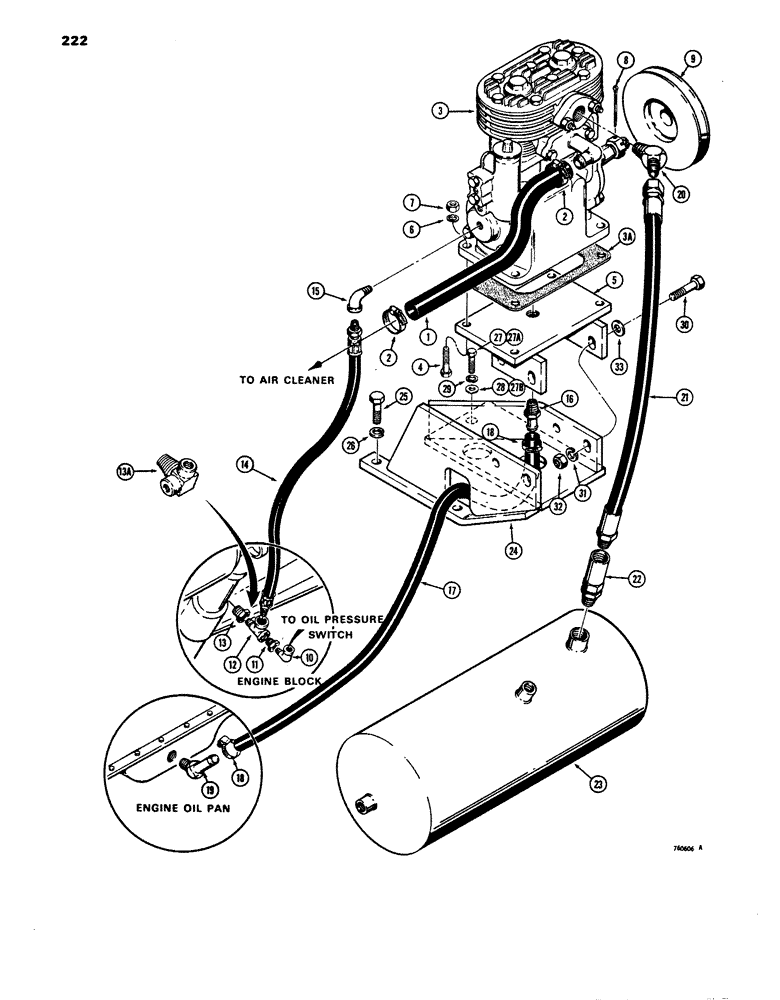

Запчасти Case 680E (222) - BRAKE SYSTEM, AIR COMPRESSOR AND RESERVOIR, TRACTOR SN. (33) - BRAKES & CONTROLS

1

L74393

HOSE,0.75" ID x 15.00", SAE 20R1

Intake, Air Cleaner to Compressor 0.75" ID x 15.00", SAE 20R1

1шт.

2

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

3

L73296

COMPRESSOR

- air, figure figures 242 to 246, Includes: Ref. 3A

1шт.

3a

L32918

GASKET

- mounting

1шт.

4

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

5

L79224

TOP

BRACKET - compressor mounting, upper

1шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

4шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

L73154

PULLEY

- compressor

1шт.

10

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 deg., street 1/8" NPT

1шт.

11

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - adapter, 1/4" x 1/8" NPT

1шт.

12

221-691

TEE

FITTING - tee, 1/4" NPT

1шт.

13

221-53

BUSHING

FITTING - adapter, 3/8" x 1/4" NPT

1шт.

13a

L74391

FITTING

- special, will replace Refs. 10-13, if used

1шт.

14

L74391

FITTING

HOSE - lubrication, 28" (711 mm) long

1шт.

15

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 deg., street, 1/4" NPT

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem 1/2" Hose X 3/8" NPTF Beaded

1шт.

17

L57344

HOSE ASSY.

HOSE - compressor oil return, 34" (864 mm) long

1шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

19

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

- 45 deg., 1/2" NPT x 1/2" tube

1шт.

20

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

FITTING - 45 deg.

1шт.

21

L73294

HOSE ASSY.

HOSE - compressor, 15-1/2" (394 mm) long

1шт.

22

L12586

VALVE

- check

1шт.

23

L57152

RESERVOIR ASSY.

TANK - reservoir, air

1шт.

24

L79225

BRACKET

- air compressor mounting, lower

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

27a

26-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

HHCS - 7/16" - 14 NC x 1-1/4", grade 8

1шт.

27b

L79092

WASHER

- special

1шт.

28

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

29

92-7

LOCK WASHER,7/16"

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

33

95-8

WASHER,1/2"

flat 1/2"

4шт.
