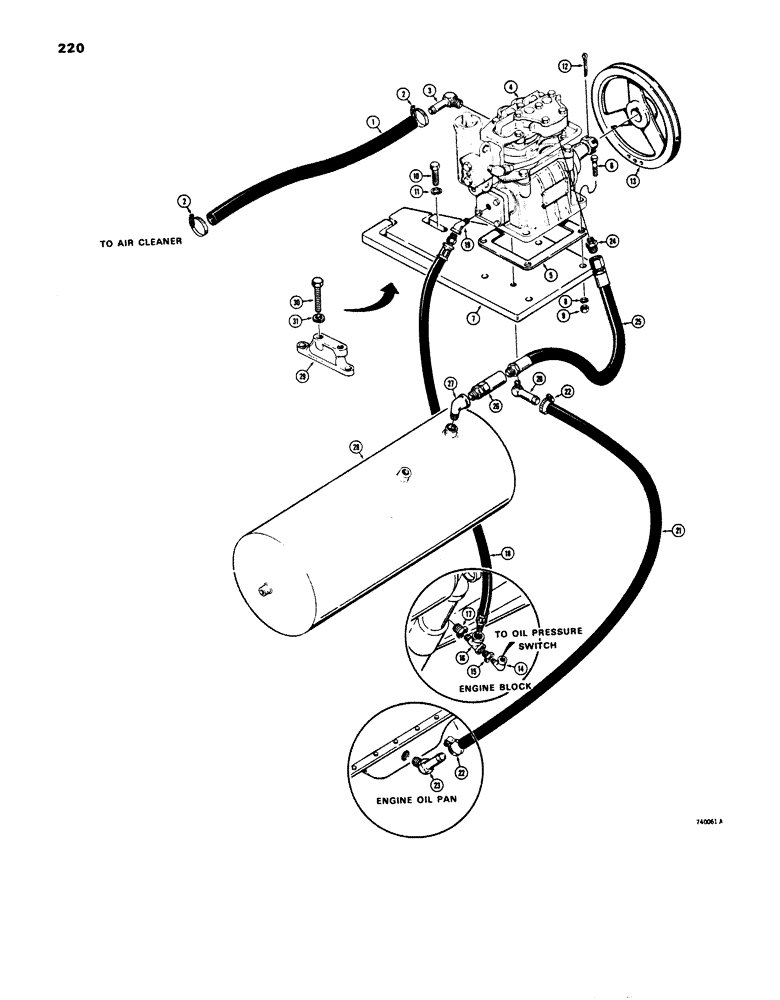

Запчасти Case 680E (220) - BRAKE SYSTEM, AIR COMPRESOR AND RESERVOIR, BEFORE TRACTOR SN (33) - BRAKES & CONTROLS

1

L71196

HOSE - intake, 14-1/2" (368.3 mm) long x 1/2" (13 mm) I.D.

1шт.

2

214-153

CLAMP - hose

2шт.

3

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM - hose, 90 deg., at compressor

1шт.

4

REF

INSTRUCTION

COMPRESSOR - air, see pages 239 and 241

1шт.

5

L10354

GASKET

- air, Serial Range: compressor-bracket

1шт.

6

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8"

4шт.

7

L57721

HOSE ASSY.

BRACKET - compressor mounting

1шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

10

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

HHCS - 7/16" - 14 NC x 1-1/2", grade 8

3шт.

11

R24323

WASHER

- hardened, 7/16"

3шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

13

L51052

PULLEY

- compressor

1шт.

14

221-402

ELBOW,45 Degree, 1/4"-27, NPT

FITTING - 45 degree, street, 1/4" NPT

1шт.

15

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - adapter, 1/4" x 1/8" NPT

1шт.

16

221-691

TEE

FITTING - tee, 1/4" NPT

1шт.

17

221-53

BUSHING

FITTING - adapter, 3/8" x 1/4" NPT

1шт.

18

L57976

HOSE ASSY.

HOSE - lubrication, compressor, 28" (711 mm) long

1шт.

19

221-1401

ELBOW,45º, 1/8"-27, NPT

FITTING - 45 DEGREE, STREET, 1/8" NPT

1шт.

20

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

FITTING - 90 degree, stem, 3/8" NPT x 1/2" tube

1шт.

21

L57344

HOSE ASSY.

HOSE - oil return, 34" (864 mm) long x 5/8" (15.9 mm) I.D.

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

23

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

- 45 degree, stem, 1/2" NPT x 1/2" tube

1шт.

24

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

ADAPTOR - 3/4" JIC x 3/8" NPT

1шт.

25

L57158

HOSE ASSY.

HOSE - compressor, 15-1/2" (394 mm) long

1шт.

26

L12586

VALVE

- check

1шт.

27

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

FITTING - 90 degree, street, 1/2" NPT

1шт.

28

L57152

RESERVOIR ASSY.

TANK - reservoir, air

1шт.

29

A61155

BRACKET

- compressor mounting

1шт.

30

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.
