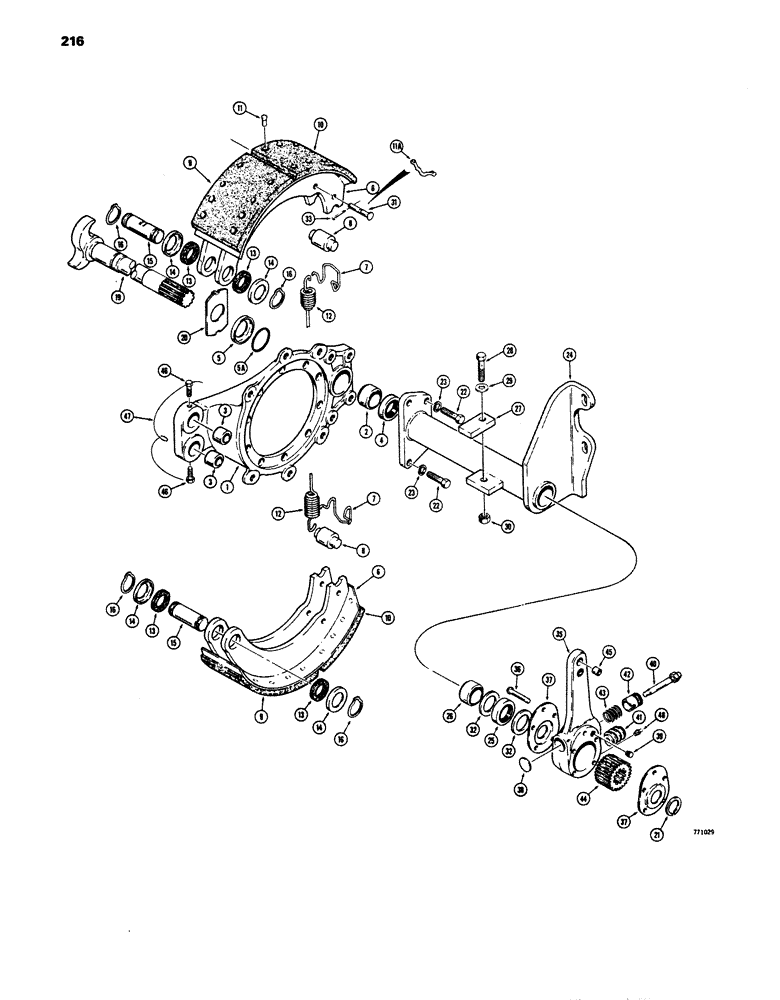

Запчасти Case 680E (216) - L76807 AND L100707 REAR AXLE, REAR BRAKES AND ADJUSTERS (27) - REAR AXLE SYSTEM

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P2/17.44-1, Includes: Ref. 1 - 34

1шт.

L78317

AXLE ASSEMBLY - complete, rear, PRS-204-P3/17.44-1, Includes: Ref. 1 - 34

1шт.

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44-1, Includes: Ref. 1 - 34

1шт.

L77117

SPIDER ASSEMBLY - brake mounting, Includes: Ref. 1 - 5A

2шт.

1

NSS

NOT SOLD SEPARAT

SPIDER - brake

1шт.

2

L35560

BUSHING

- cam

1шт.

3

D77629

BUSHING

- brake pin

2шт.

4

D71280

SEAL ASSY.

SEAL - oil

1шт.

5

D77627

RETAINER

- O-ring

1шт.

5a

D77626

O-RING

- shaft seal

1шт.

L35563

SHOE (ASSY)

SHOE AND LINING ASSEMBLY - brake, Includes: Ref. 6 - 11A

4шт.

6

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

7

L35589

RETAINER

- roller

1шт.

8

L35590

ROLLER

- shoe

1шт.

9

NSS

NOT SOLD SEPARAT

LINING - shoe, anchor end

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - shoe, cam end

1шт.

11

L35591

RIVET

- brake lining

16шт.

11a

L35588

AXLE PIN

PIN - anchor, alternate to Ref. 31, if used

1шт.

12

D73640

VALVE SPRING

SPRING - return, brake shoe

4шт.

13

L35566

FELT

- anchor pin

8шт.

14

L35567

CAP

RETANER - felt

8шт.

15

D77625

AXLE PIN

PIN - anchor, brake shoe

4шт.

16

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

18

L35961

SHAFT

CAM AND SHAFT - L.H. brake adjustment, not shown

1шт.

19

L35962

SHAFT

CAM AND SHAFT - R.H. brake adjustment

1шт.

20

L35706

WASHER

- flat, cam head

2шт.

21

R13338

SNAP RING,#150, Ext

RING - lock, cam groove

2шт.

22

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

L35958

BRACKET ASSEMBLY - mounting, L.H. brake chamber, not shown, Includes: Ref. 24 - 26

1шт.

NLS

NO LONGER SERVICED

ASSEMBLY - mounting, R.H. brake chamber, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - mounting, brake chamber, R.H. or L.H.

1шт.

25

D71280

SEAL ASSY.

SEAL - oil

1шт.

26

L35560

BUSHING

- cam and shaft

1шт.

27

L35577

PLATE ASSY.

LUG - mounting, chamber bracket, welded to axle housing

2шт.

28

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

HHCS - 9/16" - 12 NC x 1-3/4", grade 8

2шт.

29

L35578

WASHER

- special

2шт.

30

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC

2шт.

31

L35705

AXLE PIN

PIN - anchor, alternate to Ref. 11A, if used

4шт.

32

L35573

WASHER

- flat

4шт.

33

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , If used 3/32" x 1"

4шт.

34

S89827

GASKET

- bracket, not shown

2шт.

D66415

BRAKE LINE

KIT - brake lining and rivets, for two wheels

1шт.

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P2/17.44-1, Includes: Ref. 35 - 45

1шт.

L78317

AXLE ASSEMBLY - complete, rear, PRS-204-P3/17.44-1, Includes: Ref. 35 - 45

1шт.

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44-1, Includes: Ref. 35 - 45

1шт.

L35572

ADJUSTER

- slack, brake shoe

2шт.

L35572 adjuster - Only the zerk and bushing

1шт.

May be serviced on the welded version.

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - adjuster

1шт.

36

L35598

RIVET

- adjuster body

10шт.

37

L35600

COVER ASSY

COVER - adjuster gear

2шт.

38

41-10

PLUG

- welch, body

1шт.

39

L35597

AXLE PIN

PIN - lock

1шт.

40

L35594

SHAFT

- drive, worm gear

1шт.

41

L35595

GEAR WHEEL

GEAR - drive, worm

1шт.

45

L35593

LOCK ASSY

LOCK - worm, gear shaft

1шт.

43

L35592

VALVE SPRING

SPRING - lock, worm

1шт.

44

L35601

GEAR WHEEL

GEAR - worm, splined, driven

1шт.

45

L35602

BUSHING

- adjuster body

2шт.

46

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

SCREW - lock, anchor pin

4шт.

47

391-751

ELECTRICAL WIRE

WIRE - lock, anchor pin lock screw

2шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.
