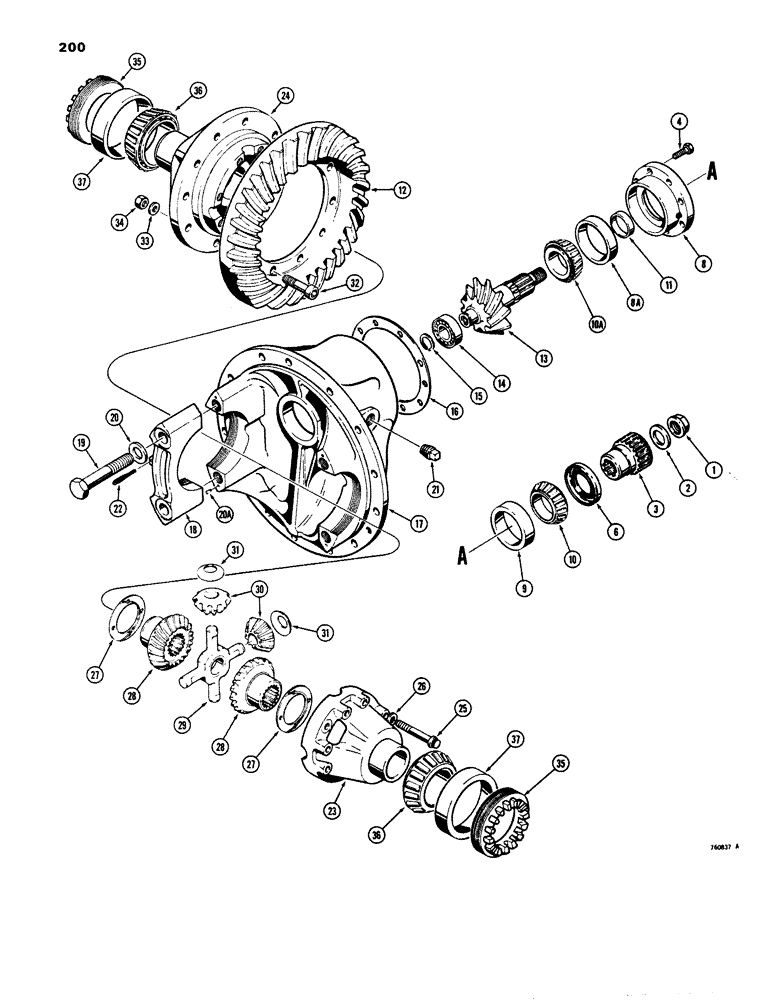

Запчасти Case 680E (200) - L73817 AND L100707 REAR AXLE, DIFFERENTIAL, FIND ROCKWELL (27) - REAR AXLE SYSTEM

L78317

AXLE ASSEMBLY - complete, rear, PRS-204-P3/17.44-1, Includes: Ref. 1 - 37

1шт.

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44-1, Includes: Ref. 1 - 37

1шт.

D78347

CARRIER

DIFFERENTIAL ASSEMBLY - L78317 axle, Includes: Ref. 1 - 11

1шт.

D83067

DIFFERENTIAL

ASSEMBLY - L100707 axle, Includes: Ref. 1 - 11

1шт.

1

L35091

NUT

NUT - hex, slotted, sleeve to pinion shaft

1шт.

Part of P/N A18200 Gear Kit

1шт.

2

A13124

WASHER

- sleeve retaining

1шт.

3

L35585

SLEEVE

- splined

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

6

D73689

OIL SEAL

oil, pinion shaft, 2.125" I.D.

1шт.

D73688

BEARING, ROLLER, CYL

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

8a

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - bearing, tapered roller type, inner

1шт.

9

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type, outer

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type, outer

1шт.

10a

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, tapered roller type, inner

1шт.

11

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74358

SHIM,.154" Thk

- bearing (3.911 mm) .154" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74364

TUBE SPACER

SPACER - bearing, .170" (4.318 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74365

SPACER

- bearing, .176" (4.470 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74366

SPACER

- bearing, .182" (4.622 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, order A18200 kit

1шт.

Part of P/N A18200 Gear Kit

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

Early units used rivets to attach to differential assy., service with bolts, washers, nuts, Ref. 32, 33, 34, or customer may put in new rivets, not offered thru SPS

1шт.

Part of P/N A18200 Gear Kit

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

Part of P/N A18200 Gear Kit

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING inner, drive pinion, L78317 axle, order D82783

1шт.

14

D82783

ROLLER BEARING

BEARING - inner, drive pinion, L100707 axle

1шт.

15

A18199

SNAP RING,#106, Ext

RING snap, , bearing #106, Ext

1шт.

Part of P/N A18200 Gear Kit

1шт.

16

L36104

SHIM

- bearing cage, .003" (0.076 mm) thick

1шт.

16

L36105

SHIM

- bearing cage, .005" (0.127 mm) thick

1шт.

16

L36106

DISC

SHIM - bearing cage, .010" (0.254 mm) thick

1шт.

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - axle, complete (continued), Includes: Ref. 17 - 37

1шт.

D73630

SUPPORT

CARRIER AND CAP ASSEMBLY - differential

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

19

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

HHCS - 5/8" - 11 NC x 3-1/4", grade 8

4шт.

20

L30737

WASHER

- special

4шт.

20a

A15443

DOWEL

- cap

4шт.

21

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, fill

1шт.

22

A18196

HARDWARE

PIN - look, cotter

22шт.

D66306

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential

1шт.

D66305

CASE

ASSEMBLY - differential

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

25

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- special

8шт.

26

D47366

WASHER

- special hardened

8шт.

27

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

28

D66304

GEAR

- differential, side

2шт.

29

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

30

A18175

PINION

GEAR - differential, pinion

4шт.

31

A18176

DISC

WASHER - thrust

4шт.

32

L35919

BOLT

- special, ring, Serial Range: gear-differential

12шт.

Part of P/N A18200 Gear Kit

1шт.

33

D47366

WASHER

- special

12шт.

Part of P/N A18200 Gear Kit

1шт.

34

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self lock

12шт.

Part of P/N A18200 Gear Kit

1шт.

35

A18194

RING

- bearing adjusting

2шт.

36

A18173

ROLLER BEARING

CONE - bearing, differential

2шт.

37

L35931

BEARING CUP

CUP - bearing, differential

2шт.

A18200

GEAR

KIT - gear, Includes: Refs. 1, 12, 13, 15, 33, 34 and 35

1шт.
