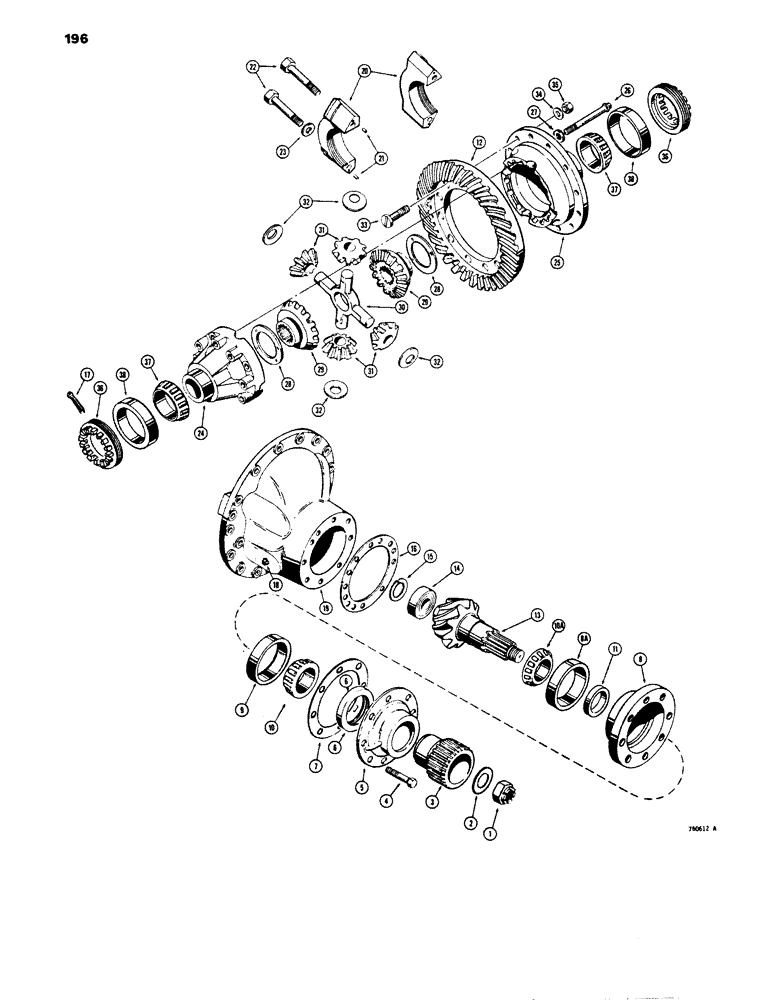

Запчасти Case 680E (196) - L74029 AND L76807 REAR AXLE, DIFFERENTIAL, FIND ROCKWELL NO. ON AXLE, - THEN USE CORRECT PARTS LIST (27) - REAR AXLE SYSTEM

L74029

AXLE ASSEMBLY - complete, rear, PR65-Px-13/17.44-1, Includes: Ref. 1 - 23

1шт.

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P2/17.44-1, Includes: Ref. 1 - 23

1шт.

D73639

CARRIER

DIFFERENTIAL ASSEMBLY - axle

1шт.

1

L35091

NUT

NUT - slotted, special, Serial Range: sleeve-shaft

1шт.

Part of P/N A18200 Gear Kit

1шт.

2

A13124

WASHER

- sleeve retaining

1шт.

3

L35585

SLEEVE

- splined

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

L35927

COVER

ASSEMBLY - includes seal

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

6

L35584

OIL SEAL

- oil, pinion shaft

1шт.

7

L33674

GASKET

- pinion, Serial Range: cover-cage

1шт.

D73641

CUP ASSY.

CAGE ASSEMBLY - pinion shaft bearing

1шт.

8

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

8a

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP- bearing, tapered roller type, inner

1шт.

9

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type, outer

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type, inner

1шт.

10a

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, tapered roller type, outer

1шт.

11

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74358

SHIM,.154" Thk

- bearing (3.911 mm) .154" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74364

TUBE SPACER

SPACER - bearing, .170" (4.318 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74365

SPACER

- bearing, .176" (4.470 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74366

SPACER

- bearing, .182" (4.622 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, order A18200 kit

1шт.

Part of P/N A18200 Gear Kit

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

Part of P/N A18200 Gear Kit

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

Part of P/N A18200 Gear Kit

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion

1шт.

15

A18199

SNAP RING,#106, Ext

RING snap, , bearing #106, Ext

1шт.

Part of P/N A18200 Gear Kit

1шт.

16

L36104

SHIM

- bearing cage, .003" (0.076 mm) thick

1шт.

16

L36105

SHIM

- bearing cage, .005" (0.127 mm) thick

1шт.

16

L36106

DISC

SHIM - bearing cage, .010" (0.254 mm) thick

1шт.

17

A18196

HARDWARE

PIN - lock, cotter

2шт.

L35924

CARRIER

AND CAP ASSEMBLY - differential

1шт.

18

221-835

PLUG

- square head, 3/4" NPT

1шт.

L35925

CARRIER

AND CAP ASSEMBLY - differential

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

21

A15443

DOWEL

- cap

4шт.

22

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

HHCS - 5/8" - 1 NC x 3-1/4", grade 8

4шт.

23

L30737

WASHER

- special

4шт.

L74029

AXLE ASSEMBLY - complete, rear, PR65-PX-13/17.44-1, Includes: Ref. 24 - 38

1шт.

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P2/17.44-1, Includes: Ref. 24 - 38

1шт.

D73639

CARRIER

DIFFERENTIAL ASSEMBLY - differential, Includes: Ref. 24 - 38

1шт.

D66306

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential

1шт.

D66305

CASE

ASSEMBLY - differential, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

26

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- special

8шт.

27

D47366

WASHER

- special hardened

8шт.

28

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

29

D47366

WASHER

GEAR - differential, side

2шт.

30

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

31

A18175

PINION

GEAR - differential, pinion

4шт.

32

A18176

DISC

WASHER - thrust

4шт.

33

L35919

BOLT

- special, ring, Serial Range: gear-differential

12шт.

Part of P/N A18200 Gear Kit

1шт.

34

D47366

WASHER

- special

12шт.

Part of P/N A18200 Gear Kit

1шт.

35

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex. self lock

12шт.

Part of P/N A18200 Gear Kit

1шт.

36

A18194

RING

- bearing adjusting

2шт.

37

A18173

ROLLER BEARING

CONE - bearing, differential

2шт.

38

L35931

BEARING CUP

CUP - bearing, differential

2шт.

A18200

GEAR

KIT - gear, Includes: Refs. 1, 12, 13, 15, 33, 34 and 35

1шт.
