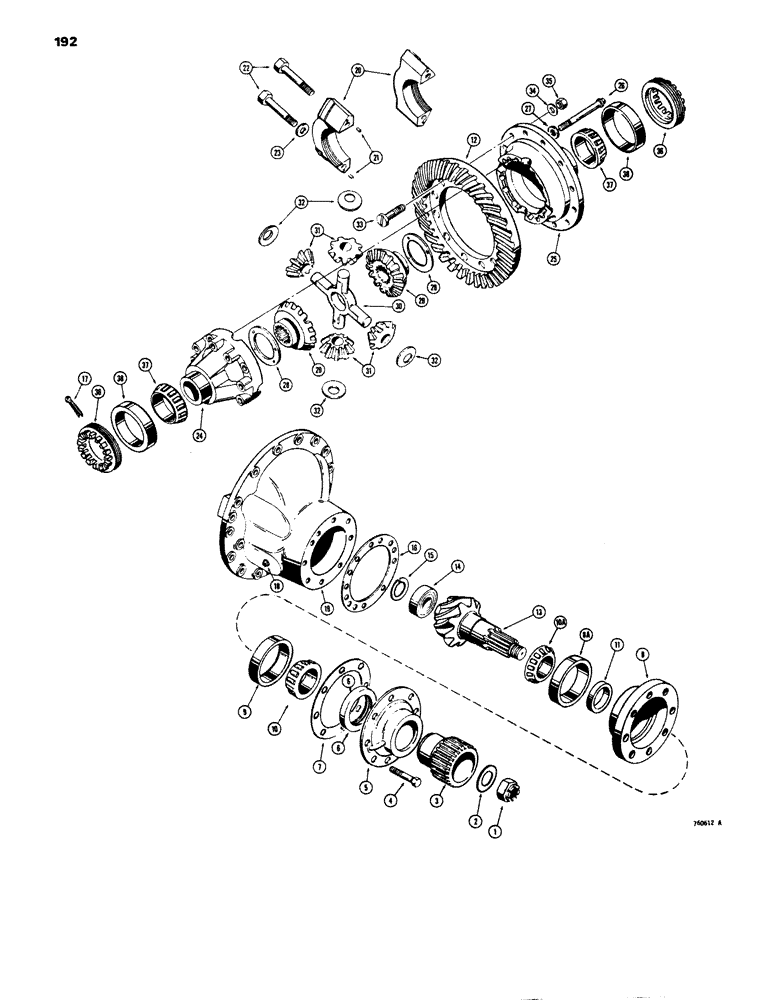

Запчасти Case 680E (192) - L72035 REAR AXLE, DIFFERENTIAL, FIND ROCKWELL NUMBER ON AXLE- THEN USE CORRECT PARTS LIST (27) - REAR AXLE SYSTEM

L72035

AXLE ASSEMBLY - complete, rear, PR65-PX-11/17.44-1, Includes: Ref. 1 - 38

1шт.

D73626

CARRIER

DIFFERENTIAL ASSEMBLY - axle (Replaces L73626), Includes: Ref. 1 - 38

1шт.

1

L35091

NUT

NUT - slotted, special, Serial Range: sleeve-shaft

1шт.

Part of P/N A18200 Gear Kit

1шт.

2

A13124

WASHER

- sleeve retaining

1шт.

3

L35585

SLEEVE

- splined

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

L35927

COVER

ASSEMBLY - includes seal

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

6

L35584

OIL SEAL

- oil, pinion shaft

1шт.

7

L33674

GASKET

- pinion, Serial Range: cover-cage

1шт.

D73692

CUP

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

8a

L33668

BEARING CUP

CUP - bearing, inner, 3-7/8" (98.4 mm) O.D., if used

1шт.

8a

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - bearing, inner, 3-1/2" (88.9 mm) O.D., if used

1шт.

9

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, outer

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, outer

1шт.

10a

L30397

CONE

- bearing, inner, used with L33668 cup only

1шт.

10a

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, inner used with R10277 cup only

1шт.

11

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74358

SHIM,.154" Thk

- bearing (3.911 mm) .154" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74364

TUBE SPACER

SPACER - bearing, .170" (4.318 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18358

SPACER

- bearing, .172" (4.368 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18359

SPACER

- bearing, .173" (4.394 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18360

SPACER

- bearing, .174" (4.419 mm) thick (Replaces A18390)

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18361

SPACER

- bearing, .175" (4.445 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74365

SPACER

- bearing, .176" (4.470 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18363

SPACER

- bearing, .177" (4.495 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

D74366

SPACER

- bearing, .182" (4.662 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18364

SPACER

- bearing, .188" (4.775 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18365

SPACER

- bearing, .189" (4.800 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18366

SPACER

- bearing, .195" (4.953 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

11

A18367

SPACER

- bearing, .201" (5.105 mm) thick

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

A18200

GEAR

KIT - gear, includes Refs. 1, 12, 13, 15, 33, 34 and 35.

1шт.

Use two spacers, Ref. 11, together to replace the single original equipment spacer.

1шт.

REF

INSTRUCTION

GEAR SET ring and pinion, order A18200 kit, Includes: Ref. 12 and 13

1шт.

Part of P/N A18200 Gear Kit

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

Part of P/N A18200 Gear Kit

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

Part of P/N A18200 Gear Kit

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion

1шт.

15

A18199

SNAP RING,#106, Ext

RING snap, , bearing #106, Ext

1шт.

Part of P/N A18200 Gear Kit

1шт.

16

L36104

SHIM

- bearing cage, .003" (0.076 mm) thick

1шт.

16

L36105

SHIM

- bearing cage, .005" (0.127 mm) thick

1шт.

16

L36106

DISC

SHIM - bearing cage, .010" (2.254 mm) thick

1шт.

17

A18196

HARDWARE

PIN - lock, cotter

2шт.

L35924

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 18 - 23

1шт.

18

221-835

PLUG

- square head, 3/4 NPT

1шт.

L35925

CARRIER

AND CAP - differential

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

21

A15443

DOWEL

- cap

4шт.

22

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

HHCS - 5/8" - 11 NC x 3-1/2", grade 8

4шт.

23

L30737

WASHER

- special

4шт.

D66306

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 24 - 27

1шт.

D66305

CASE

ASSEMBLY - differential

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

26

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- special

8шт.

27

D47366

WASHER

- special hardened

8шт.

28

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

29

D66304

GEAR

- differential, side

2шт.

30

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

31

A18175

PINION

GEAR - differential, pinion

4шт.

32

A18176

DISC

WASHER - thrust

4шт.

33

L35919

BOLT

- special, ring, Serial Range: gear-differential

12шт.

Part of P/N A18200 Gear Kit

1шт.

34

D47366

WASHER

- special

12шт.

Part of P/N A18200 Gear Kit

1шт.

35

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., self lock, 1/2" - 13 NC

12шт.

Part of P/N A18200 Gear Kit

1шт.

36

A18194

RING

- bearing adjusting

2шт.

37

A18173

ROLLER BEARING

CONE - bearing

2шт.

38

L35931

BEARING CUP

CUP - bearing

2шт.

A18200

GEAR

KIT - gear, Includes: Refs. 1, 12, 13, 15, 33, 34 and 35.

1шт.
