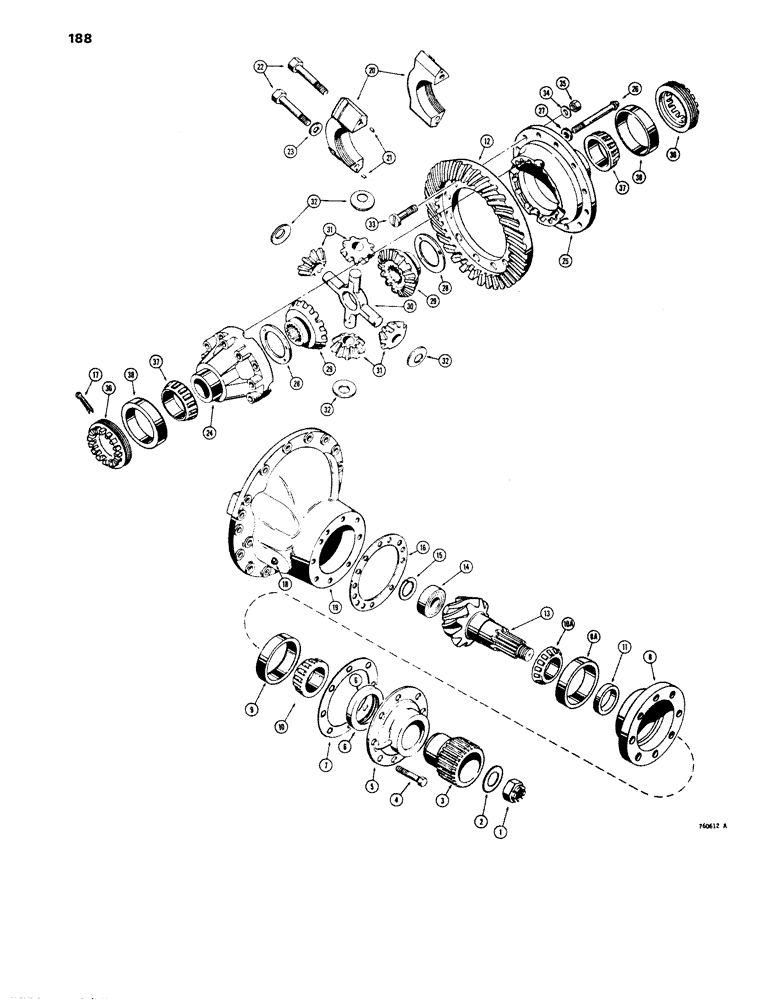

Запчасти Case 680E (188) - L57350 AND L70686 REAR AXLE, DIFFERENTIAL, FIND ROCKWELL NUMBER ON AXLE, THEN USE CORRECT PARTS LIST (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
L57350
SPARE PART ASSY - complete, rear, PR65-PX-6/17.44-1, Incl. Ref. 1 - 38
1шт.
L70686
SPARE PART ASSY - complete, rear, PR65-PX-8/17.44-1, Incl. Ref. 1 - 38
1шт.
D73626
CARRIER
DIFFERENTIAL ASSY - axle, Replaces D66310
1шт.
1
L35091
NUT
Slotted, special, Serial Range: sleeve-shaft
1шт.
Part of P/N A18200 Gear Kit
1шт.
2
A13124
WASHER
Sleeve retaining
1шт.
3
L35585
SLEEVE
Splined
1шт.
4
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
8шт.
L35927
COVER
ASSY - includes seal
1шт.
5
NSS
NOT SOLD SEPARAT
COVER - pinion shaft
1шт.
6
L35584
OIL SEAL
Oil, pinion shaft
1шт.
7
L33674
GASKET
Pinion, Serial Range: cover-cage
1шт.
D73692
CUP
CAGE ASSY - pinion shaft bearing
1шт.
8
NSS
NOT SOLD SEPARAT
CAGE - pinion bearing
1шт.
8a
NSS
NOT SOLD SEPARAT
CUP - bearing, inner, 3-7/8", 98.4 mm, O.D., if used, included with bearing D72766
1шт.
Part of Bearing, P/N D72766
1шт.
8a
R10277
BEARING CUP,3.5" OD x 0.9063"
Bearing, inner, 3-1/3", 88.9 mm, O.D., if used
1шт.
9
A13161
BEARING CUP,88.5mm OD x 17.46mm W
Bearing, outer
1шт.
10
A13160
ROLLER BEARING,1.4375" ID x 0.933"
CONE, outer
1шт.
10a
NSS
NOT SOLD SEPARAT
CONE - bearing, inner used with R10277 cup only, included with bearing D72766
1шт.
Part of Bearing, P/N D72766
1шт.
D72766
BEARING
Includes cup and cone with outer cup diameter of 3- 7/8", 98.4 mm, see Ref. 8A and 10A above, if used
1шт.
11
D74357
SHIM,.153" Thk
Spacer - bearing (3.886 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74358
SHIM,.154" Thk
Spacer - bearing (3.911 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74359
SHIM,.155" Thk
Spacer - bearing (3.937 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74360
SHIM,.156" Thk
Spacer - bearing (3.962 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74361
SHIM,.157" Thk
Spacer - bearing (3.988 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74362
SHIM,.158" Thk
Spacer - bearing (4.013 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74363
SHIM,.164" Thk
Spacer - bearing (4.166 mm)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74364
TUBE SPACER
Bearing, .170" (4.318 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18358
SPACER
Bearing, .172" (4.368 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18359
SPACER
Bearing, .173" (4.394 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18360
SPACER
Bearing, .174" (4.419 mm) thick (Replaces A18390)
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18361
SPACER
Bearing, .175" (4.445 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74365
SPACER
Bearing, .176" (4.470 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18363
SPACER
Bearing, .177" (4.495 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
D74366
SPACER
Bearing, .182" (4.662 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18364
SPACER
Bearing, .188" (4.775 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18365
SPACER
Bearing, .189" (4.800 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18366
SPACER
Bearing, .195" (4.953 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
11
A18367
SPACER
Bearing, .201" (5.105 mm) thick
1шт.
Use two spacers, Ref. 11, together to replace the single original equipment spacer.
1шт.
REF
INSTRUCTION
GEAR SET - ring and pinion, order A18200 kit, see below
1шт.
Part of P/N A18200 Gear Kit
1шт.
12
NSS
NOT SOLD SEPARAT
GEAR - ring
1шт.
Part of P/N A18200 Gear Kit
1шт.
13
NSS
NOT SOLD SEPARAT
GEAR - pinion
1шт.
Part of P/N A18200 Gear Kit
1шт.
14
A18182
BALL BEARING,27.75mm ID x 62mm OD x 18mm W
Inner, drive pinion
1шт.
15
A18199
SNAP RING,#106, Ext
Bearing
1шт.
Part of P/N A18200 Gear Kit
1шт.
16
L36104
SHIM
Bearing cage, .003" (0.076 mm) thick
1шт.
16
L36105
SHIM
Bearing cage, .005" (0.127 mm) thick
1шт.
16
L36106
DISC
SHIM - bearing cage, .010" (2.254 mm) thick
1шт.
17
A18196
HARDWARE
PIN - lock, cotter
2шт.
L35924
CARRIER
AND CAP ASSY - differential
1шт.
18
221-835
PLUG
Square head, 3/4" NPT
1шт.
L35925
CARRIER
AND CAP - differential
1шт.
19
NSS
NOT SOLD SEPARAT
CARRIER - differential
1шт.
20
NSS
NOT SOLD SEPARAT
CAP - differential bearing
2шт.
21
A15443
DOWEL
Cap
4шт.
22
26-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8
4шт.
23
L30737
WASHER
Special
4шт.
D66306
DIFFERENTIAL
CASE AND GEAR ASSY
1шт.
D66305
CASE
ASSY - differential
1шт.
24
NSS
NOT SOLD SEPARAT
CASE - plain half
1шт.
25
NSS
NOT SOLD SEPARAT
CASE - flange half
1шт.
26
26-848
BOLT,Hex, 1/2" - 13 x 3", Gr 8
Special
8шт.
27
D47366
WASHER
Special hardened
8шт.
28
F9740
WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk
Thrust, side gear
2шт.
29
D66304
GEAR
Differential, side
2шт.
30
A18181
U-JOINT SPIDER
Differential
1шт.
31
A18175
PINION
GEAR - differentia
4шт.
32
A18176
DISC
WASHER - thrust
4шт.
33
L35919
BOLT
Special, ring, Serial Range: gear-differential
12шт.
Part of P/N A18200 Gear Kit
1шт.
34
D47366
WASHER
Special
12шт.
Part of P/N A18200 Gear Kit
1шт.
35
131-1138
LOCK NUT,1/2"-13, GC
12шт.
Part of P/N A18200 Gear Kit
1шт.
36
A18194
RING
Bearing adjusting
2шт.
37
A18173
ROLLER BEARING
CONE
2шт.
38
L35931
BEARING CUP
Bearing
2шт.
A18200
GEAR
KIT, Incl. Refs. 1, 12, 13, 15, 33, 34 and 35.
1шт.
