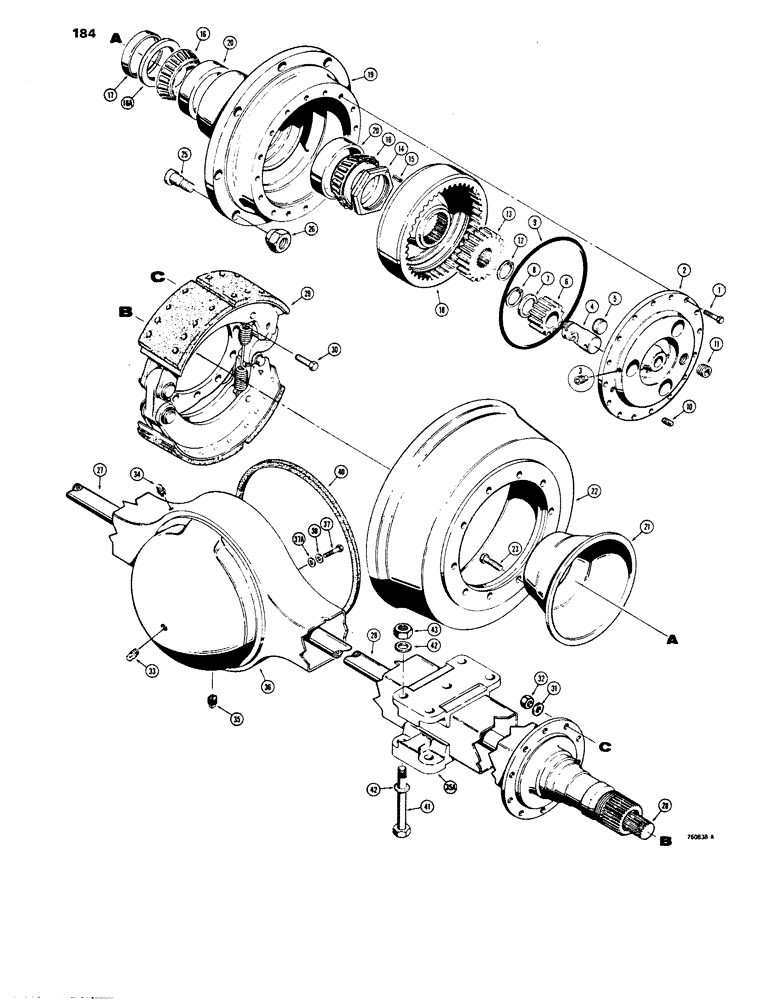

Запчасти Case 680E (184) - L78317 AND L100707 REAR AXLE, AXLE HOUSING AND PLANETARY (27) - REAR AXLE SYSTEM

L78317

AXLE ASSEMBLY - complete, rear, PRS-204-P3/17.44-1, Includes: Ref. 1 - 32

1шт.

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44-1, Includes: Ref. 1 - 32

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

CAPSCREW - special

32шт.

L35235

PINION

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 2 - 8

2шт.

L35236

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, 3/8" x 5/8"

3шт.

4

A18246

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION - gear

3шт.

7

A18236

WASHER

- thrust

3шт.

8

A18242

RING

- snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- planetary cover, if used

2шт.

9

345-84

ADHESIVE

GASKET - form-in-place, if used, not shown

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head, 3/8" NPT

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill, square socket, 3/4" NPT

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

L35232

GEAR

- sun

2шт.

L35228

BEARING LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

138-132 roll pin - Use 138-2018 spiral pin. Refer to CE Service Bulletin 42-81.

1шт.

129-361 hex nut, 1/4" LH thread

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing, roller

4шт.

16a

35226

SEAL - bearing

2шт.

L35226 bearing seal and L35220 seal wear sleeve sub to N7841 seal assy. (now subs to 100173A1). Refer to CE Service Bulletin 29-83.

1шт.

L35220 seal wear sleeve sub to N7841 seal assy. (now subs to 100173A1). Refer to CE Service Bulletin 29-83.

1шт.

17

35220

SLEEVE - oil seal

2шт.

18

L35230

GEAR

- ring, pinion

2шт.

L35223

HUB CAP

HUB AND CUP ASSEMBLY - axle, Includes: Ref. 19 and 20

2шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, roller

2шт.

21

L35224

SLINGER

- oil

2шт.

22

L35580

DRUM HUB

DRUM - brake

2шт.

23

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - 5/8" - 11 NC x 1-1/2", grade 8

20шт.

25

A13112

STUD

STUD - wheel

16шт.

26

A12522

WHEEL NUT

- wheel, not shipped with axle, order separately

16шт.

27

L35231

SHAFT

- axle, L.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

R.H. axle shaft (37.19" long). Illustration shows it as Ref. 28.

1шт.

28

L35234

SHAFT

- axle, R.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

LH axle shaft (39.56" long). Illustration shows it as Ref. 27.

1шт.

29

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see figure 216 and 218 for proper brakes

2шт.

30

28-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

HHCS - 5/8" - 18 NF x 2", grade 8

20шт.

31

L30737

WASHER

- special

20шт.

32

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self lock, 5/8" - 18 NF

20шт.

L78317

AXLE ASSEMBLY - complete, rear, PRS-204-P3/17.44-1, Includes: Ref. 33 - 40

1шт.

D78348

HOUSING ASSEMBLY - service, includes Refs. 33 - 40

1шт.

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44-1, Includes: Ref. 33 - 40

1шт.

33

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill

1шт.

34

A12928

BREATHER

- axle housing

1шт.

35

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, magnetic

1шт.

35a

L76957

PLATE

PAD - axle, lower pads not shipped with axle, order separately

4шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

37

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

37

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

HHCS - 7/16" - 14 NC x 1-3/4", grade 8

2шт.

37

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

HHCS - 7/16" - 14 NC x 2-1/2", grade 8

2шт.

37a

D47366

WASHER

- flat

12шт.

38

D47367

WASHER

- special

4шт.

40

NSS

NOT SOLD SEPARAT

GASKET - differential to housing, order M20704 from-in-place gasket

1шт.

41

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8

8шт.

42

L74506

WASHER

- special, hardened

16шт.

43

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

8шт.

D78348

HOUSING ASSEMBLY - service, includes Refs. 33, 35 and 36

1шт.
