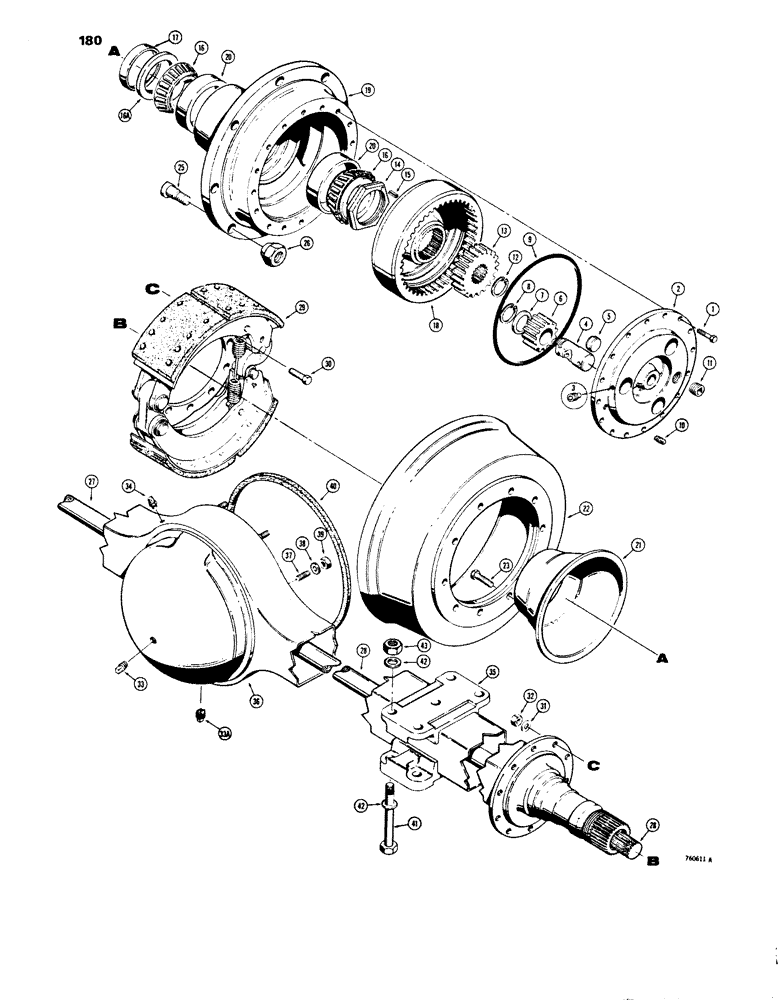

Запчасти Case 680E (180) - L72035, L74029 AND L76807 REAR AXLE, AXLE HOUSING AND PLANETARY (27) - REAR AXLE SYSTEM

L72035

AXLE ASSEMBLY - complete, rear, PR65-PX-11/17.44-1, Includes: Ref. 1 -29

1шт.

L74029

AXLE ASSEMBLY - complete, rear, PR65-PX-13/17.44-1, Includes: Ref. 1 - 29

1шт.

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P-2/17.44-1, Includes: Ref. 1 - 29

1шт.

1

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

CAPSCREW - special

32шт.

L32535

PISTON ASSY.

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 2 - 8

2шт.

L32536

SPRING

SPIDER ASSEMBLY - planetary

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, 3/8" x 5/8"

3шт.

4

A18246

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION - gear

3шт.

7

A18236

WASHER

- thrust

3шт.

8

A18242

RING

- snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - O-ring, planetary cover

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head, 3/8" NPT

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill, square socket, 3/4" NPT

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

L35232

GEAR

- sun

2шт.

L35228

BEARING LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

138-132 roll pin - Use 138-2018 spiral pin. Refer to CE Service Bulletin 42-81.

1шт.

129-361 hex nut, 1/4" LH thread

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing, roller

4шт.

16a

L35226

OIL SEAL

- bearing

2шт.

Bearing seal L35226 and seal wear sleeve L35220 sub to seal assy. N7841 (now subs to 100173A1). Refer to CE Service Bulletin 29-83.

1шт.

17

L35220

SLEEVE

- oil seal

2шт.

18

L35230

GEAR

- ring, pinion

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 19 and 20

2шт.

L35223

HUB CAP

HUB AND CUP ASSEMBLY - axle

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, roller

2шт.

21

L35224

SLINGER

- oil

1шт.

22

L35580

DRUM HUB

DRUM - brake

1шт.

23

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - 5/8" - 11 NC x 1-1/2", grade 8

10шт.

25

A13112

STUD

STUD - wheel

8шт.

26

A12522

WHEEL NUT

-, Serial Range: wheel-hub

16шт.

27

L35231

SHAFT

- axle, L.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

R.H. axle shaft (37.19" long). Illustration shows it as Ref. 28.

1шт.

28

L35234

SHAFT

- axle, R.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

LH axle shaft (39.56" long). Illustration shows it as Ref. 27.

1шт.

29

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see figure 212 and 214 or 216 and 218 for proper brakes

2шт.

L72035

AXLE ASSEMBLY - complete, rear, PR65-PX-11/17.44-1, Includes: Ref. 30 - 40

1шт.

L74029

AXLE ASSEMBLY - complete, rear, PR65-PX-13/17.44-1, Includes: Ref. 30 - 40

1шт.

L76807

AXLE ASSEMBLY - complete, rear, PRS-204-P-2/17.44-1, Includes: Ref. 30 - 40

1шт.

30

28-930

BOLT,Hex, 9/16" - 18 x 1-7/8", Gr 8

HHCS - 9/16" - 18 NF x 1-7/8", grade 8, if used

20шт.

30

28-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

HHCS - 5/8" - 18 NF x 1-7/8", grade 8, if used

20шт.

31

L35233

WASHER

- special, 9/16", if used

20шт.

31

L30737

WASHER

- special, 5/8" - 18 NF, if used

20шт.

32

131-1235

NUT,9/16"-18, GC

NUT - hex., self lock, 9/16", if used

20шт.

32

131-1236

LOCK NUT,5/8"-18, GC

NUT - lock, 5/8" - 18 NF, if used

20шт.

33

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill

1шт.

33a

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, magnetic

1шт.

34

A12928

BREATHER

- axle housing

1шт.

35

L35587

PAD

- axle mounting, L72035 of L74029 axles, lower pads not shipped with axle, order separately

2шт.

35

L76970

PAD

- axle mounting, L76807 axle only, lower pads shipped with axle - order separately

4шт.

L35957

HOUSING

ASSEMBLY - L72035 or L74029 axles, Includes: Ref. 36 and 37

1шт.

D77623

HOUSING ASSEMBLY - L76807 axle only, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

37

L33691

STUD

- carrier mounting, 3" (76.2 mm) long

2шт.

37

L33692

STUD

- carrier housing, 2-1/2" (63.5 mm) long

2шт.

38

D47367

WASHER

- special

10шт.

39

129-530

NUT,7/16"-20, G8

10шт.

40

NSS

NOT SOLD SEPARAT

GASKET - differential housing, order M20704 gasket material

1шт.

41

116-707

BOLT

HHCS - 3/4" - 16 NF x 9", grade 8, if used

8шт.

41

116-701

BOLT

HHCS - 3/4" - 16 NF x 8", grade 8, if used

8шт.

42

L74506

WASHER

- special, hardened

16шт.

43

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., self lock, 3/4" - 16 NF

8шт.
