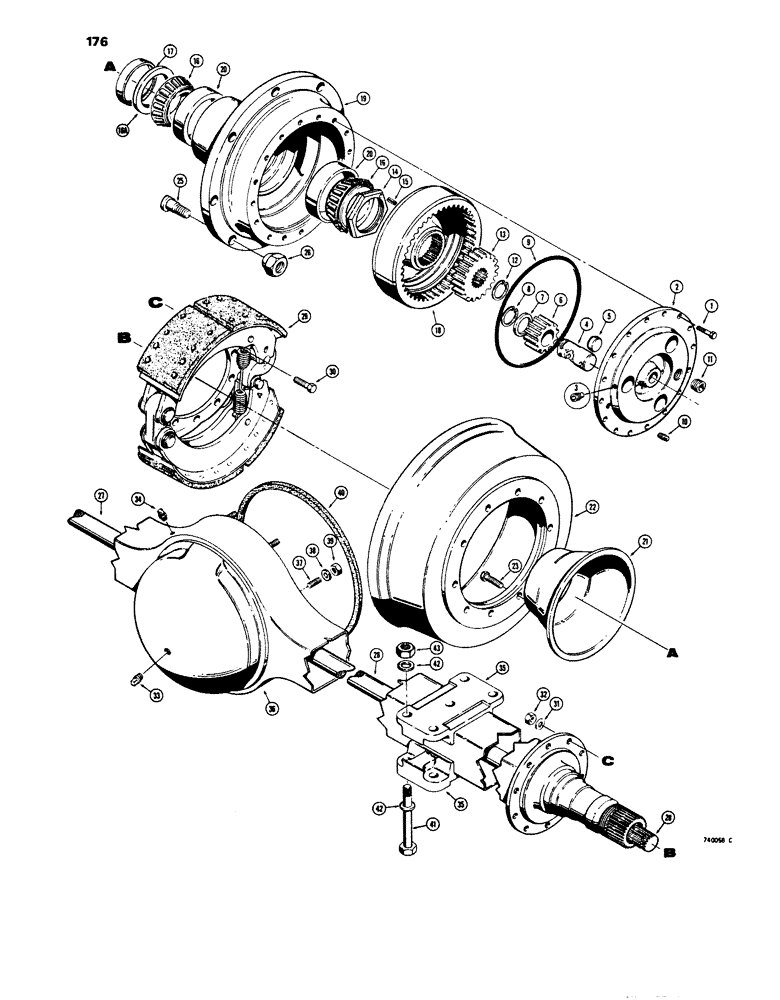

Запчасти Case 680E (176) - L57350 & L70686 REAR AXLE, AXLE HOUSING & PLANETARY (27) - REAR AXLE SYSTEM

L57350

AXLE ASSEMBLY - complete, rear, PR65-PX-6/17.44-1, Includes: Ref. 1 - 35

1шт.

L70686

AXLE ASSEMBLY - complete, rear, PR65-PX-8/17.44-1, Includes: Ref. 1 - 35

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

CAPSCREW - special

32шт.

L32535

PISTON ASSY.

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 2 - 8

2шт.

L35236

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-356

SCREW - set, 3/8" x 5/8"

3шт.

4

A18246

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION - gear

3шт.

7

A18236

WASHER

- thrust

3шт.

8

A18242

RING

- snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- planetary cover

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head, 3/8" NPT

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill, square socket, 3/4" NPT

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

L35232

GEAR

- sun

2шт.

L35228

BEARING LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

138-132 roll pin - Use 138-2018 spiral pin. Refer to CE Service Bulletin 42-81.

1шт.

129-361 hex nut, 1/4" LH thread

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing, roller

4шт.

The L35226 bearing seal and L35220 seal wear sleeve were replaced by seal assy., part nbr N7841 (now subs to 100173A1). Refer to CE Service Bulletin 29-83

1шт.

L35220 seal wear sleeve were replaced by seal assy., part nbr N7841 (now subs to 100173A1). Refer to CE Service Bulletin 29-83

1шт.

16a

L35226

OIL SEAL

- bearing

2шт.

17

L35220

SLEEVE

- oil seal

2шт.

18

L35230

GEAR

- ring, pinion

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 19 and 25

2шт.

L35223

HUB CAP

HUB AND CUP ASSEMBLY - axle

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, roller

2шт.

21

L35224

SLINGER

- oil

1шт.

22

L35580

DRUM HUB

DRUM - brake

1шт.

23

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - 5/8" - 11 NC x 1-1/2", grade 8

10шт.

25

A13112

STUD

STUD - wheel

8шт.

26

A12522

WHEEL NUT

-, Serial Range: wheel-hub

16шт.

27

L35231

SHAFT

- axle, L.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

R.H. axle shaft (37.19" long). Illustration shows it as Ref. 28.

1шт.

28

L35234

SHAFT

- axle, R.H.

1шт.

L35231 axle shaft - This is actually the RH axle shaft (37.19" long). Shows in illustration as Ref. 28.

1шт.

LH axle shaft (39.56" long). Illustration shows it as Ref. 27.

1шт.

29

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see figure 205 and 209 for proper brakes

2шт.

30

28-930

BOLT,Hex, 9/16" - 18 x 1-7/8", Gr 8

HHCS - 9/16" - 18 NF x 1-7/8", grade 8

20шт.

31

L35233

WASHER

- special

20шт.

32

131-1235

NUT,9/16"-18, GC

NUT - lock, 9/16" - 18 NF

20шт.

33

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill and drain

2шт.

34

A12928

BREATHER

- axle housing

1шт.

35

L73207

PLATE ASSY.

PAD - axle mounting, lower pads not shipped with axle, order separately

4шт.

L57350

AXLE ASSEMBLY - complete, rear, PR65-PX-6/17.44-1, Includes: Ref. 36 - 50

1шт.

L70686

AXLE ASSEMBLY - complete, rear, PR65-PX-8/17.44-1, Includes: Ref. 36 - 50

1шт.

L35957

HOUSING

ASSEMBLY - axle, Includes: Ref. 37

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

37

L33691

STUD

- carrier mounting, 3" (76.2 mm) long

2шт.

37

L33692

STUD

- carrier housing, 2-1/2" (63.5 MM) long

2шт.

37

L33693

STUD

- carrier housing, 1-7/8" (47.6 mm) long

6шт.

38

D47367

WASHER

- special

10шт.

39

129-530

NUT,7/16"-20, G8

10шт.

40

L35977

GASKET

-, Serial Range: differential-housing

1шт.

41

116-707

BOLT

HHCS - 3/4" - 16 NF x 9", grade 8

8шт.

42

L74506

WASHER

- special, hardened

16шт.

43

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., self lock, 3/4" - 16 NF

8шт.
