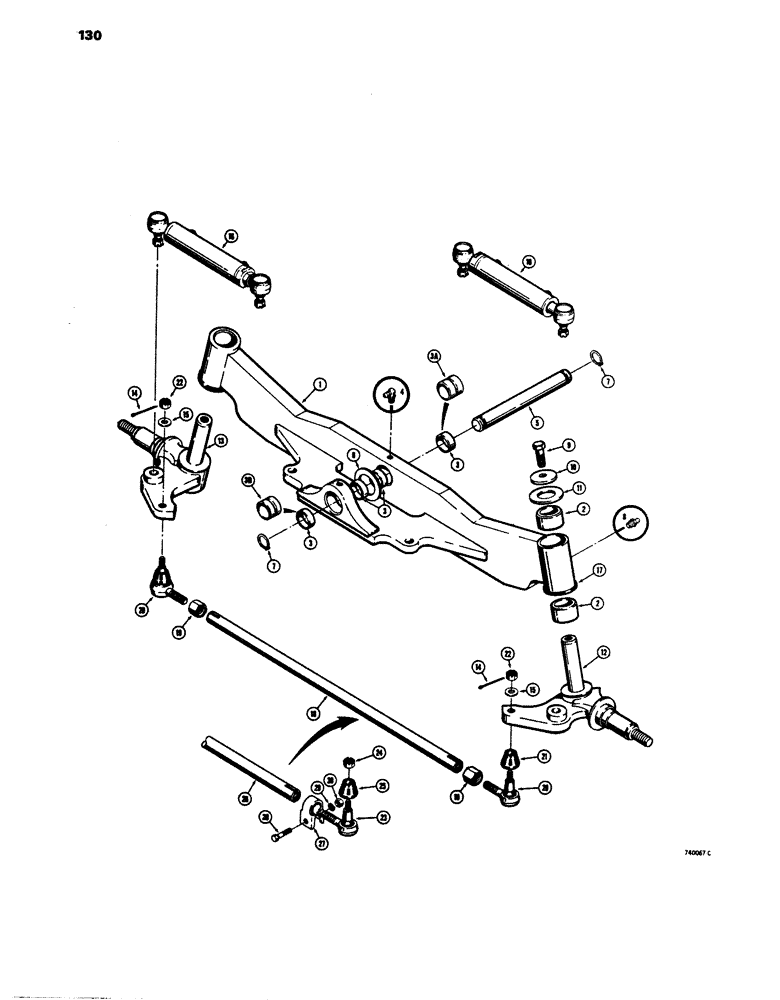

Запчасти Case 680E (130) - FRONT AXLE, SPINDLES AND TIE ROD, MODELS WITH NUT RETAINED (25) - FRONT AXLE SYSTEM

1

L71446

AXLE

ASSEMBLY - front steering, uses short bushings, see Ref. 3 for identification, Includes: Ref. 2 - 3B

1шт.

1

L73640

CENTER AXLE

AXLE ASSEMBLY - front steering, uses long bushings, see Refs. 3A and 3B for identifications, Includes: Ref. 2 - 3B

1шт.

2

L71756

BUSHING,61.98mm ID x 66.65mm OD x 38.1mm L

- steering arm pin

4шт.

3

L57710

BUSHING

- axle to chassis, short bushings, used in L71446 axle

4шт.

3a

L73643

BUSHING

- axle to chassis, long bushing, used in L73640 axle assembly

1шт.

3b

L73635

BUSHING

- axle to chassis, rear, long bushing, used in L73640 axle assembly

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

L57714

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

6

L11917

WASHER

SHIM -, Serial Range: axle-chassis

1шт.

7

D26919

SNAP RING,#200, Ext

RING snap, #200, Ext

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

9

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

10

A61406

WASHER

- steering arm pin

2шт.

11

L57457

SHIM

- steering arm pin, 2-9/32" (57.94 mm) I.D. x 2-1/2" (63.5 mm) O.D., if used

1шт.

11a

95-12

WASHER,3/4"

- flat, 3/16" (4.76 mm) I.D. x 2" (50.8 mm) O.D., used with L71370 and L71371 spindles, not shown

1шт.

12

L71370

ARM

SPINDLE AND KING PIN - steering, R.H., early production use L73883 spindle and king pin

1шт.

12

L73886

ARM

SPINDLE AND KING PIN - steering, R.H., late production

1шт.

13

L71371

ARM

SPINDLE AND KING PIN - steering, L.H., early production, use L73887 spindle and king pin

1шт.

13

L73887

SPINDLE

AND KING PIN - steering, L.H., late production

1шт.

15

195-45

WASHER,3/4"

2шт.

16

G34886

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, figure 128

2шт.

17

L71369

SHIM

- thrust, steering

1шт.

18

L54130

TUBE,1.25" OD x 49.4" L

- tie rod, 49.4" overall length, models with nut retaining ball joints to tube

1шт.

19

A41511

NUT

- jam, tie rod, models with nut retaining ball, Serial Range: joints-tube

2шт.

20

L13421

BALL

JOINT - tie rod to spindleIncludes: Ref. 21 and 22, models with nut retaining ball, Serial Range: joints-tube

2шт.

21

A41515

SEAL

- boot, ball joint, models with nut retaining ball, Serial Range: joints-tube

1шт.

22

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - nex., slotted, 5/8" - 18 NF, models with nut retaining ball joints to tube

1шт.

L70639

ROD

TIE ROD ASSEMBLY - front steering, Includes: Ref. 23 - 30, models with nut retaining ball, Serial Range: joints-tube

1шт.

D66470

BALL JOINT

BALLJOINT ASSEMBLY - tie rod to spindle, R.H., models with nut retaining ball, Serial Range: joints-tube

1шт.

D66467

ARTICULATION

BALLJOINT ASSEMBLY - tie rod to spindle, L.H., models with nut retaining ball, Serial Range: joints-tube

1шт.

23

NSS

NOT SOLD SEPARAT

BALLJOINT - tie rod, models with nut retaining ball, Serial Range: joints-tube

1шт.

24

129-610

SLOTTED NUT,5/8"-18, G5

Models with nut retaining ball joints to tube 5/8"-18, G5

1шт.

25

A31186

BOOT

SEAL - dust cover, models with nut retaining ball, Serial Range: joints-tube

1шт.

26

D66468

TUBE

- tie rod, 50.56" overall length, models with nut retaining ball, Serial Range: joints-tube

1шт.

27

A16638

CLAMP

- ball joint retaining, models with nut retaining ball, Serial Range: joints-tube

2шт.

28

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2", if used, models with nut retaining ball joints to tube

2шт.

28

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS - 1/2" - 13 NF x 2-1/2", plated, if used, models with nut retaining ball joints to tube

2шт.

29

92-8

LOCK WASHER,1/2"

if used, models with nut retaining ball joints to tube 1/2"

2шт.

30

25-118

NUT,1/2"-20, G5

- hex., 1/2" - 20 NF, if used, models with nut retaining ball joints to tube

2шт.

30

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex., lock, 1/2" - 13 NC, plated, if used, models with nut retaining ball joints to tube

2шт.

14

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

PIN split (Cotter), , Models with nut retaining ball joints to tube 1/8" x 2"

2шт.
