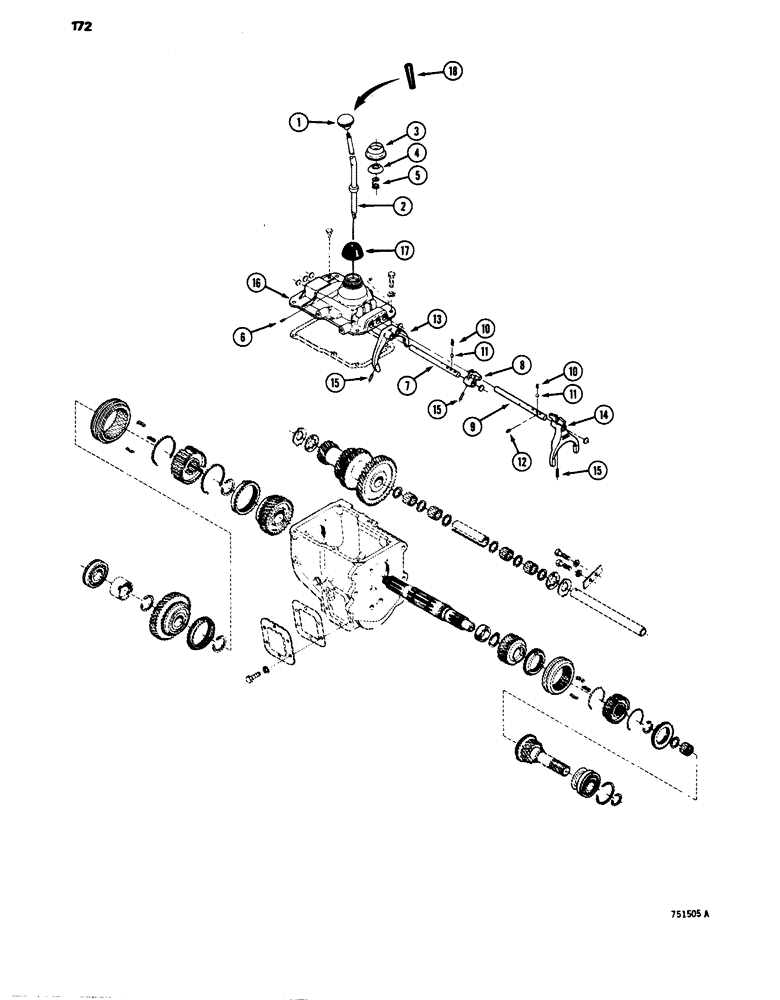

Запчасти Case 680E (172) - TRANSMISSION CONTROLS, FOUR SPEED SHIFTING PARTS (21) - TRANSMISSION

L54268

TRANSMISSION

ASSEMBLY - 4 speed, Includes: Ref. 1 - 17

1шт.

1

A26727

BALL

KNOB - shift lever

1шт.

2

D72860

LEVER

- shift control

1шт.

D72860 shift lever - Knob end has 3/8" thread.

1шт.

3

L33378

CYLINDER END CAP

CAP - control cover

1шт.

4

L33379

WASHER

- spring, control lever

1шт.

5

L33380

VALVE SPRING

SPRING - control lever

1шт.

6

L33375

ROLLER

PIN - control cover

1шт.

7

L33369

RAIL

- shift, first and second gears

1шт.

8

L33372

LEVER

END - shift rail, first and second gears

1шт.

9

L33368

RAIL

- shift, third and fourth gears

1шт.

10

L33373

VALVE SPRING

SPRING - poppet

2шт.

11

211-11

BALL,3/8" Dia

- steel, 3/6" (9.5 mm) dia.

2шт.

12

L33374

PLUNGER

- interlock

1шт.

13

L33371

FORK

- shifting, first and second gears

1шт.

14

L33370

FORK TEDDER

FORK - shifting, third and fourth gears

1шт.

15

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, (4.76 mm x 28.57 mm) 3/16" x 1 1/8", Slotted

3шт.

16

L33366

HOUSING

COVER - shift control, see figure 166 for related parts

1шт.

L33366 shift control cover - Part nbr

1шт.

D146775 gasket was added for service to neck where Ref. 17 boot fits to insure oil flow control.

1шт.

17

L33986

BOOT

- shift lever

1шт.

18

L58835

KNOB

- transmission shift, if used

1шт.
