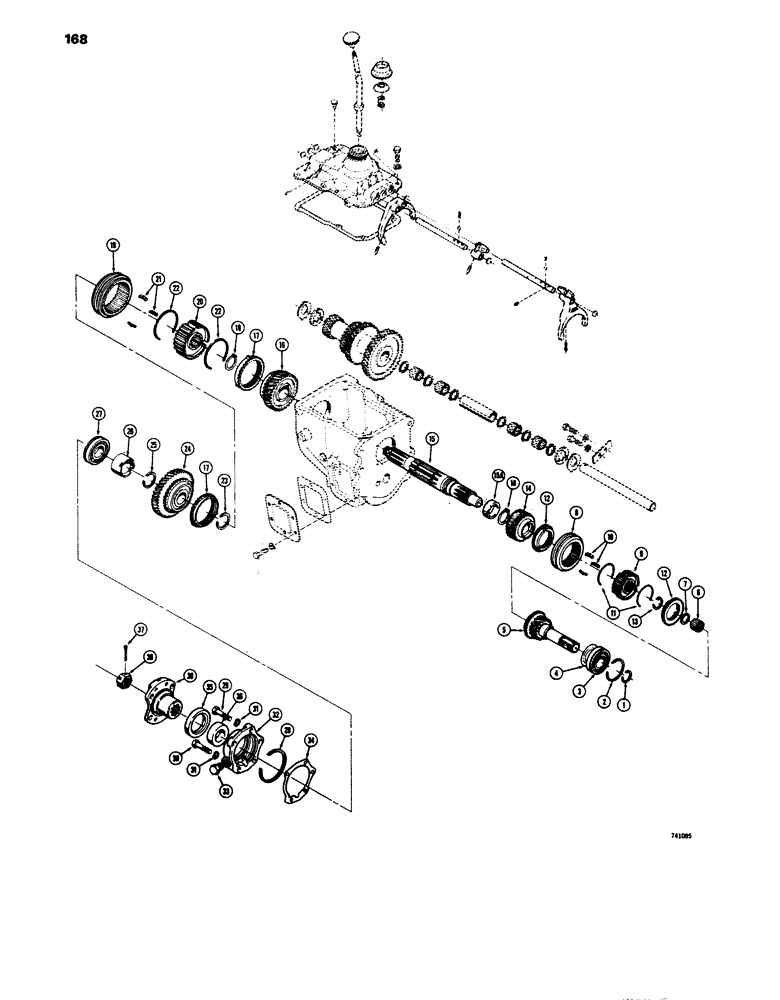

Запчасти Case 680E (168) - TRANSMISSION, MAIN SHAFT AND GEARS (21) - TRANSMISSION

L54268

TRANSMISSION

ASSEMBLY - 4-speed, Includes: Ref. 1 - 39

1шт.

1

L33360

RING

- retaining, main drive gear, color code-white

1шт.

1

L33361

RING, SNAP

RING - retaining, main drive gear, color code-blue

1шт.

1

L33362

RING, SNAP

RING - retaining, main drive gear, color code-orange

1шт.

1

L33363

RING, SNAP

RING - retaining, main drive gear, color code-green

1шт.

2

A14857

RING

- retaining, bearing retaining

1шт.

3

L33357

BALL BEARING,39.99mm ID x 90mm OD x 20mm W

BEARING - main drive gear

1шт.

4

L33358

PLATE

SLINGER - oil

1шт.

5

L33356

GEAR WHEEL

GEAR - main drive

1шт.

Service Bulletin 100-80 for solution to failure caused by oil transferring between the four speed and shuttle transmissions.

1шт.

L58427 cutting edge - This is a solid edge (no holes).

1шт.

6

R17820

AXLE PIN,4.76mm OD x 25.4mm L

BEARING - roller, main shaft

22шт.

7

L33352

WASHER

SPACER - bearing

1шт.

L33333

SYNCHRONIZER

ASSEMBLY - third and fourth gear, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE - synchronizer

1шт.

10

L33395

PLATE ASSY.

PLATE - shifting

3шт.

11

L33396

SPRING

- synchronizer

2шт.

12

L33336

RING

- blocking, synchronizer, third and fourth gears

2шт.

13

L33337

RING, SNAP

RING - retaining, Serial Range: synchronizer-shaft

1шт.

14

L33335

GEAR WHEEL

GEAR - third speed

1шт.

15

L33332

SHAFT

- main

1шт.

15a

L35314

WASHER

- thrust, main shaft, if used

1шт.

16

L33339

GEAR

- second speed

1шт.

17

L33343

RING, SNAP

RING - blocking, synchronizer, first and second gears

2шт.

18

L33338

RING

- retaining, Serial Range: synchronizer-shaft

1шт.

L33334

SYNCHRONIZER

ASSEMBLY - first and second gears, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - synchronizer

1шт.

21

L33397

PLATE ASSY.

PLATE - shifting

3шт.

22

L33398

VALVE SPRING

SPRING - synchronizer

2шт.

23

L33338

RING

- retaining, synchronizer, color code-steel

1шт.

23

L33340

RING, SNAP

RING - retaining, synchronizer, color code-white

1шт.

23

L33341

RING, SNAP

RING - retaining, synchronizer, color code-blue

1шт.

23

L33342

RING, SNAP

RING - retaining, synchronizer, color code-orange

1шт.

24

L33344

GEAR WHEEL

GEAR - first speed

1шт.

25

L33342

RING, SNAP

RING - retaining, gear to main shaft

1шт.

26

L33345

SPACER

- reverse gear

1шт.

27

L33346

BALL BEARING

BEARING - main shaft

1шт.

28

A14857

RING

- retaining, bearing

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

30

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

HHCS - 3/8" - 16 NC x 1-7/8"

1шт.

31

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

5шт.

32

L35603

RETAINER

- bearing, main shaft, uses Ref. 33

1шт.

32

D78405

RETAINER

- bearing, main shaft, does not use Ref. 33, not illustrated

1шт.

33

L33402

PLUG

- speedometer outlet

1шт.

34

L33364

GASKET

- bearing retainer

1шт.

35

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

OIL SEAL - main shaft

1шт.

36

L33347

SPACER

- speedometer gear

1шт.

38

L48339

NUT

- output shaft to campanion flange

1шт.

39

L48234

FLANGE

- companion

1шт.

37

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (3.17 mm x 43.9 mm) 1/8" x 1 3/4"

1шт.
